1605613 PHOENIX CONTACT - Technology Bsa

Notes	General: Connectors may be operated only when there is no load/voltage.
Mounting	Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required
Product properties	Type: B24 B48 Product type: Contact insert with a fixed no. of positions Number of positions: 24 Insulation characteristics Overvoltage category: III Degree of pollution: 3

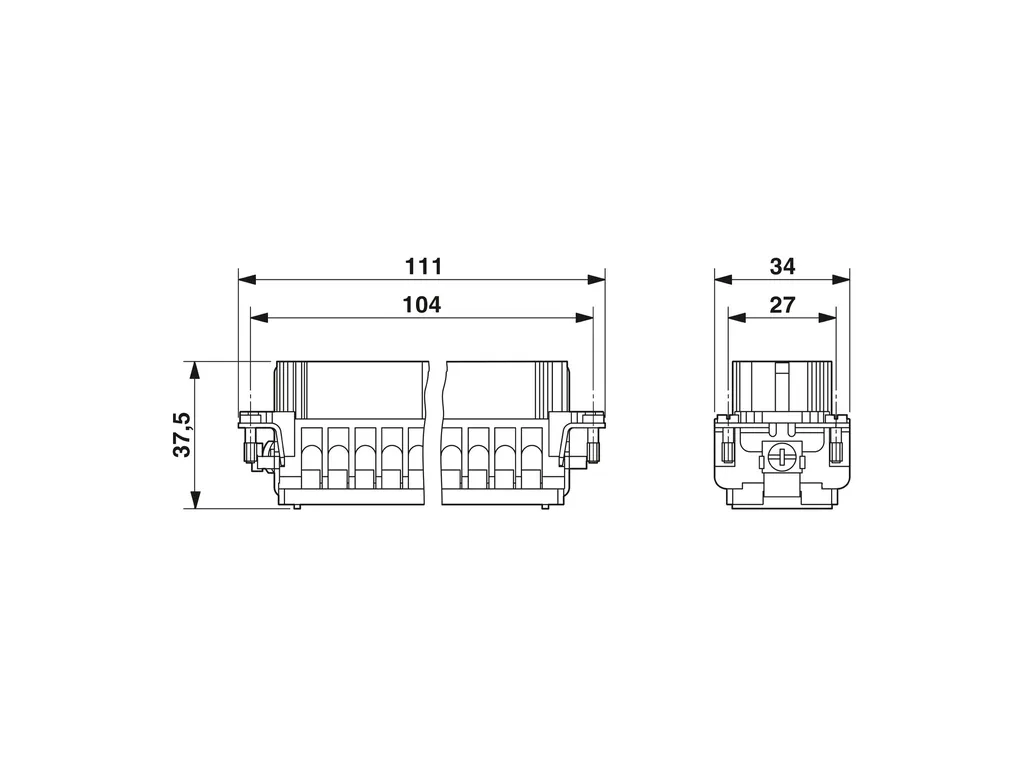

Dimensions	Mechanical characteristics Contact diameter: 2.5 mm
Connection data	Connection technology Connection technology: QUICKON connection Conductor connection Conductor cross section: 0.34 mm² ... 2.5 mm² (Litz wire structure VDE 0295, Class 1 - 5/litz wire diameter >= 0.2 mm) Connection cross section AWG: 22 ... 14 Tightening torque: 0.8 Nm ... 1.2 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Electrical properties	Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Material specifications	Flammability rating according to UL 94: V0
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C
