PHOENIX CONTACT 1601651
PHOENIX CONTACT 1601651
PHOENIX CONTACTNot available

RC-17P1NC241M2 - Device connector, rear mounting

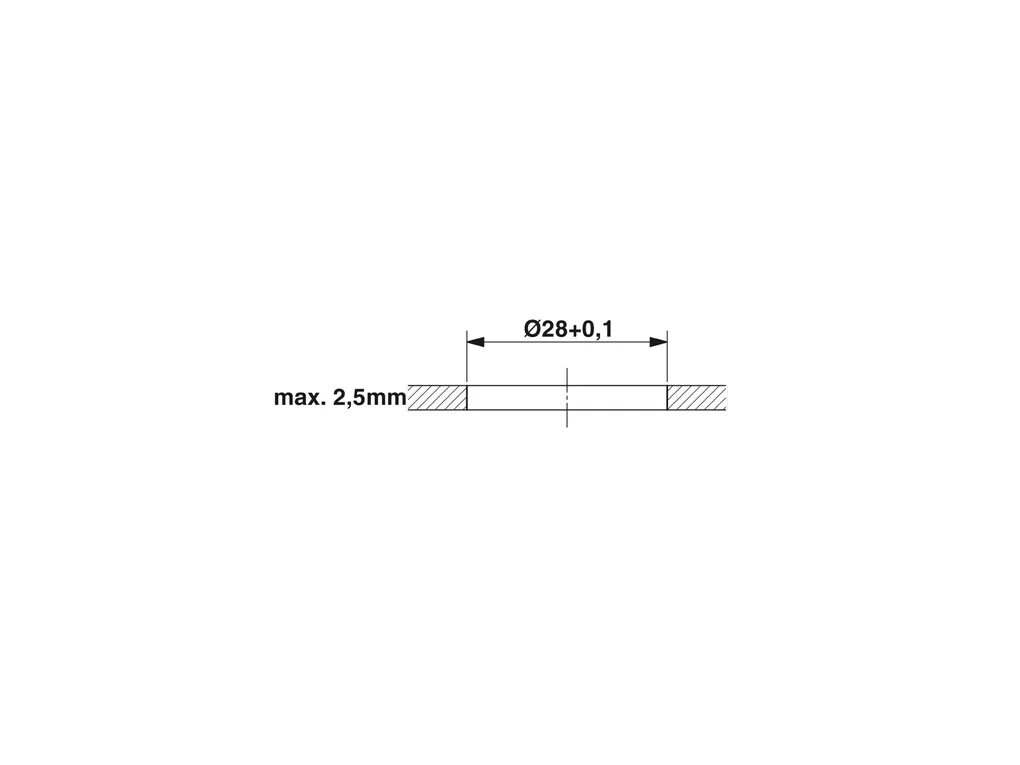

M23, Device connector, rear mounting, series: RC, straight, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Solder-in connection, Flat gasket, 4xM3, Panel thickness min.: 2.7 mm, Panel thickness max.: 3.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241383
Product Code: 1601651
Partner cod.: 1601651
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
MountingConnection method: Solder connection
Product propertiesProduct type: Circular connectors (device side)
Thread type: M23
Material specificationsFlammability rating according to UL 94: V0
Connection dataConductor connection
Connection method: Solder connection
ConnectorInsulating body
Coding: N
Insertion/withdrawal cycles: 50
Connection method: Solder-in connection
Contact switching type: Pin
Application: Signal
Number of positions: 17
Direction of rotation: Standard
Connection profile: 17
Contact diameter Power contacts: 1 mm
Rated current Power contacts: 8 A
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
