PHOENIX CONTACT 1597202
PHOENIX CONTACT 1597202
PHOENIX CONTACTNot available

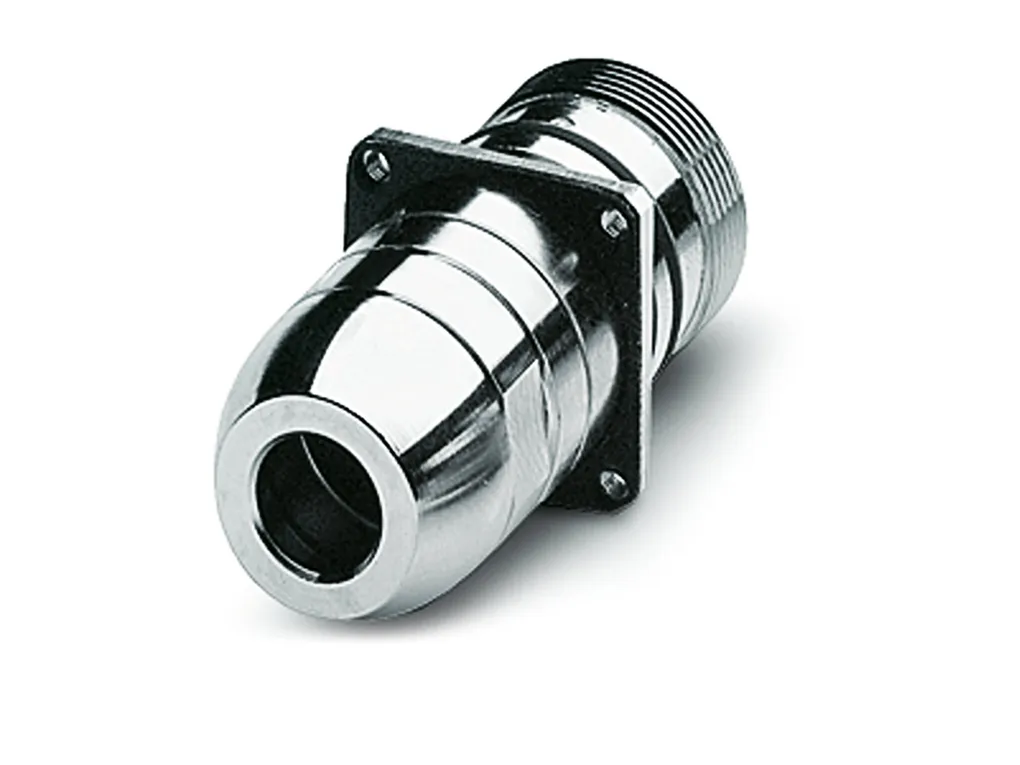

RC-12P1N12G500 - Rear panel feed-through

M23, Rear panel feed-through, series: RC, straight, shielded: no, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Solder cup, Axial O-ring, Central fixing, Panel thickness max.: 6.5 mm, cable diameter range: 6 mm ... 10 mm, coding: N
Product Code: 1597202
Partner cod.: 1597202
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesProduct type: Circular connector (cable-side)
ConnectorInsulating body
Coding: N
Insertion/withdrawal cycles: 100
Connection method: Solder cup
Contact switching type: Pin
Application: Signal
Number of positions: 12
Direction of rotation: Standard
Connection profile: 12
Contact diameter Power contacts: 1 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 8 A
Rated voltage: 48 VÂAC
74 VÂDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Order information:: Order contact inserts and cable clamping separately
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Seal
External cable diameter: 6 mm ... 10 mm
