| Notes | General: for HC-M-02, HC-M-03, HC-M-03/04, HC-M-04, HC-Q02, HC-Q03, HC-Q04, and HC-COM-Q4/2 contact carriers |
| Mounting | Assembly instructions: The quality of a crimp connection is determined by DIN EN 60352-2. Connection method: Crimp connection |

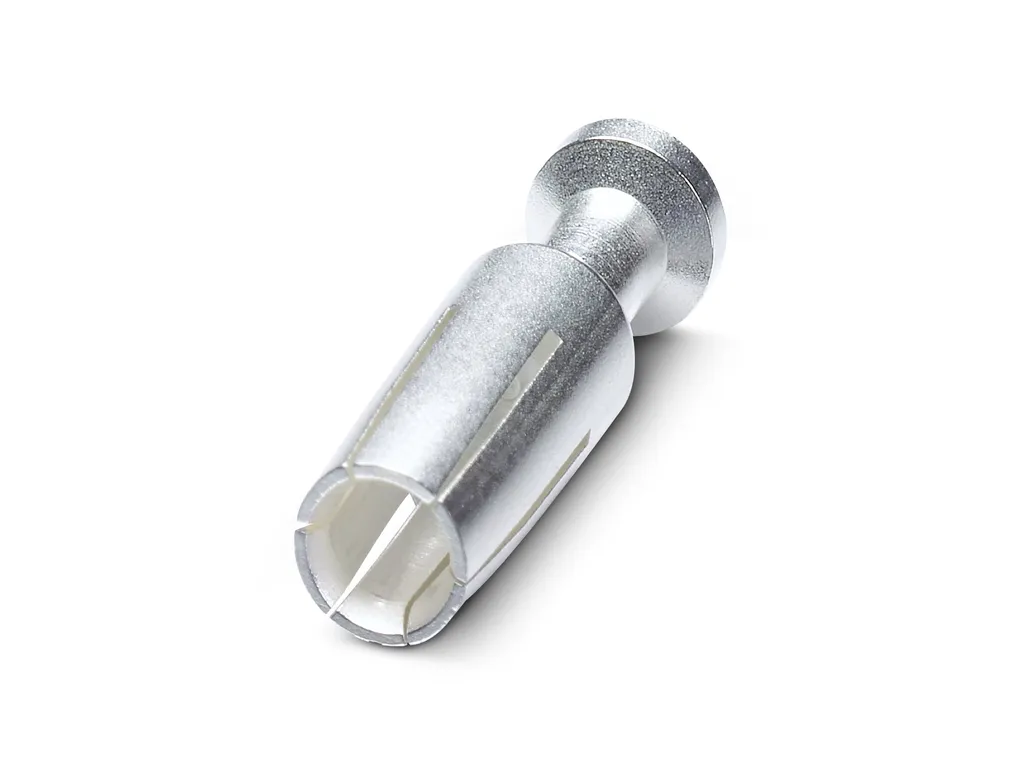

| Product properties | Product type: Crimp contact Type: Individual female contact Contact material type: turned Series: HC-M-03 HC-M-03/04 HC-M-04 HC-K HC-M-02 HC-HS |
| Connection data | Connection method: Crimp connection Contact connection type: Socket Connection technology: Crimp connection Conductor cross section: 10 mm² ... 10 mm² Connection cross section AWG: 8 Stripping length of the individual wire: 18 mm (For wire Ãà ââ°¥Ã6.4Ãmm) 15 mm (For wire Ãà ââ°¥Ã4.3Ãmm) Conductor cross section flexible: 10 mm² ... 10 mm² |
| Material specifications | Contact material: Copper alloy Contact surface material: silver-plated |

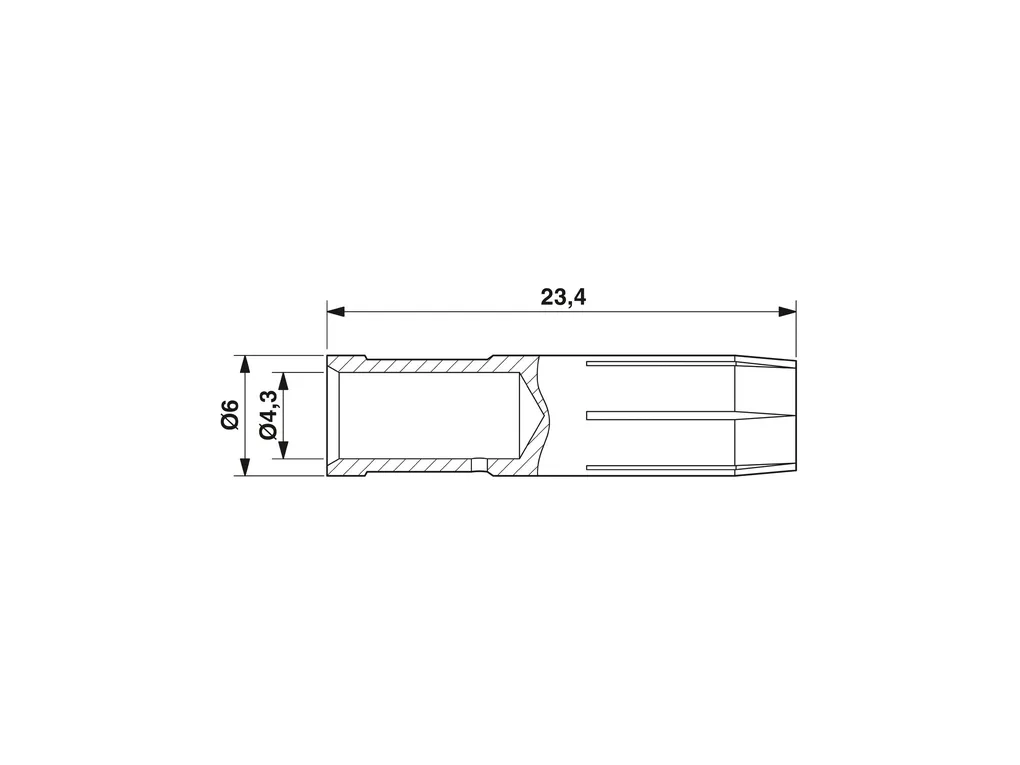

| Dimensions | Mechanical characteristics Contact diameter: 4 mm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 500 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
