PHOENIX CONTACT 1586141
PHOENIX CONTACT 1586141
PHOENIX CONTACTNot available

HC-B 24-ANDOCK - Docking frame

Docking frame for racks, for contact inserts of B24 type, with four M5 flat headed screws, rack balance x/y axis ± 1.5 mm
Product Code: 1586141
Partner cod.: 1586141
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesType: B24
Product type: Docking frame
Number of module slots: 6

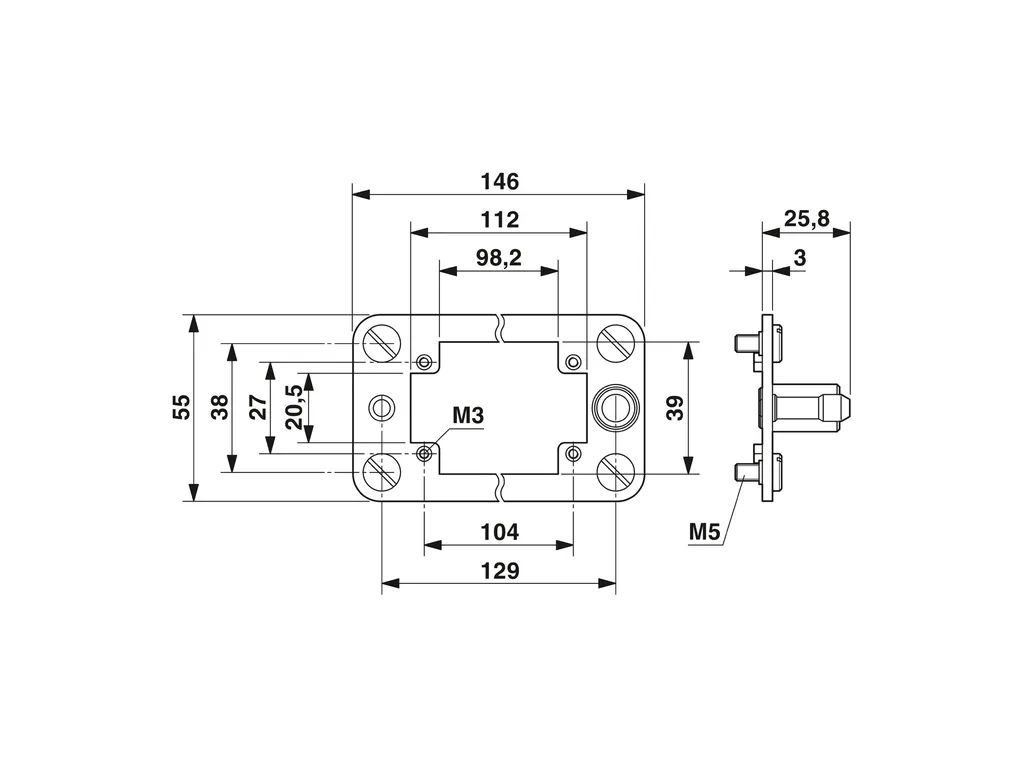

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/baeb9fa4301d954cb803f184c083e3e0/-S204x204-FJPG
Width: 55 mm
Height: 146 mm
Depth: 25.8 mm
Material specificationsMaterial: Stainless steel
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 500
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
MountingAssembly instructions: For contact inserts from series B24, D64, DD108, BB46, BBB64, K, M
