| Product properties | Product type: Data cable preassembled Sensor type: CANopenî Number of positions: 5 No. of cable outlets: 1 Shielded: yes Coding: B Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Interfaces | Bus system: CANopenî/DeviceNetâ⢠Signal type/category: CANopenî DeviceNetâ⢠|
| Signaling | Status display: no Status display present: No |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 V AC 60 V DC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Connector | Connection 1 Type: Plug straight M12 Number of positions: 5 Coding type: B (inverse) Connection 2 Type: Socket straight M12 Number of positions: 5 Coding type: B |

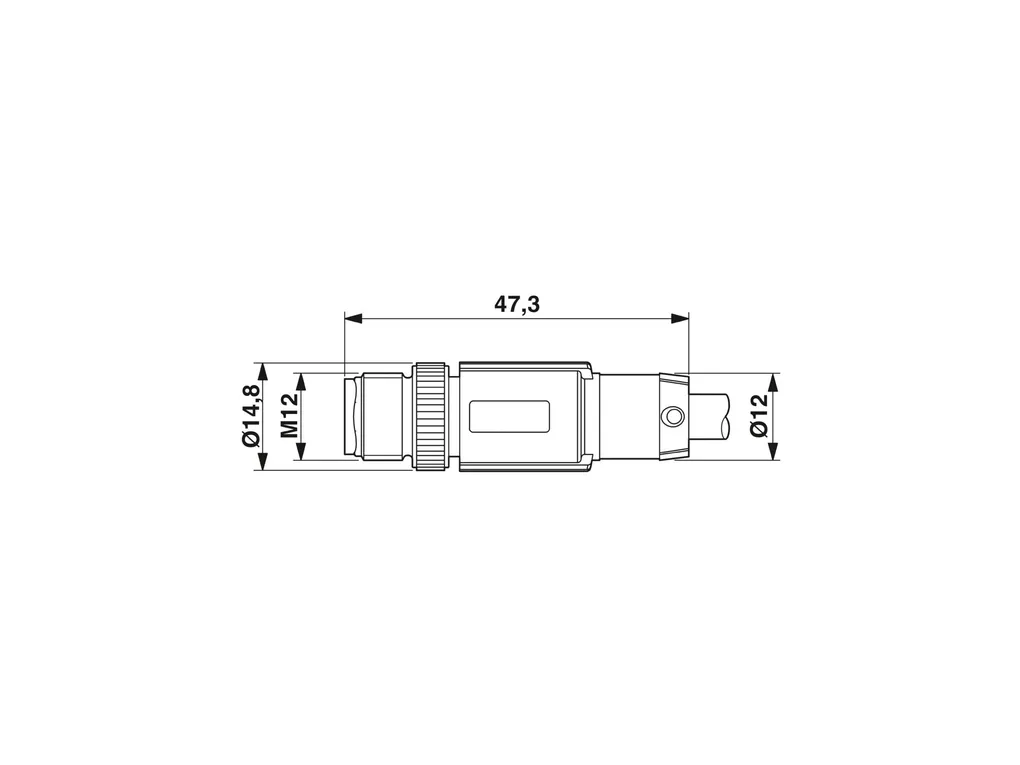

| Cable/line | Cable length: 1 m CANopenî/DeviceNetââ¢, PUR, violet [920] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9116/full/b1500?format=jpg Cable weight: 90 kg/km UL AWM Style: 21198 (80 °C/300 V) Number of positions: 4 Shielded: yes Cable type: CANopenî/DeviceNetââ¢, PUR, violet [920] Conductor structure: 2xAWG24/19+2xAWG22/19 Conductor structure signal line: 19x 0.13 mm AWG signal line: 24 Conductor cross section: 2x 0.25 mm² (Data cable) 2x 0.34 mm² (Power supply) 1x 0.34 mm² (Drain wire) Wire diameter incl. insulation: 1.95 mm ñ0.05 mm (Data cable) 1.4 mm ñ0.05 mm (Power supply) External cable diameter: 6.70 mm ñ0.3 mm Outer sheath, material: PUR External sheath, color: red lilac RAL 4001 Conductor material: Tin-plated Cu litz wires Material wire insulation: Foamed PE (Data cable) PE (Power supply) Single wire, color: red-black, blue-white Twisted pairs: 2 cores to the pair Type of pair shielding: Plastic-coated aluminum foil, aluminum side outside Overall twist: 2 pairs around a drain wire in the center to the core Optical shield covering: 80 % Insulation resistance: ââ°¥ 5 Gé*km (Data cable) ââ°¥ 5 Gé*km (Power supply) Loop resistance: ââ°¤ 181.80 é/km (Data cable) ââ°¤ 114.80 é/km (Power supply) Wave impedance: 120 é ñ10 % (with 1 MHz) Cable capacity: nom. 40 nF/km (Data cable) Nominal voltage, cable: ââ°¤ 300 V (Peak value, not for high-power applications) Test voltage Core/Core: 2000 V (50 Hz, 1 min.) Test voltage Core/Shield: 2000.00 V (50 Hz, 1 min.) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 34 mm Smallest bending radius, movable installation: 67 mm Dynamic load capacity (bending): Max. bending cycles: 5000000, Bending radius: 70 mm, Bending radius: 10 x D, Traversing path: 4.5 m, Traversing rate: 3 m/s, Acceleration: 3 m/s², Ambient temperature: -20 °C ... 60 °C Shield attenuation: ââ°¤ 22.9 dB/km (with 1 MHz) ââ°¤ 16.4 dB/km (At 500 kHz) ââ°¤ 9.5 dB/km (At 125 kHz) Halogen-free: in accordance with DIN VDE 0472 part 815 according to IEC 60754-1 Flame resistance: IEC 60332-1-2 in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01) Other resistance: Low adhesion Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation) -30 °C ... 70 °C (Cable, flexible installation) -20 °C ... 60 °C (for installation) -20 °C ... 60 °C (cable, drag chain applications) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket) -40 °C ... 80 °C (cable, fixed installation) -20 °C ... 75 °C (Cable, flexible installation) |
