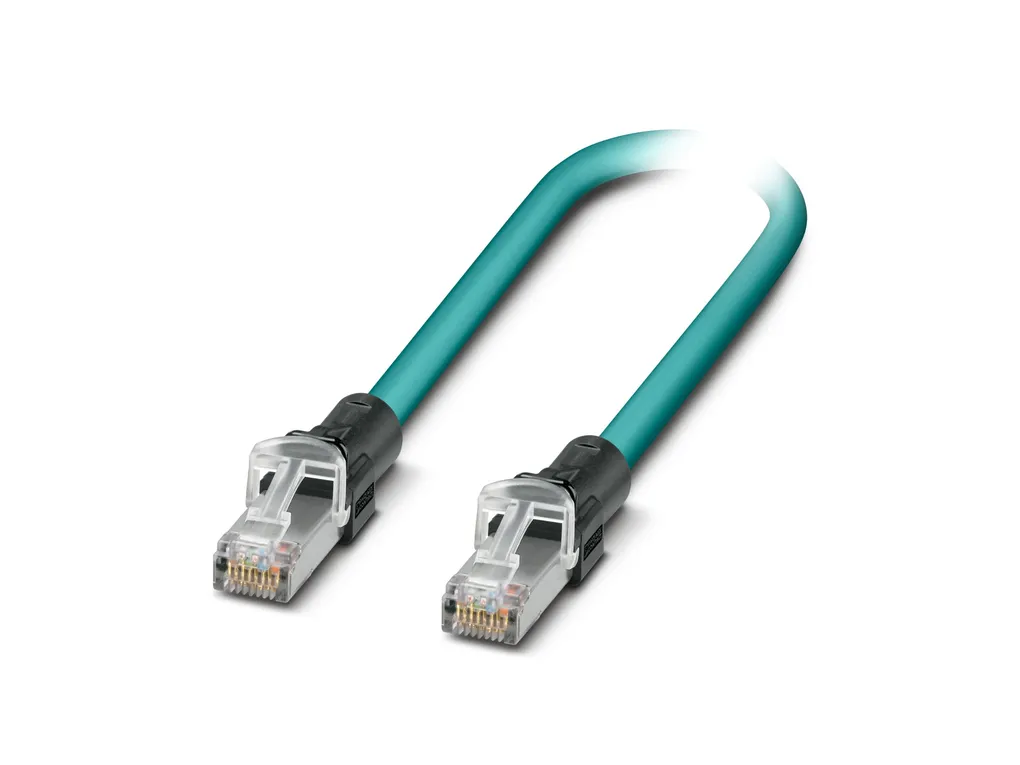

| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 Data management status Article revision: 01 Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Signaling | Status display: no |
| Electrical properties | Contact resistance: < 20 mé Transmission characteristics (category): CAT6A Transmission speed: 10 Gbps |
| Mechanical properties | Mechanical data Insertion force per signal contact: 50.00 N Extraction force per signal contact: 30 N |
| Material specifications | Housing material: PP Contact material: CuSn6 Contact surface material: Ni/Au Contact carrier material: PC |
| Dimensions | Width: 13.8 mm Height: 14.8 mm Length: 44.2 mm |
| Connection data | Connection technology Connection method: Pierce connection Conductor connection Connection method: Pierce connection |
| Connector | Connection 1 Type: Plug straight RJ45 Shielded: yes Handle color: black Insertion/withdrawal cycles: ââ°¥ 750 Degree of protection: IP20 Connection 2 Type: Plug straight RJ45 Shielded: yes Handle color: black Insertion/withdrawal cycles: ââ°¥ 750 Degree of protection: IP20 |
| Cable/line | Ethernet 10 Gbit [94F] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/10420/full/b1500?format=jpg Shielded: yes UL AWM Style: 20963 (80 °C/30 V) Cable weight: 42 kg/km Cable type: Ethernet 10 Gbit Short symbol: 02YSC11Y Cable type (abbreviation): 94F Signal type/category: Ethernet CAT6A, 10 Gbps Cable structure: 4x2xAWG26/7; S/FTP External cable diameter: 6.40 mm ñ0.2 mm Outer sheath, material: PUR External sheath, color: water blue RAL 5021 Thickness, outer sheath: 0.65 mm Conductor material: Bare Cu litz wires Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 4x 2x 0.14 mm² Material wire insulation: Foamed PE Wire diameter incl. insulation: 1.04 mm Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Twisted pairs: 2 cores to the pair Type of pair shielding: Aluminum-lined foil Overall twist: 4 pairs for core Shielding: Tinned copper braided shield Optical shield covering: 70 % Nominal voltage, cable: ââ°¤ 100 V Test voltage Core/Core: 700 V (50 Hz, 1 min.) Test voltage Core/Shield: 700.00 V (50 Hz, 1 min.) Cable insulation resistance: ââ°¥ 500 Mé*km Wave impedance: 100 é ñ5 é (at 100 MHz) Loop resistance: ââ°¤ 290.00 é/km Cable capacity: 47 nF/km Signal runtime: 5.13 ns/m Tensile strength: ââ°¤ 100 N Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Near end crosstalk attenuation (NEXT): 75.3 dB (with 1 MHz) 66.3 dB (at 4 Ãà Hz) 61.8 dB (at 8 Ãà Hz) 60.3 dB (at 10 MHz) 57.2 dB (at 16 MHz) 55.8 dB (at 20 Ãà Hz) 54.3 dB (at 25 MHz) 52.8 dB (at 31.25 Ãà Hz) 48.4 dB (at 62.5 Ãà Hz) 45.3 dB (at 100 MHz) 40.8 dB (at 200 MHz) 39.3 dB (at 250 MHz) 38.1 dB (at 300 MHz) 38.1 dB (at 400 MHz) 38.1 dB (at 500 MHz) Power-summated near end crosstalk attenuation (PSNEXT): 72.3 dB (with 1 MHz) 63.3 dB (at 4 Ãà Hz) 58.8 dB (at 8 Ãà Hz) 57.3 dB (at 10 MHz) 54.2 dB (at 16 MHz) 52.8 dB (at 20 Ãà Hz) 51.3 dB (at 25 MHz) 49.9 dB (at 31.25 Ãà Hz) 45.4 dB (at 62.5 Ãà Hz) 42.3 dB (at 100 MHz) 37.8 dB (at 200 MHz) 36.3 dB (at 250 MHz) 35.1 dB (at 300 MHz) 33.3 dB (at 400 MHz) 31.8 dB (at 500 MHz) Return attenuation (RL): 20 dB (with 1 MHz) 23 dB (at 4 Ãà Hz) 24.5 dB (at 8 Ãà Hz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20 Ãà Hz) 24.2 dB (at 25 MHz) 23.3 dB (at 31.25 Ãà Hz) 20.7 dB (at 62.5 Ãà Hz) 19 dB (at 100 MHz) 16.4 dB (at 200 MHz) 15.6 dB (at 250 MHz) 15.6 dB (at 300 MHz) 15.6 dB (at 400 MHz) 15.6 dB (at 500 MHz) Shield attenuation: ââ°¥ 80.00 dB (at 30 ... 100 MHz) Halogen-free: according to IEC 60754-1 Resistance to oil: in accordance with DIN EN 60811-2-1 Flame resistance: according to IEC 60332-1-2 in accordance with UN ECE-R 118.03 Ambient temperature (operation): -20 °C ... 80 °C (Cable, flexible installation) -40 °C ... 80 °C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40 °C ... 85 °C (RJ45 connector) |
| Standards and regulations | Standards/specifications: IEC 60603-7 |
