1453451 PHOENIX CONTACT - Technology Bsa

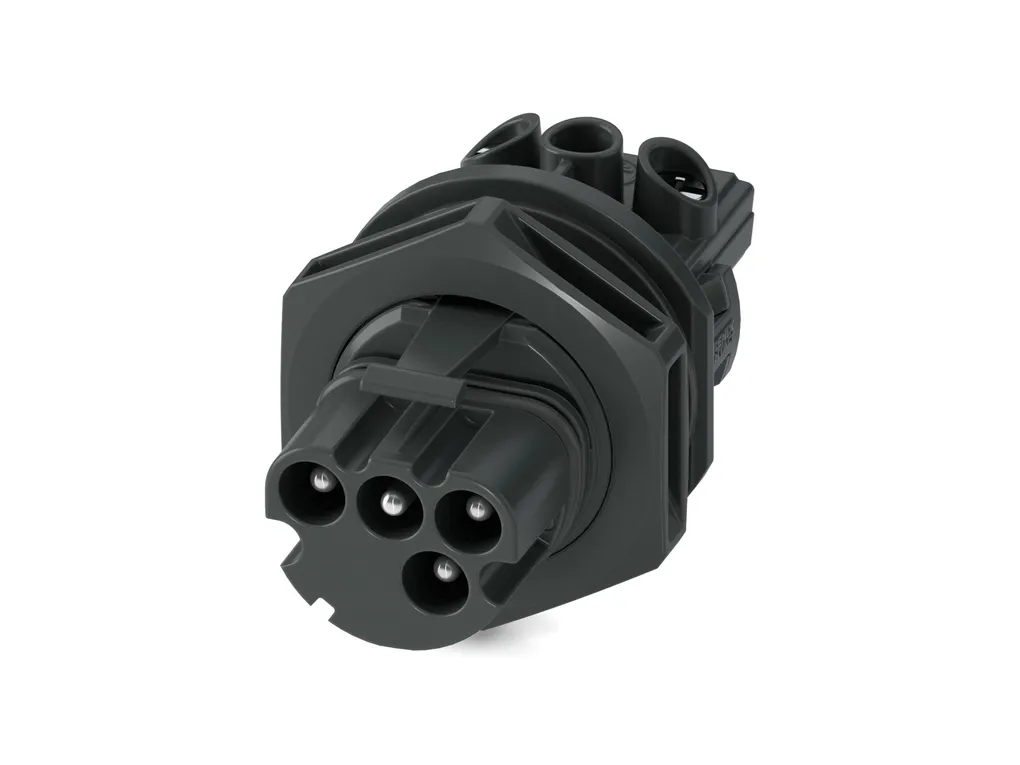

CBC-PRC 3-FT25-MS6 800V - Panel feed-through

Panel feed-through, Range of articles: ArcZero, color: black, number of positions: 3, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 800 VDC, rated current: 20 A, Connection method: Screw connection, Contact connection type: Pin, Maximum load when disconnecting: 16 kW, scope: DC-Grids

Product Code: 1453451 Copia - Copy

Partner cod.: 1453451 Copia - Copy

PHOENIX CONTACT

Notes	Note on application: Maximum load when disconnecting: 16 kW (6.7 ÃµF/5 mH) Maximum load when connecting: 2 kW (6.7 ÃµF/5 mH) Observe the specifications of the packing slip. Notes on safety: Fit the protective cap when not plugged in.
Product properties	Product type: Installation connector Product family: ArcZero Area of application: DC-Grids Number of positions: 3 Data management status Article revision: 02 Insulation characteristics Protection class: II (plastic housing)
Electrical properties	Nominal voltage ATD: 800 VDC (III/2.00) in accordance with IEC 61984 250 VDC Minimum system voltage 500 VDC (III/2.00) in accordance with IEC 61535 600 VDC (III/2.00) in accordance with UL 2238 / UL 2237 Rated current: 20 A (With 2.5 mm² conductor cross section in accordance with IEC 61984)

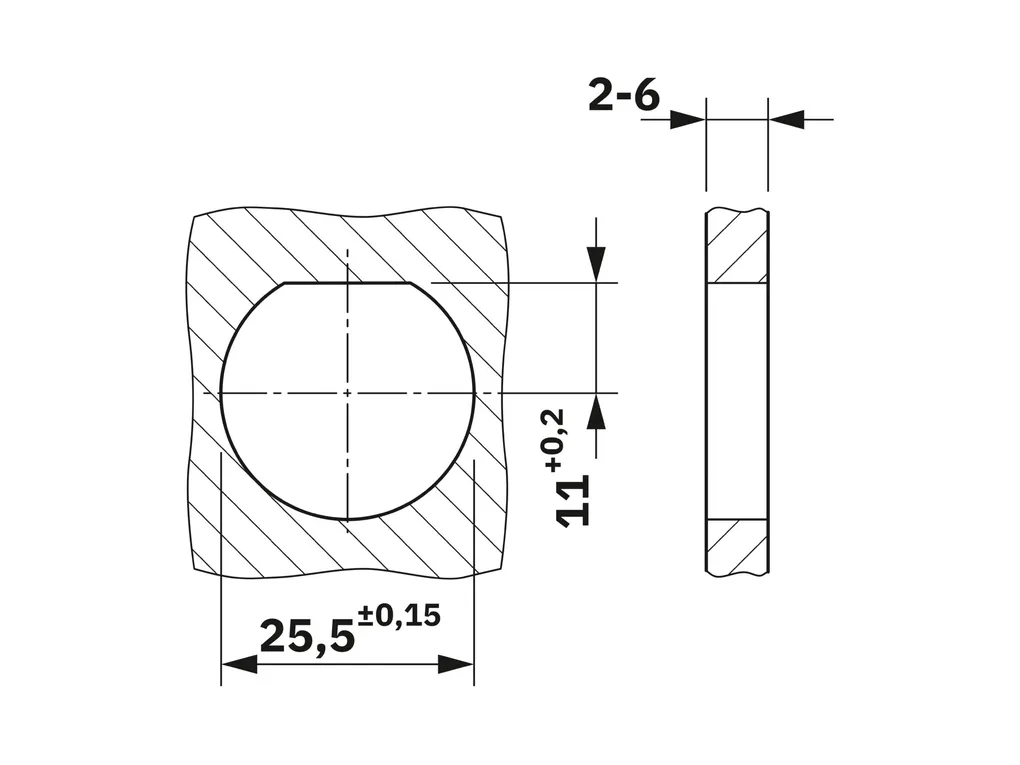

Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/161712/full/b1500?format=jpg Width: 35 mm Height: 35 mm Length: 72.6 mm
Material specifications	Color: black
Cable/line	Single wire, cross section: 1.5 mm² 6 mm² Stripping length of the individual wire: 13 mm Halogen-free: yes
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 500 (under rated load)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2 m / 2 h) IP69 Ambient temperature (operation): -40 °C ... 105 °C (observe derating) Ambient temperature (storage/transport): -40 °C ... 105 °C Ambient temperature (assembly): -20 °C ... 60 °C
Standards and regulations	Standards/specifications: IEC 61984 IEC TS 62735-1
Mounting	Mounting type: Rear mounting Thread type: M25 x 1,5 ()
