| Product properties | Type: D50 Product type: Housing with locking latch Product family: HC-STA-D Application: Standard No. of cable outlets: 2 Type of the screw connection: 2x M32 Housing type: Box mounting bases Cable outlet: lateral Pg screw connection: none |

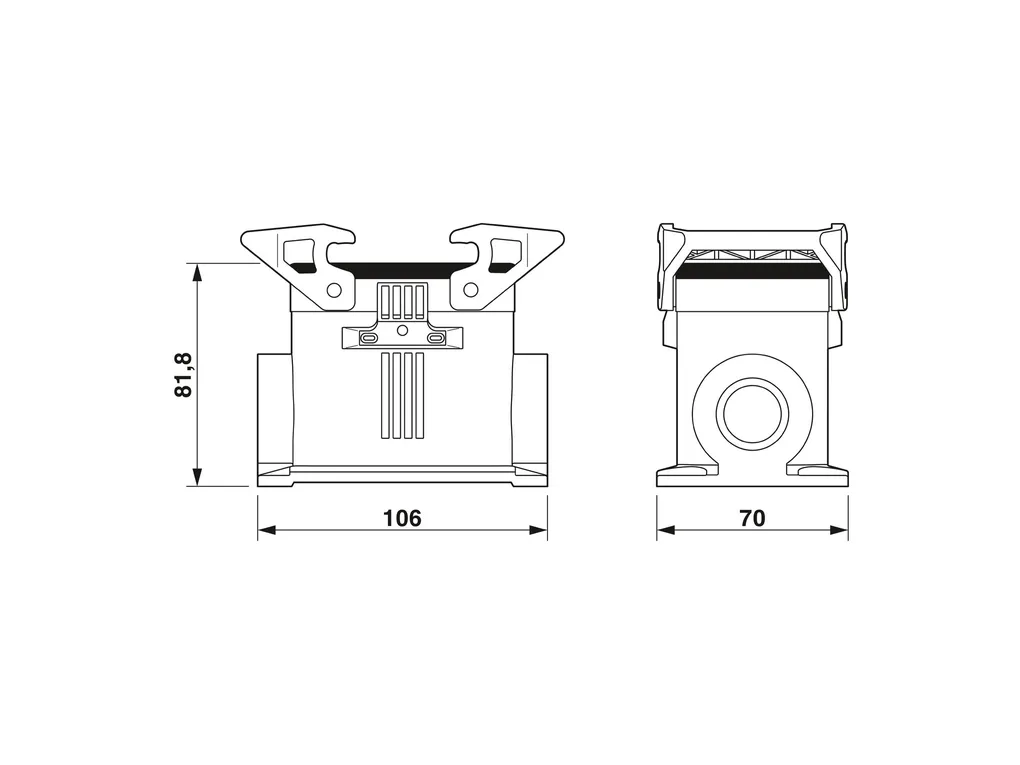

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f361131a2cae0b40ae9a80b53048e365/-S204x204-FJPG Width: 70 mm Height: 82 mm Length: 106 mm Hole diameter: 5.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) Seal material: NBR, conductive Housing surface material: uncoated Locking latch material: PA Impact strength: IK08 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Type of the screw connection: 2x M32 Locking type: Latch |
| Mounting | Assembly instructions: One opening is sealed with a plastic filler plug and can be opened using a screwdriver. |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
