| Product properties | Type: D50 Product type: Housing with locking latch Application: Standard Housing type: Panel mounting base Pg screw connection: none |

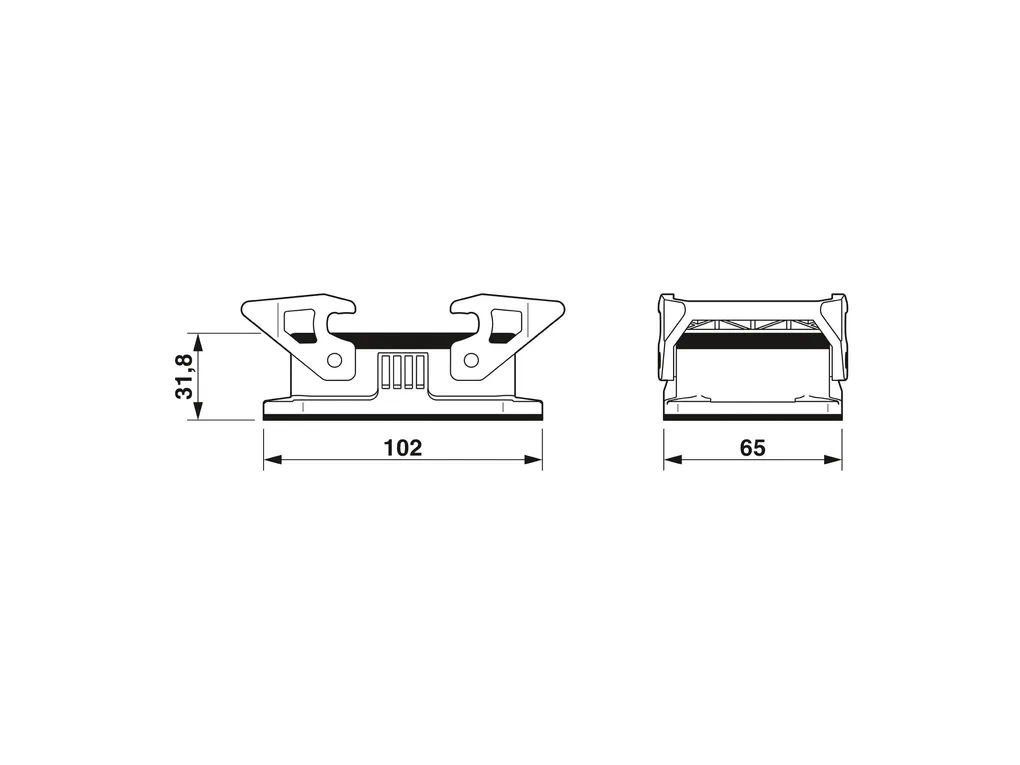

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0644315cd5a1b54ea976f49c979230be/-S204x204-FJPG Width: 65 mm Height: 32 mm Length: 102 mm Drill hole distance, horizontal: 92 mm Drill hole distance, vertical: 42 mm Hole diameter: 4.4 mm Installation dimensions Width of the assembly cutout: 48 mm Length of the assembly cutout: 73 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) Seal material: NBR, conductive Housing surface material: uncoated Locking latch material: PA Impact strength: IK08 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Locking type: Latch |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
