| Notes | General: For contact inserts HC-D25, A16 |

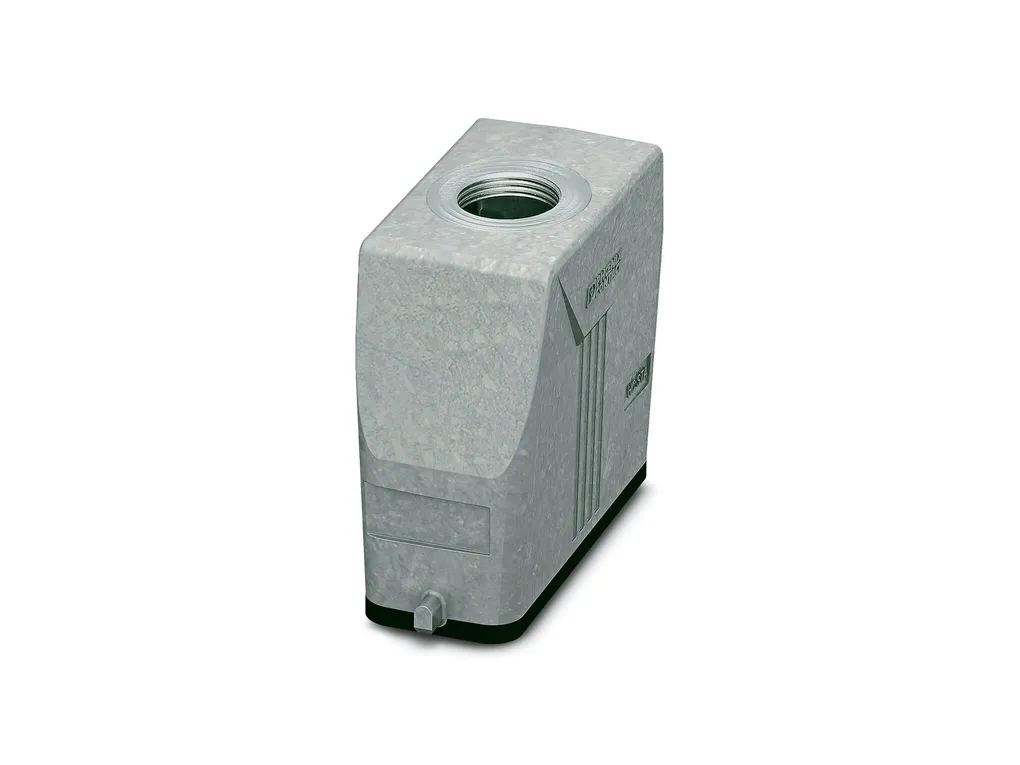

| Product properties | Type: D25 Product type: Housing with locking latch Product family: HC-STA-D Application: Standard No. of cable outlets: 1 Type of the screw connection: 1x Pg16 Housing type: Sleeve housing Cable outlet: straight Pg screw connection: none |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0727616ed03b1f4e9cb119539d96a05d/-S204x204-FJPG Width: 30 mm Height: 72 mm Length: 80 mm |
| Material specifications | Seal material: NBR, conductive Housing surface material: uncoated Impact strength: IK08 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Type of the screw connection: 1x Pg16 Locking type: Pin |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
