1423019 PHOENIX CONTACT - Technology Bsa

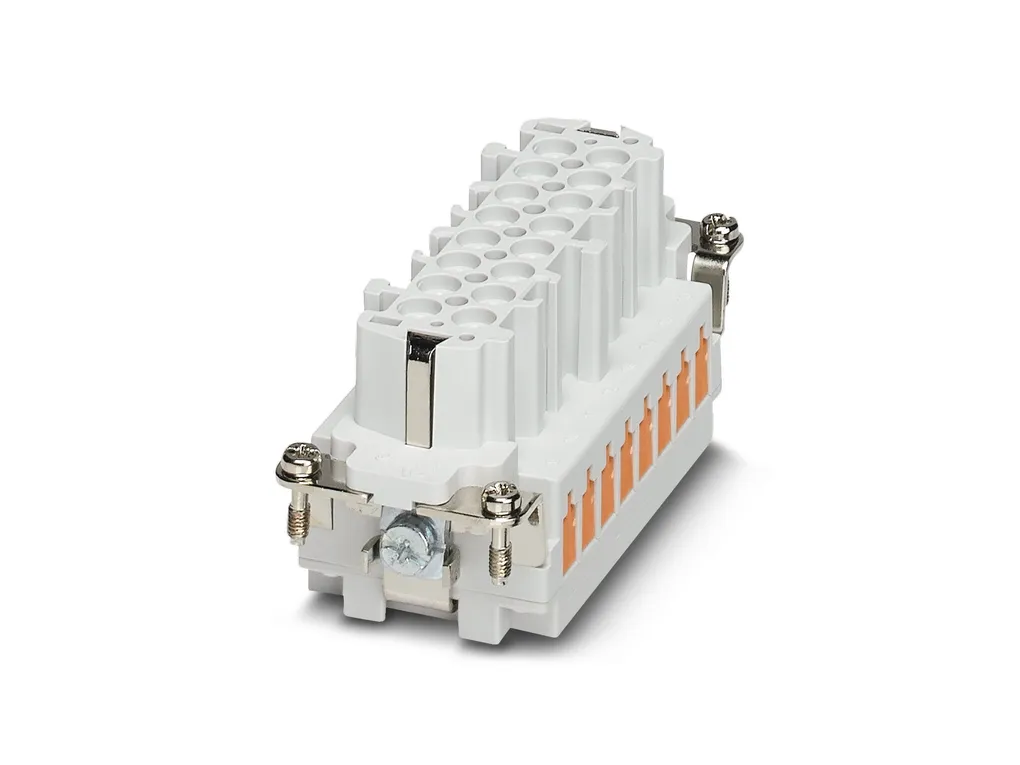

HC-B16-I-TPT-M - Contact insert

Contact insert, number of positions: 16+PE, size: B16, number of connections per position: 2, Pin, Push-in connection, 500 V, 16 A, 0.25 mm²...1.5 mm², application: Power

Product Code: 1423019 Copia - Copy

Partner cod.: 1423019 Copia - Copy

PHOENIX CONTACT

Notes	General: Use only flexible conductors with ferrule (in conjunction with CRIMPFOX 6 only) Connectors may be operated only when there is no load/voltage.
Mounting	Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required Connection method: Push-in connection

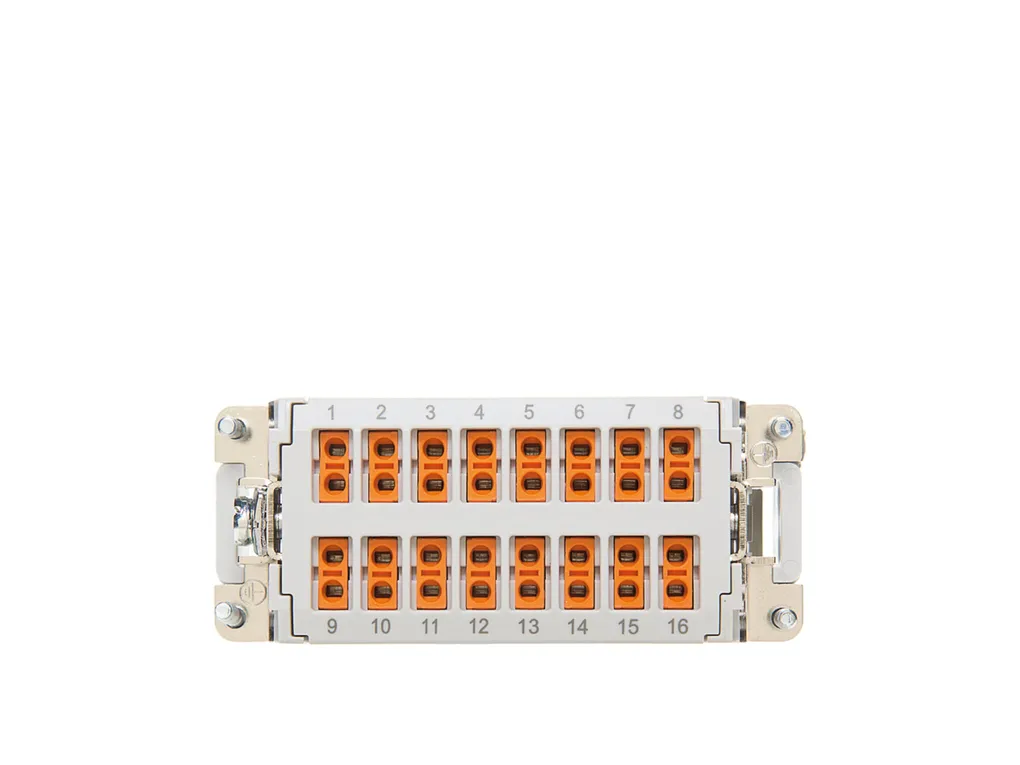

Product properties	Type: B16 B32 Product type: Contact insert with a fixed no. of positions Number of positions: 16 Connection profile: 16+PE Contact numbering: 1 - 16 Application: Power Number of connections per position: 2 Series: HC-B Insulation characteristics Overvoltage category: III Degree of pollution: 3
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e4e1f20ec2821a4d8399171c49db0cb0/-S204x204-FJPG Width: 34 mm Height: 34.6 mm Length: 84 mm Drill hole distance, horizontal: 77.5 mm Mechanical characteristics Contact diameter: 2.5 mm
Connection data	Connection technology Connection technology: Push-in connection Number of connections per position: 2 Conductor connection Conductor cross section: 0.25 mm² ... 1.5 mm² Connection cross section AWG: 24 ... 16 Tightening torque: 0.8 Nm ... 1.2 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 8 mm Ã±1Ãmm
Electrical properties	Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Material specifications	Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C
Standards and regulations	Constructional and testing regulations: DINÃENÃ61984 DINÃENÃ60664 IEC 60352 Tests: DINÃENÃ61984 DINÃENÃ60664 IEC 60352 Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
