| Notes | General: Use the patch cable from the accessories list. Connectors may be operated only when there is no load/voltage. |

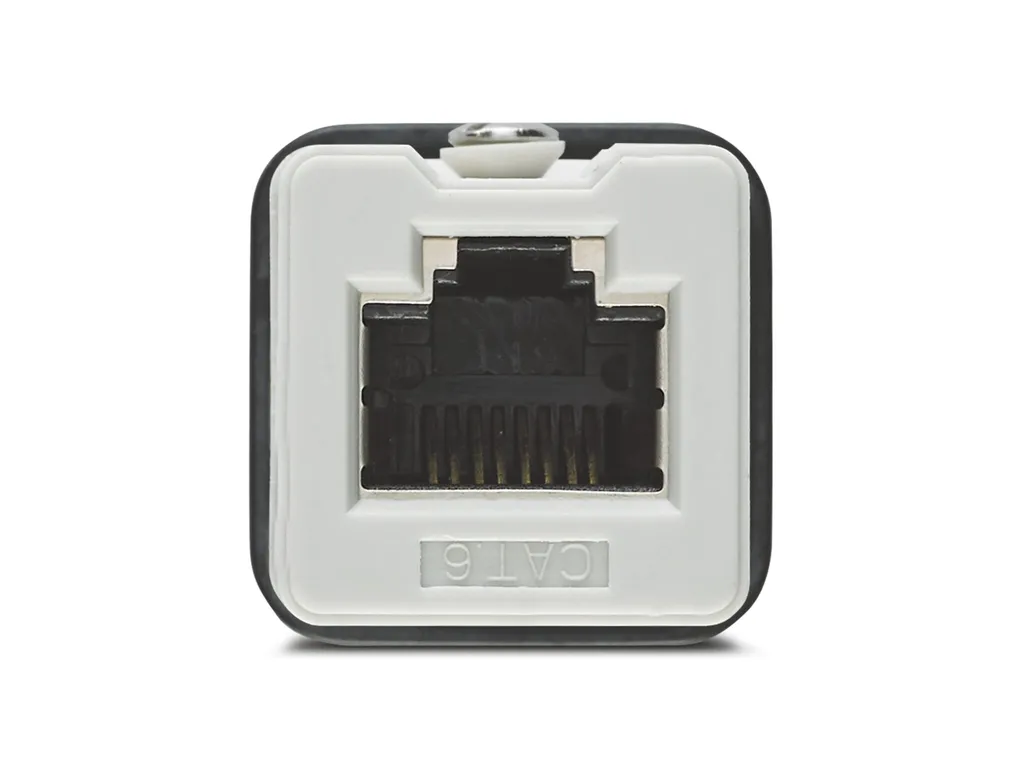

| Product properties | Type: D7 RJ45 Product type: Contact insert with a fixed no. of positions Sensor type: Ethernet Number of positions: 8 Connection profile: RJ45 Application: Data Series: HC-Q Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/69b08a086e08a0468be73a4df4748abb/-S204x204-FJPG Width: 21 mm Height: 39 mm Length: 21 mm |
| Connection data | Connection technology Connection in acc. with standard: IEC / EN Conductor connection Tightening torque: 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| Electrical properties | Rated voltage (III/3): 50 V Rated surge voltage: 0.8 kV Rated current: 1 A Insulation resistance: 100 Mé Nominal voltage UN: 50 V Transmission characteristics (category): CAT6A |
| Material specifications | Material: PA 6.6 Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Au Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3) |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 70°C |
| Standards and regulations | Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3) |
