PHOENIX CONTACT 1419273
PHOENIX CONTACT 1419273
PHOENIX CONTACTNot available

HC-STA-D07-BCSFS-PL-BK - Protective cover

Protective cover D7, for single locking latch, material: PA, protective cover material: PA, height: 30 mm, seal: no, Standard, with lanyard, for pin inserts
Product Code: 1419273
Partner cod.: 1419273
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
NotesGeneral: For use on the panel mounting base
Product propertiesType: D7
for supporting base element with single locking latch
Product type: Protective cover
Application: Standard
Housing type: Protective cover
Seal present: no

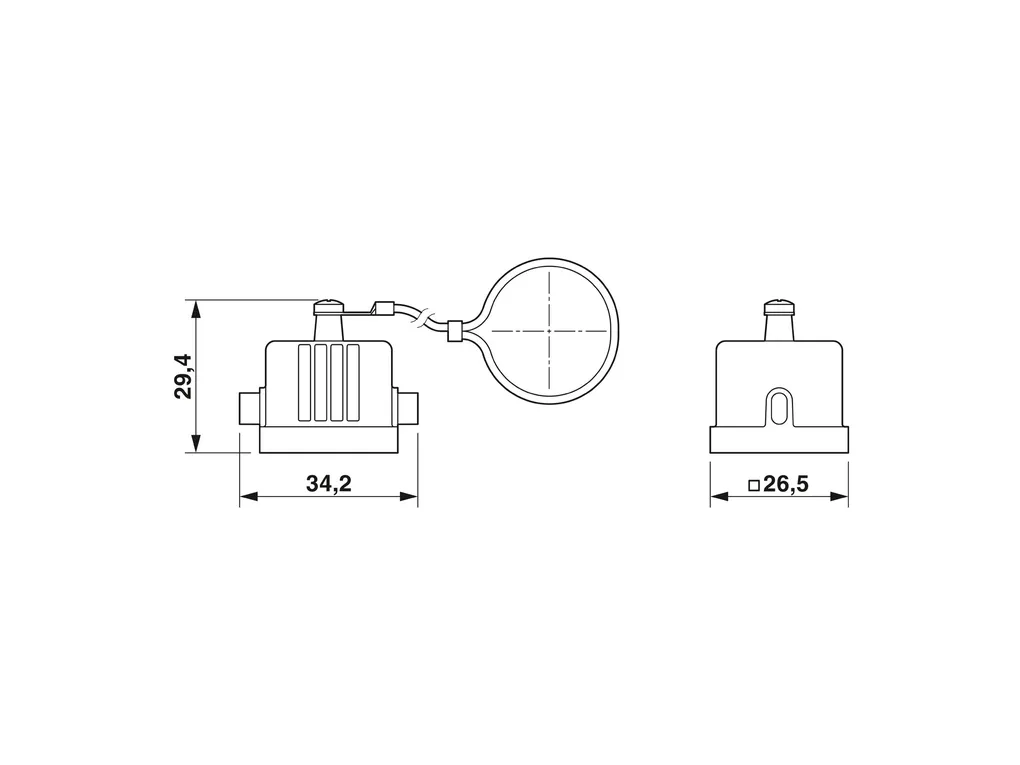

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/50b5aa51ea0e6548819f171ba6582cad/-S204x204-FJPG
Width: 26.5 mm
Height: 30 mm
Length: 26.5 mm
Diameter: 4.2 mm
Material specificationsMaterial: PA
Flammability rating according to UL 94: V0 (Polyamide housing)
Material, protective cover: PA
Housing material: PA
Mechanical propertiesMechanical data
Locking type: Pin
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP54
IP65
Ambient temperature (operation): -20°C ... 100°C
MountingAssembly instructions: Plastic protective cover for short-term protection
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00354.pdf

Technical_drawing_14539.pdf
