| Notes | General: for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |

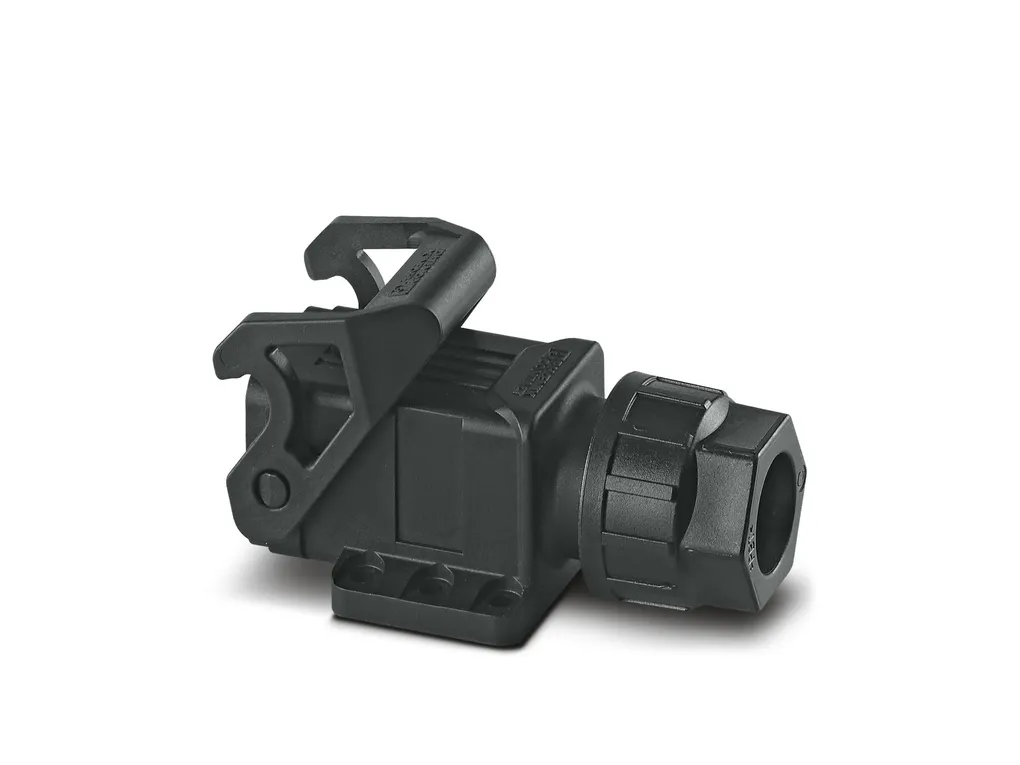

| Product properties | Type: D7 Product type: Housing with locking latch Application: Standard No. of cable outlets: 1 Type of the screw connection: M20 Housing type: Box mounting bases Shielded: no Cable outlet: straight Pg screw connection: with |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ace4dc4545aae640add89a9d968e168f/-S204x204-FJPG Width: 38 mm Height: 28 mm Length: 24.2 mm Hole diameter: 3.2 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) V0 (Interlock) Seal material: NBR Locking latch material: PA Impact strength: IK06 Housing material: PA |
| Mechanical properties | Mechanical data Type of the screw connection: M20 Locking type: Latch |
| Cable/line | External cable diameter (): 4 mm ... 10 mm Tightening torque, union nut: 5.00 Nm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Impact strength: IK06 Ambient temperature (operation): -40°C ... 125°C |
