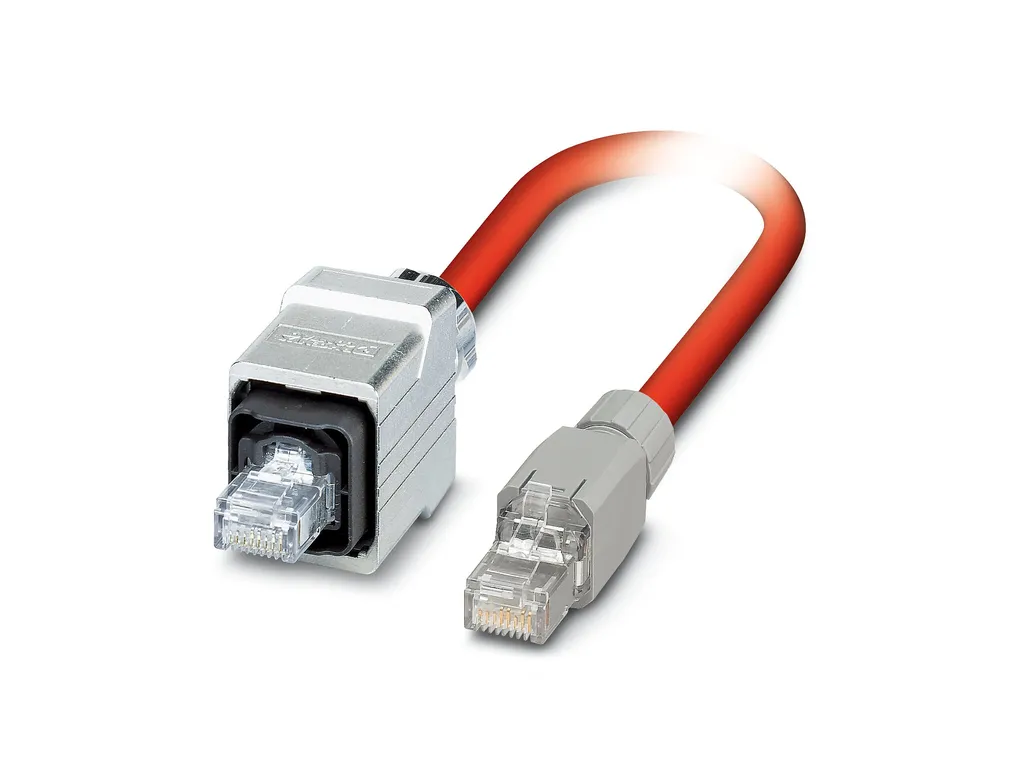

| Product properties | Product type: Data cable preassembled Sensor type: Sercos Number of positions: 4 Application: Standard No. of cable outlets: 1 Shielded: yes Cable outlet: straight Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Signaling | Status display: No |
| Electrical properties | Transmission medium: Copper Transmission characteristics (category): CAT5 Transmission speed: 100 Mbps |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 250 |
| Material specifications | Flammability rating according to UL 94: V0 Outer sheath, material: PVC Conductor material: Tin-plated Cu litz wires |
| Connector | Connection 1 Type: Plug straight RJ45 Material: Metal Degree of protection: IP67 Number of positions: 4 Locking type: Push Pull Connection 2 Type: Plug straight RJ45 Material: Plastic Number of positions: 4 Degree of protection: IP20 |

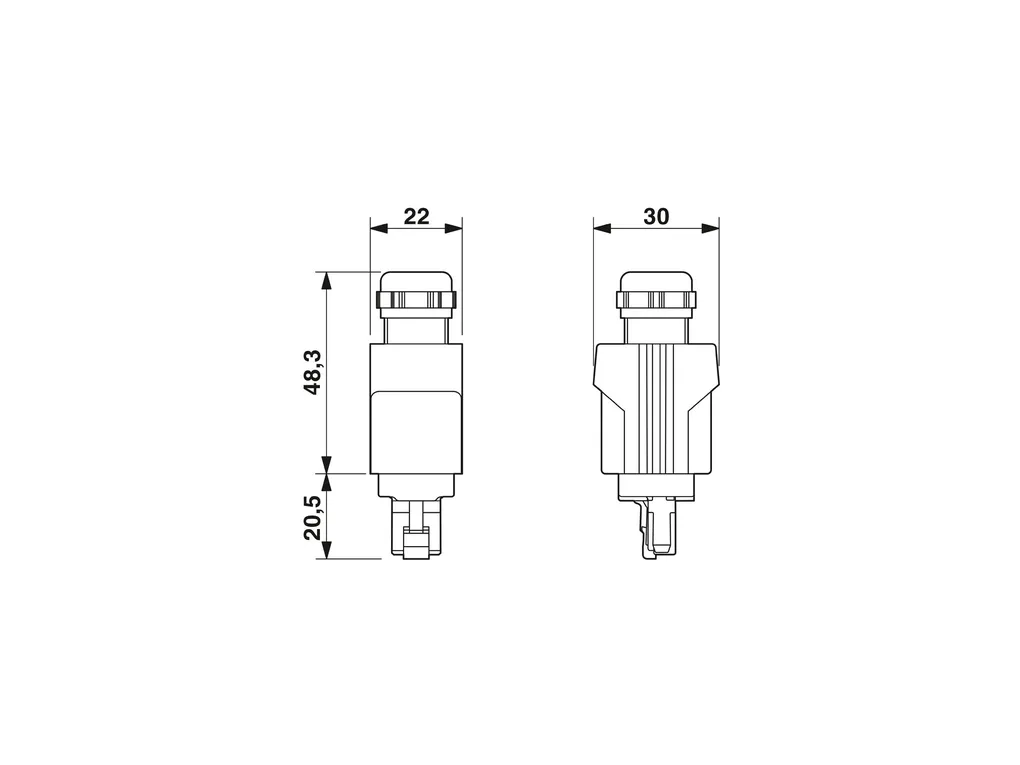

| Cable/line | Cable length: 5.00 m Sercos IIIÃ[93K] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4b34f8ad5d1bc342b90b879ccf8d3910/-S204x204-FJPG Shielded: yes UL AWM Style: 21694 (60ðC / 600ÃV) Cable weight: 68 kg/km Cable type: Sercos III Cable type (abbreviation): 93K Signal type/category: Sercos CAT5 (IEC 11801), 100 Mbps Cable structure: 1x4xAWG22/7, SF/TQ External cable diameter: 6.5 mm ñ0.2Ãmm Outer sheath, material: PVC External sheath, color: signal red RAL 3020 Thickness, outer sheath: approx. 0.9 mm Material, inner sheath: PVC Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 7x 0.25 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² Material wire insulation: PE Wire diameter incl. insulation: approx. 1.55 mm Single wire, color: white, yellow, blue, orange Type of pair shielding: Aluminum-lined polyester foil Overall twist: Star quad Shielding: Tinned copper braided shield Nominal voltage, cable: 600 V Test voltage Core/Core: 2000 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 2000 V (50ÃHz, 1Ãmin.) Cable resistance: ââ°¤ 120 é/km Cable insulation resistance: ââ°¥ 0.5 Gé*km Coupling resistance: ââ°¤ 20.00 mé/m (at 10 Hz) Wave impedance: 100 é ñ15Ãé (at 100 MHz) Signal runtime: 5.3 ns/m Minimum bending radius, fixed installation: 3 x D Minimum bending radius, flexible installation: 7 x D Resistance to oil: Resistant to oil to a limited extent Flame resistance: according to ULÃ1685 (CSA FT 4) Other resistance: UV resistant According to ULÃ1581, Section 1200 Ambient temperature (operation): -40°C ... 70°C (Cable, flexible installation) -40°C ... 70°C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 70°C (cable, fixed installation) -40°C ... 70°C (Cable, flexible installation) |
