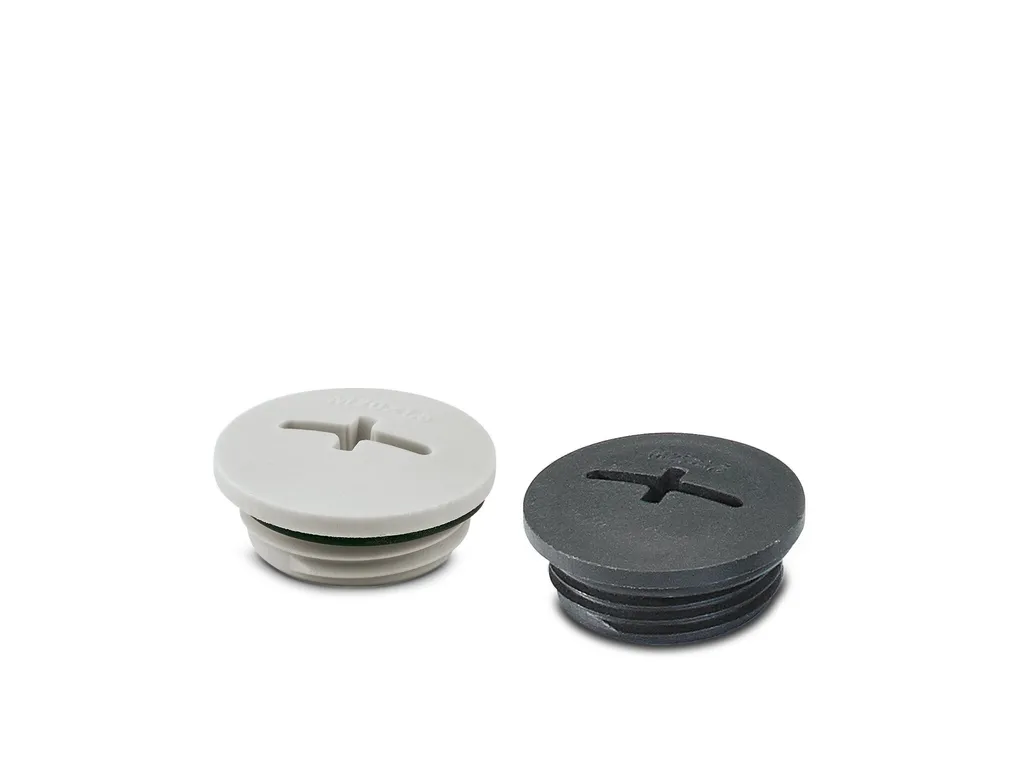

A-INSP-PG29-65N-P-BK - Screw plug

Screw plug, material for screw connection: PA, connecting thread: Pg29, color: jet black RAL 9005, with O-ring

Product Code: 1415215 Copia - Copy

Partner cod.: 1415215 Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: Plug for cable screw gland
Dimensions	Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22546/full/b250?format=jpg Length: 12 mm Length of the connecting thread: 8 mm Diameter: 37 mm 44 mm Connecting thread diameter: 37 mm Thread type connection side: Pg29
Material specifications	Material: PA Seal material Flat gasket: EPDM Material for screw connection: PA
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 100°C

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Technical_drawing_14237.pdf
