| Product properties | Product type: Cable gland with bayonet locking No. of conductors: 1 Type of the screw connection: M32 Type: with external strain relief Shielded: no Execution of the strain relief: A |

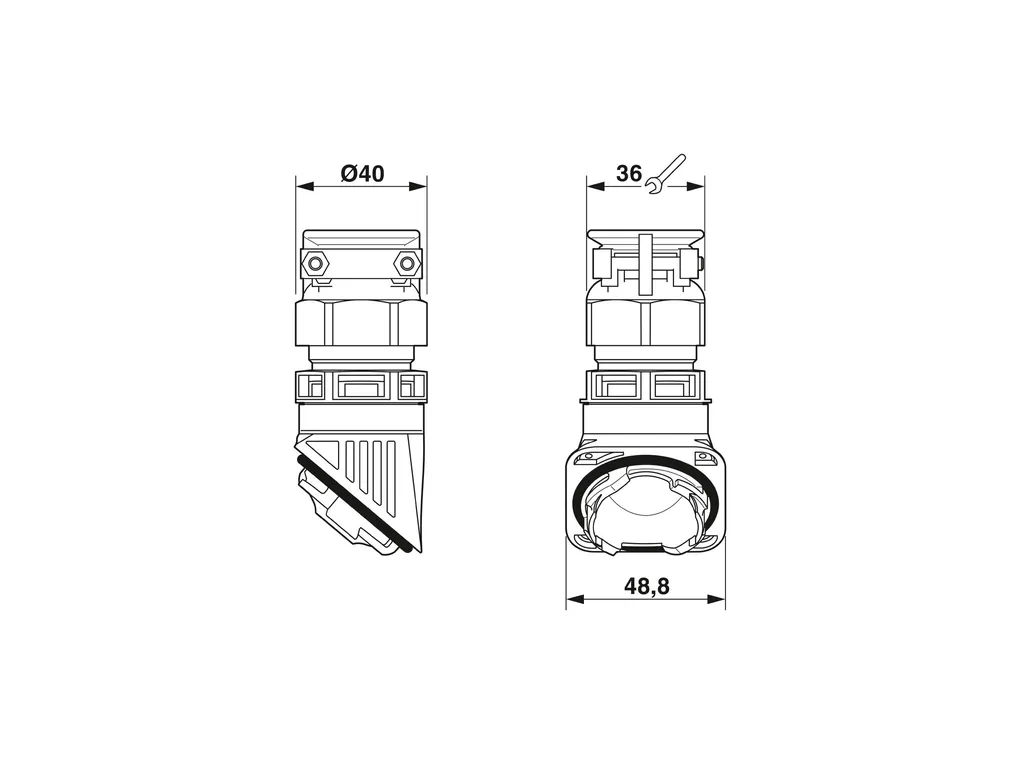

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9e3eb0dbea951146b051b2a70fdcc948/-S204x204-FJPG Wrench size, union nut: 36 mm Wrench size, support: 36 mm Thread pitch: 1.5 mm |
| Material specifications | Seal material: EPDM Seal material O-ring: NBR Material for screw connection: PA Housing material: PA |
| Cable/line | External cable diameter (Cable 1): 13 mm ... 21 mm Tightening torque, union nut: 7.50 Nm |
| Mechanical properties | Mechanical data Type of the screw connection: M32 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Ambient temperature (operation): -40°C ... 100°C |
