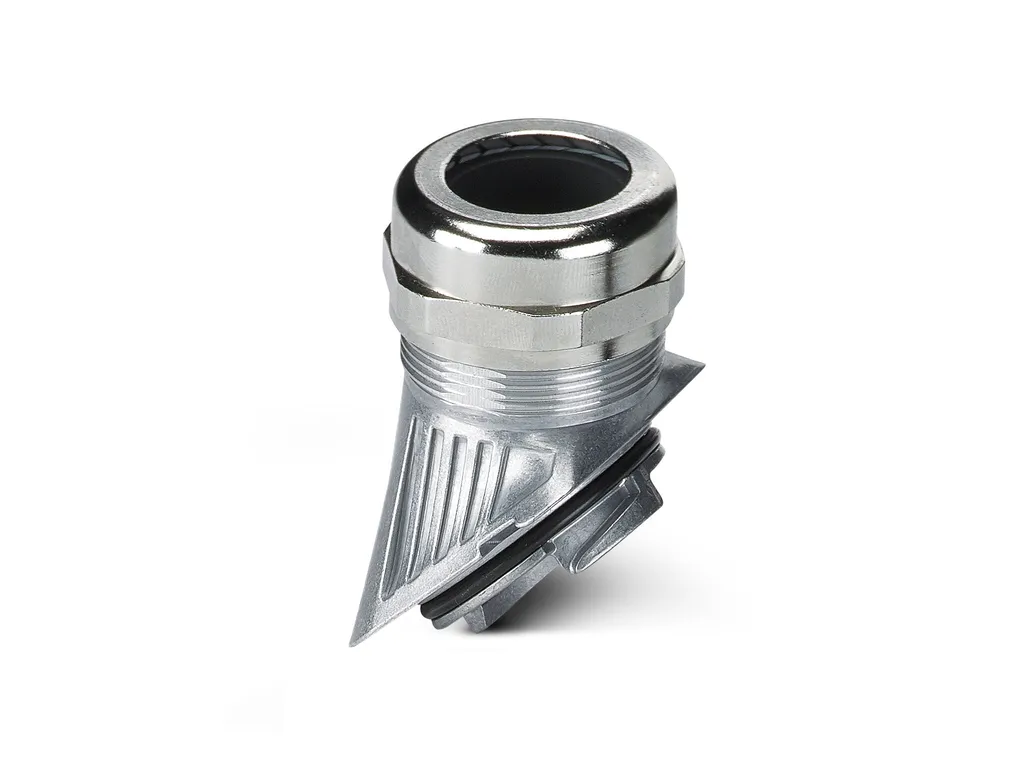

| Product properties | Product type: Thread adapter Application: Bayonet B - Pg Type of the screw connection: Pg16 |

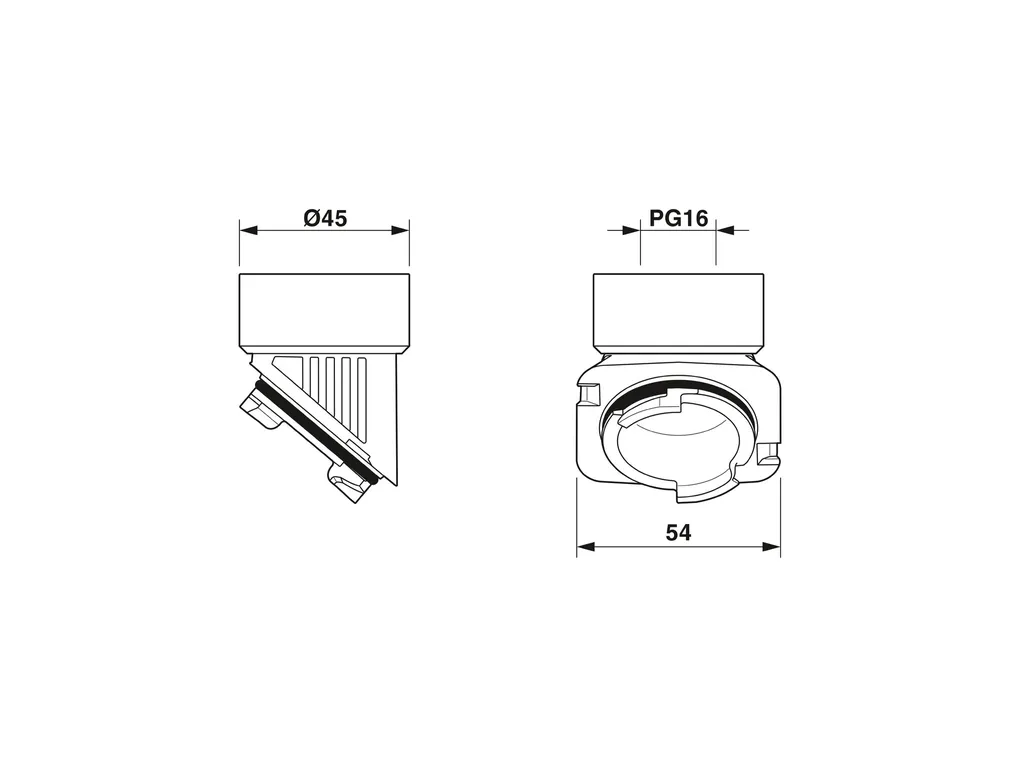

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4fc5ac9a1cbd544e9d9a9d939263754d/-S204x204-FJPG Thread type on seal side: Pg16 Internal dimensions Length of internal thread: 13 mm |
| Material specifications | Color: aluminum Material: Die-cast aluminum, corrosion-resistant Seal material O-ring: NBR Housing material: Die-cast aluminum, corrosion resistant |
| Cable/line | External cable diameter: depending on the cable gland |
| Mechanical properties | Mechanical data Type of the screw connection: Pg16 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (ULÃ50e) 4X (ULÃ50e) 12 (ULÃ50e) Ambient temperature (operation): -40°C ... 125°C |
