| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 Connection profile: RJ45 No. of cable outlets: 1 Number of slots: 1 Shielded: yes Cable outlet: straight Insulation characteristics Degree of pollution: 2 |
| Electrical properties | Transmission medium: Copper Transmission speed: 1 Gbps Wave impedance: 100 é |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 200 |
| Material specifications | Color: black Flammability rating according to UL 94: V2 Outer sheath, material: PUR Conductor material: Bare Cu litz wires |
| Connector | Connection 1 Type: Plug straight RJ45 Material: Plastic Degree of protection: IP67 Number of positions: 8 Locking type: Push Pull Connection 2 Type: free cable end Number of positions: 8 |

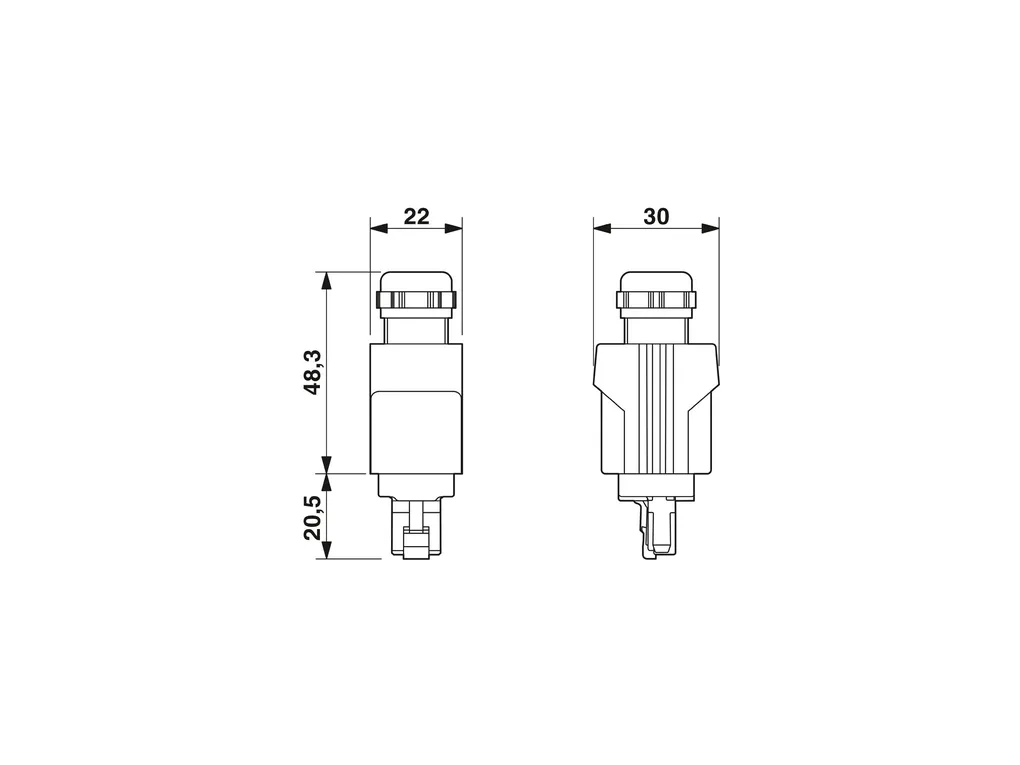

| Cable/line | Cable length: 2.00 m Ethernet drag chain CAT5, 4-pairÃ[94C] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7d8f0a2df9771f40aac7b9675a7fbd3f/-S204x204-FJPG Shielded: yes UL AWM Style: 20963 (80°C/30 V) Cable weight: 57 kg/km Cable type: Ethernet drag chain CAT5, 4-pair Short symbol: 9YC(ST)11Y Cable type (abbreviation): 94C Signal type/category: Ethernet CAT5 (IEC 11801), 1 Gbps Cable structure: 4x2xAWG26/19, S/UTP External cable diameter: 6.9 mm +0.1Ãmm ... 0.2Ãmm Outer sheath, material: PUR External sheath, color: water blue RALÃ5021 Thickness, outer sheath: 0.85 mm Conductor material: Bare Cu litz wires Conductor structure signal line: 19x 0.10 mm AWG signal line: 26 Conductor cross section: 4x 2x 0.14 mm² Material wire insulation: PP Wire diameter incl. insulation: 1 mm Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Twisted pairs: 2 cores to the pair Overall twist: Four pairs and four fillers to the core Shielding: Tinned copper braided shield Optical shield covering: 90 % Nominal voltage, cable: ââ°¤ 100 V Test voltage Core/Core: 700 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 700 V (50ÃHz, 1Ãmin.) Cable insulation resistance: ââ°¥ 500 Mé*km Coupling resistance: ââ°¤ 100.00 mé/m (at 10 MHz) Wave impedance: 100 é ñ5Ãé (at 100 MHz) Loop resistance: ââ°¤ 290.00 é/km Cable capacity: approx. 50 nF/km (at 1 kHz) Signal runtime: 5.3 ns/m Tensile strength: ââ°¤ 100 N Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Number of bending cycles: 5000000 Minimum bending radius, drag chain applications: 7,5 x D Traversing rate: 3 m/s Acceleration: 5 m/s² Damping: 3.2 dB (with 1 MHz) 6 dB (at 4 Ãà Hz) 9.5 dB (at 10 MHz) 12.1 dB (at 16 MHz) 13.6 dB (at 20ÃÃà Hz) 17.1 dB (at 31.25ÃÃà Hz) 24.8 dB (at 62.5ÃÃà Hz) 32 dB (at 100 MHz) Near end crosstalk attenuation (NEXT): 65.3 dB (with 1 MHz) 56.3 dB (at 4 Ãà Hz) 50.3 dB (at 10 MHz) 47.2 dB (at 16 MHz) 45.8 dB (at 20ÃÃà Hz) 42.9 dB (at 31.25ÃÃà Hz) 38.4 dB (at 62.5ÃÃà Hz) 35.3 dB (at 100 MHz) Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz) 53.3 dB (at 4 Ãà Hz) 47.3 dB (at 10 MHz) 44.2 dB (at 16 MHz) 42.8 dB (at 20ÃÃà Hz) 39.9 dB (at 31.25ÃÃà Hz) 35.4 dB (at 62.5ÃÃà Hz) 32.3 dB (at 100 MHz) Return attenuation (RL): 23 dB (at 4 Ãà Hz) 24.1 dB (at 8ÃÃà Hz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20ÃÃà Hz) 23.6 dB (at 31.25ÃÃà Hz) 21.5 dB (at 62.5ÃÃà Hz) 20.1 dB (at 100 MHz) Halogen-free: according to IEC 60754-1 Resistance to oil: in accordance with EN 60811-2-1 Flame resistance: according to IEC 60332-1-2 Ambient temperature (operation): -20°C ... 80°C (Cable, flexible installation) -40°C ... 80°C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP65/IP67 |
| Standards and regulations | Standards/specifications: IEC PASÃ61076-3-117 |
