| Notes | General: for contact inserts HC-B10, BB18, DD42, M, K8/24, HV03 also available as a powder-coated or color version: 1372732 HC-STA-B10-HHWD-1STP21-EL/... |

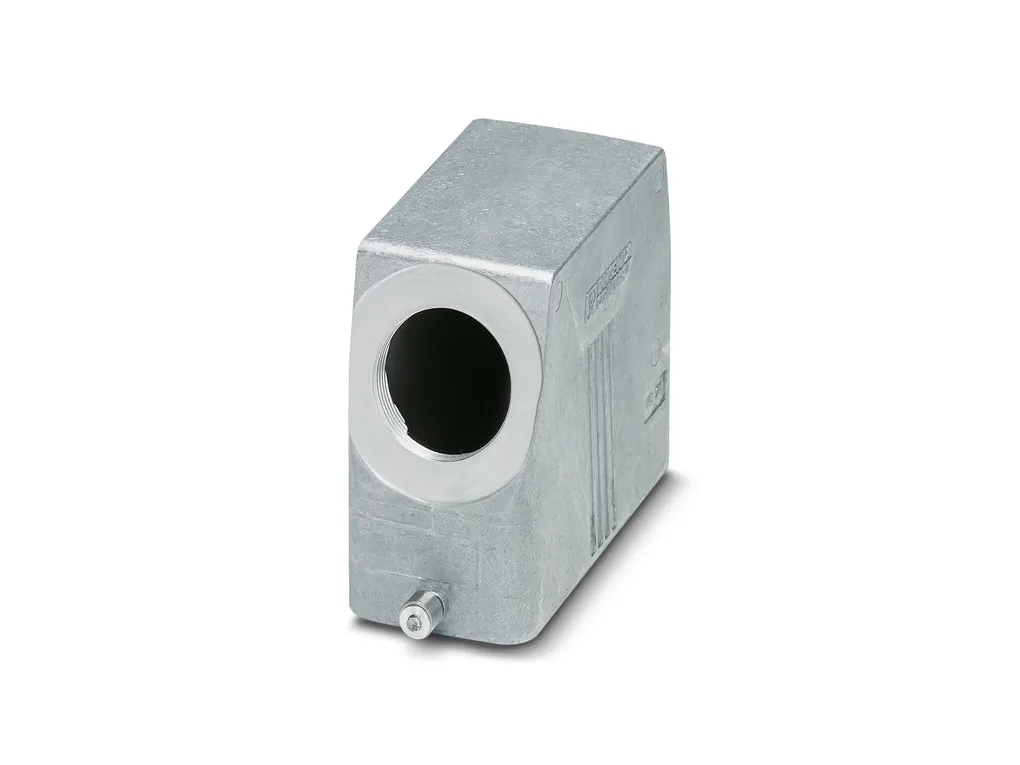

| Product properties | Type: B10 Product type: Housing with locking latch Application: Standard No. of cable outlets: 1 Type of the screw connection: 1x Pg21 Housing type: Sleeve housing Cable outlet: lateral Pg screw connection: none |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fb30189c74bb3d4da1ce8875ed2065f1/-S204x204-FJPG Width: 44 mm Height: 72 mm Length: 73 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) Housing surface material: uncoated Locking latch material: PA Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Type of the screw connection: 1x Pg21 Locking type: Latch |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (ULÃ50e) 4X (ULÃ50e) 12 (ULÃ50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
