| Mounting | Assembly instructions: 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Product properties | Product type: Full screw connection No. of conductors: 1 Manufacturer: BIMED Manufacturer Designation: BSPA-01 Shielded: no |

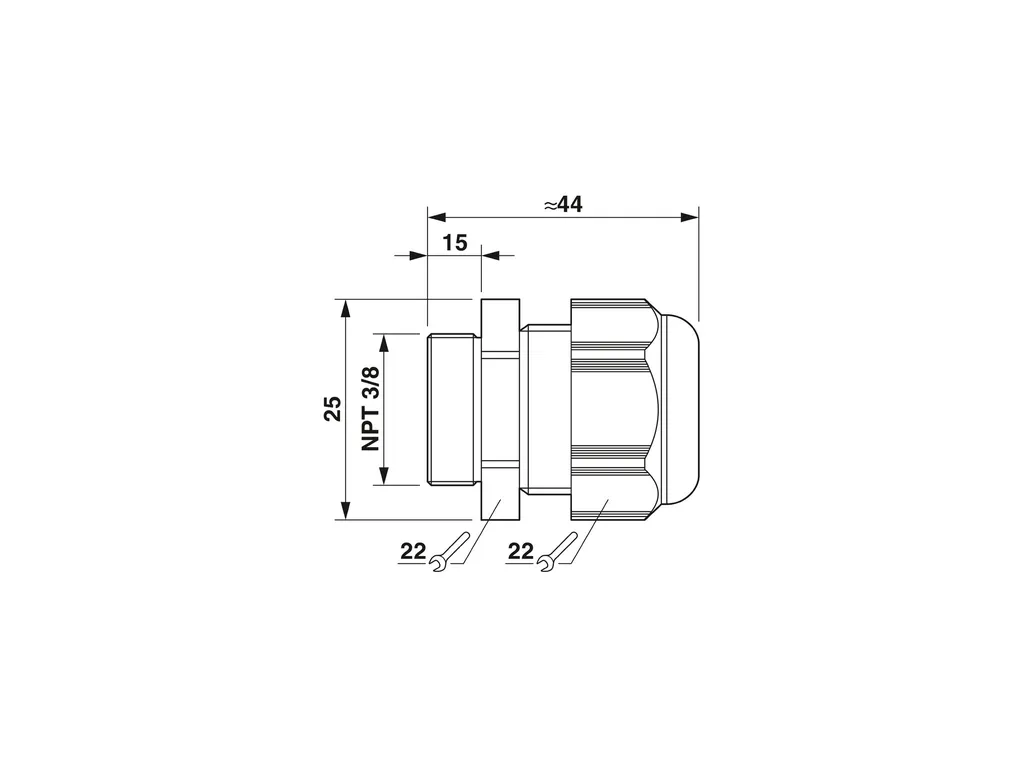

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/76d6c137bea1db458c6afc75568def9f/-S204x204-FJPG Length: 44 mm Length of the connecting thread: 15 mm Wrench size, union nut: 22 mm Wrench size, support: 22 mm Hexagon angular dimension: 25 mm Thread type connection side: 3/8" NPT |
| Connection data | Tightening torque: 2.5 Nm ñ0.5ÃNm (Cap nut) 1 Nm (Support sleeve) |
| Material specifications | Material: PA Flammability rating according to UL 94: V2 Seal material Cable seal: CR Material for screw connection: PA |
| Cable/line | External cable diameter (): 5 mm ... 10 mm 22 mm ... 32 mm (for UL 514 B) Halogen-free: no |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 (5Ãbar / 0.5Ãh) IP66 Ambient temperature (operation): -40°C ... 100°C (static) |
