| Notes | General: For crimp contacts CK 1.6-ED... Connectors may be operated only when there is no load/voltage. |
| Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required |
| Product properties | Type: COM Product type: Contact insert with a fixed no. of positions Number of positions: 17 Connection profile: 17+PE Contact numbering: 1 - 17 Application: Signal Number of connections per position: 1 No. of power contacts: 0 No. of control contacts: 17 Contact material type: turned rolled Series: HC-COM Insulation characteristics Overvoltage category: III Degree of pollution: 3 |

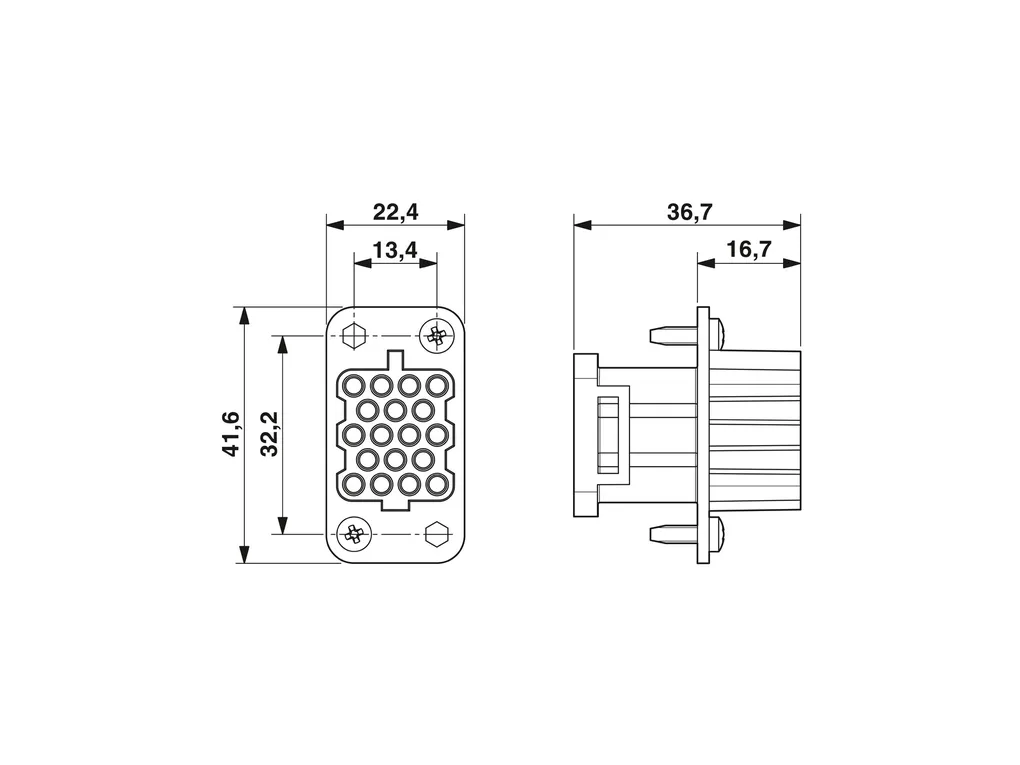

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2d4ffb0bd924f840ba8dbb54f57d64b1/-S204x204-FJPG Width: 22.4 mm Height: 36.7 mm Length: 41.6 mm Mechanical characteristics Contact diameter: 1.6 mm |
| Connection data | Connection technology Connection technology: Crimp connection Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.14 mm² ... 2.5 mm² Connection cross section AWG: 26 ... 14 Stripping length of the individual wire: 8 mm 6 mm (at 2.5 mm²) |
| Electrical properties | Rated voltage (III/2) contacts: 250 V Rated voltage (III/3): 200 V Rated voltage for power contacts: 200 Rated surge voltage: 4 kV Rated current: 10 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 500 |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag (alternatively Au) Contact carrier material: PC |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 100°C (including heating up of contacts) |
