| Product properties | Product type: Cable gland with bayonet locking No. of conductors: 1 Type of the screw connection: M40 Shielded: no |

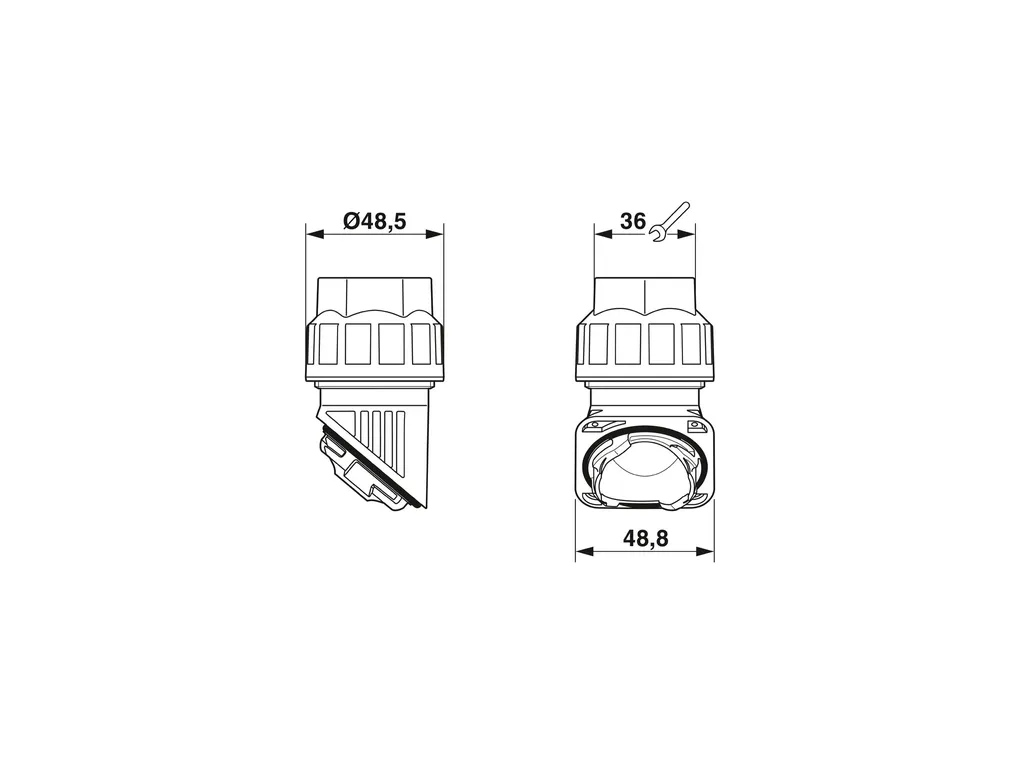

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fcb7d098f8c278469f2a0d3fe3c23b0d/-S204x204-FJPG Width: 48.8 mm Height: 81.5 mm Depth: 74.8 mm Wrench size, union nut: 36 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: V0 / V2 Seal material O-ring: NBR Seal material Cable seal: NBR Material for screw connection: PA |
| Cable/line | External cable diameter (Cable 1): 19 mm ... 28 mm Tightening torque, union nut: 7.50 Nm |
| Mechanical properties | Mechanical data Type of the screw connection: M40 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (ULÃ50e) Ambient temperature (operation): -40°C ... 100°C |
| Mounting | Assembly instructions: Bayonet locking max. 3x can be removed |
