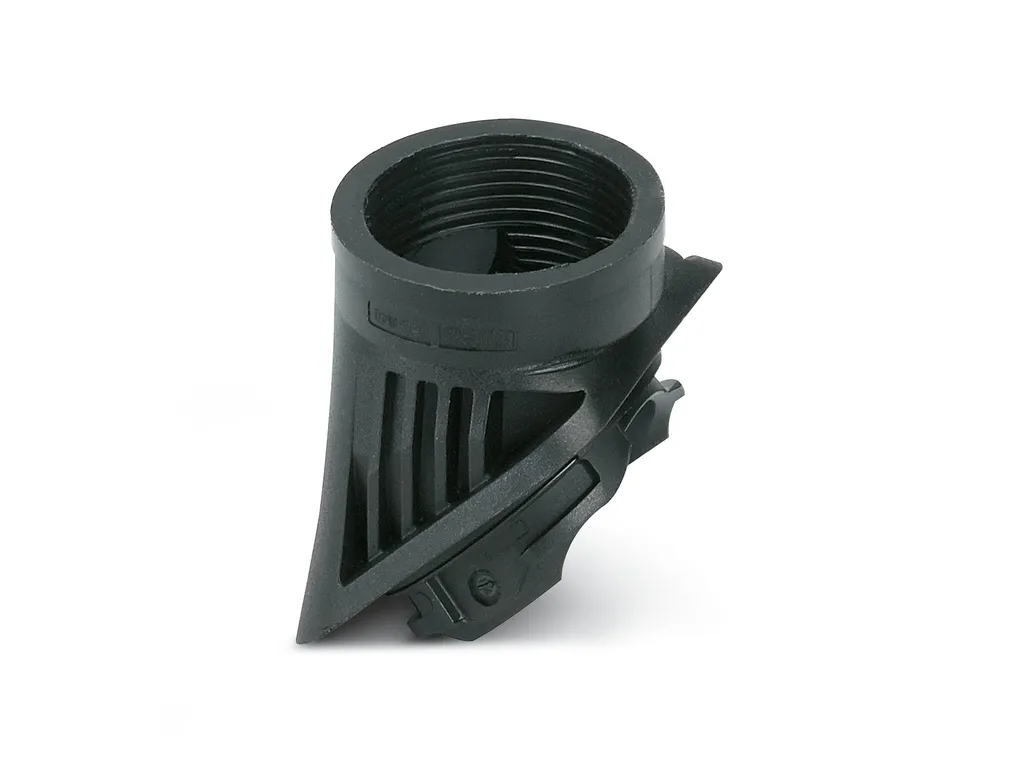

| Product properties | Product type: Cable gland with bayonet locking No. of conductors: 1 Type of the screw connection: M32 Shielded: no |

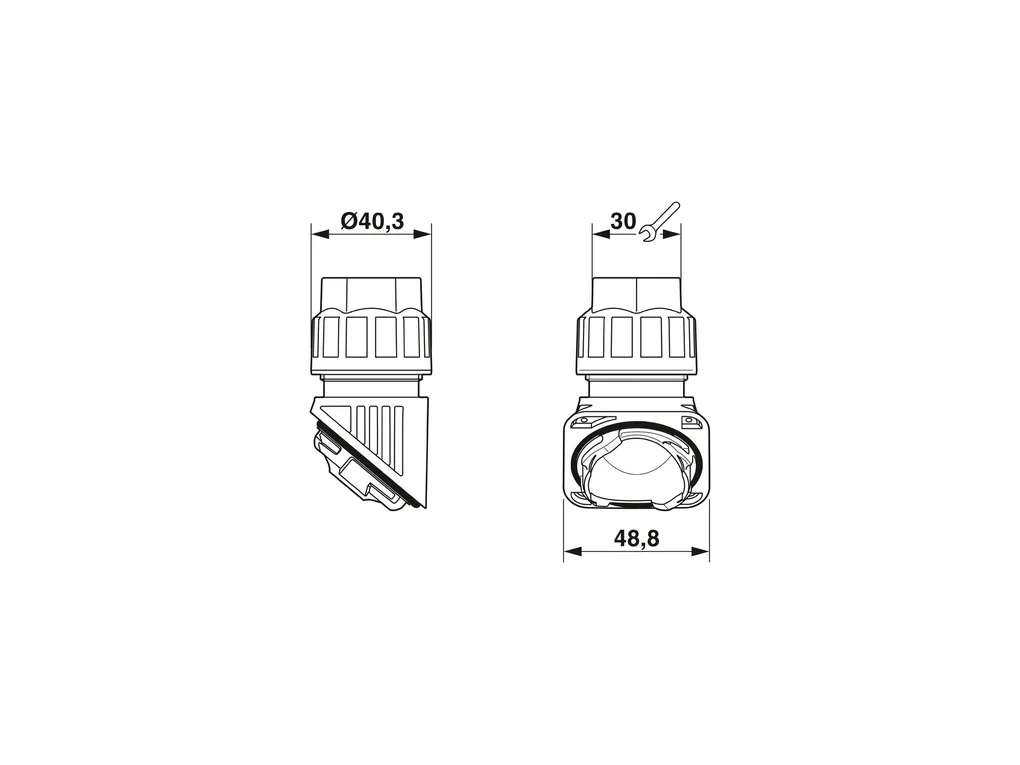

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/856291aa3c859d4a9e559e98d3cb34bd/-S204x204-FJPG Width: 48.8 mm Height: 76 mm Depth: 69.5 mm Wrench size, union nut: 30 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: V0 / V2 Seal material O-ring: NBR Seal material Cable seal: NBR Material for screw connection: PA |
| Cable/line | External cable diameter (Cable 1): 11 mm ... 21 mm Tightening torque, union nut: 7.50 Nm |
| Mechanical properties | Mechanical data Type of the screw connection: M32 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (ULÃ50e) Ambient temperature (operation): -40°C ... 100°C |
| Mounting | Assembly instructions: Bayonet locking max. 3x can be removed |
