| Notes | General: For contact inserts HC-B10, BB18, DD42, M, K8/24, HV03-I-PT, HC- 3-E...C |

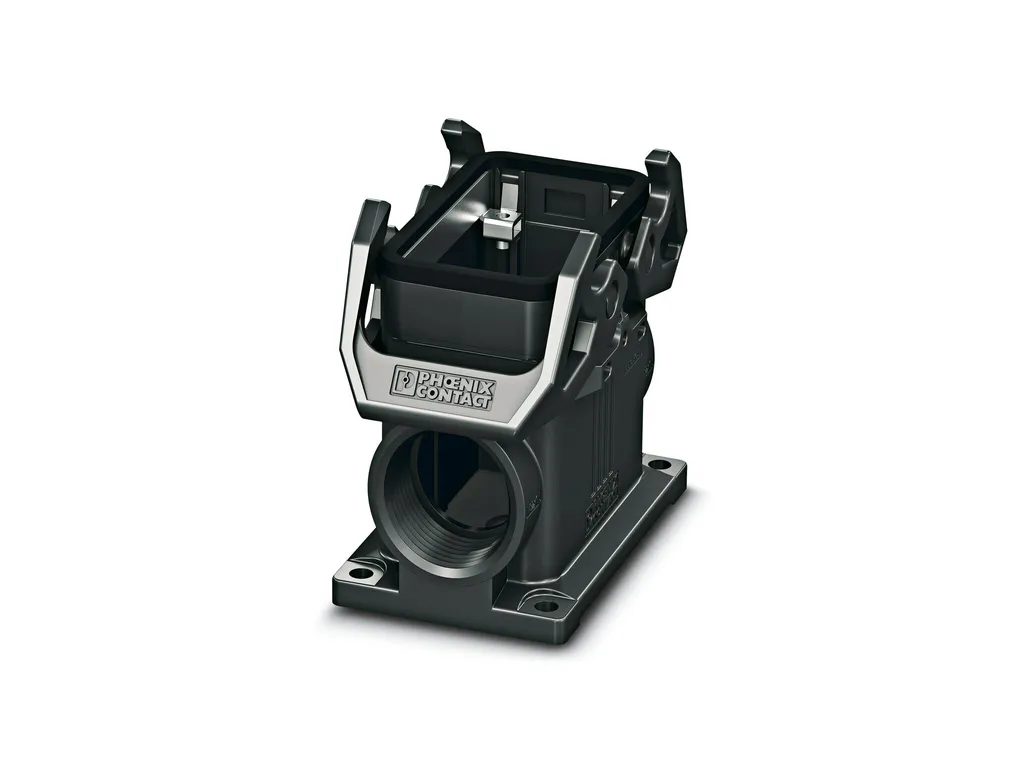

| Product properties | Type: B10 Product type: Housing with locking latch Product family: HC-EVO-B Application: Standard No. of cable outlets: 2 Type of the screw connection: 2x M32 Housing type: Box mounting bases Cable outlet: lateral Pg screw connection: none |

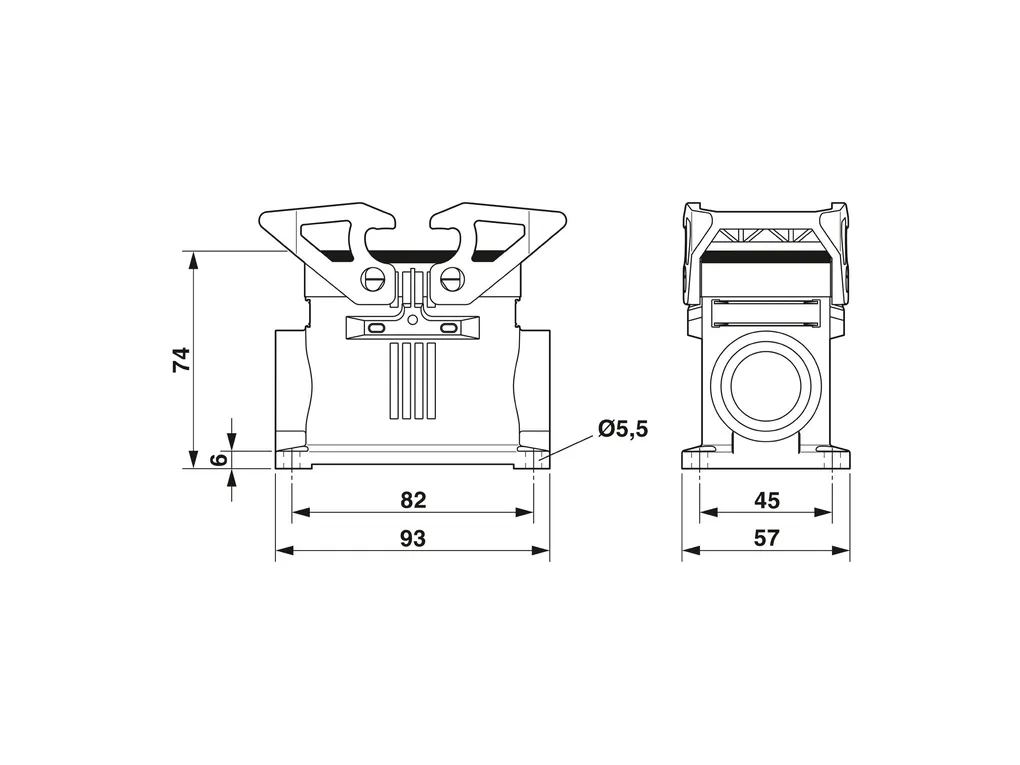

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9ddc1cf0166584419063a91c6b0ad3f3/-S204x204-FJPG Width: 57 mm Height: 74 mm Length: 93 mm Hole diameter: 5.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) V0 (Interlock) Seal material: NBR Locking latch material: PA Impact strength: IK09 Housing material: PA |
| Mechanical properties | Mechanical data Type of the screw connection: 2x M32 Locking type: Latch |
| Mounting | Assembly instructions: One of the two openings for the screw connections is sealed but can be broken open using a screwdriver. |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (ULÃ50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
