| Notes | General: For contact inserts HC-B10, BB18, DD42, M, K8/24, HV03-I-PT, HC- 3-E...C |

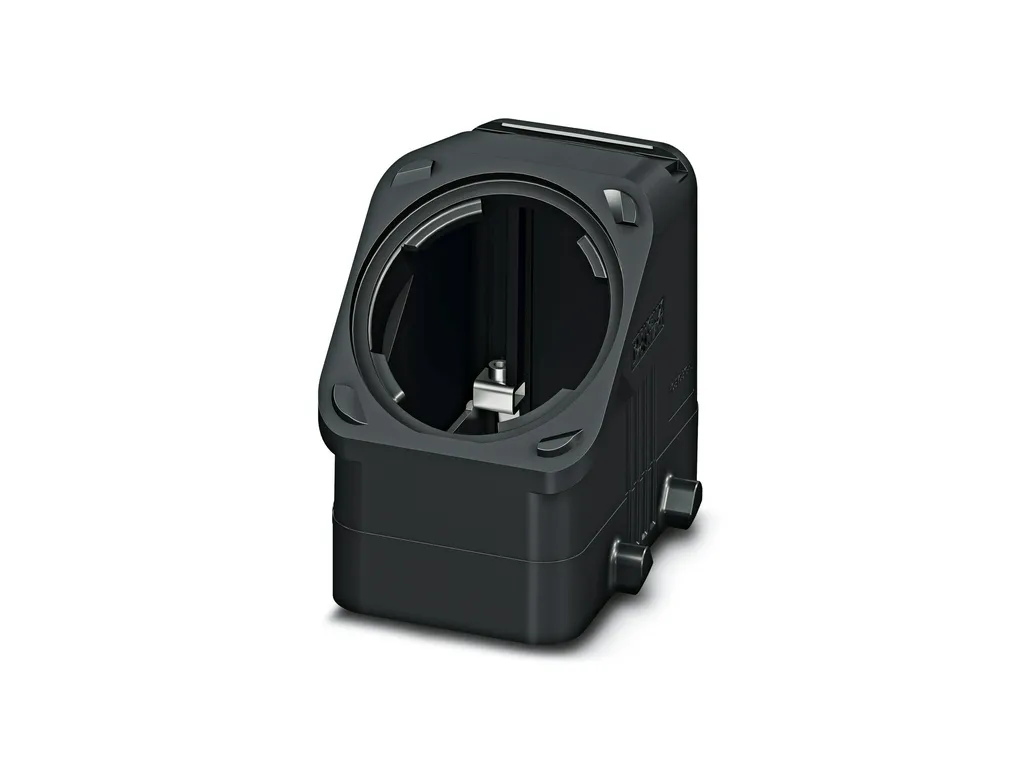

| Product properties | Type: B10 Product type: Housing with locking latch Product family: HC-EVO-B Application: Standard No. of cable outlets: 1 Housing type: Sleeve housing Cable outlet: straight Pg screw connection: none |

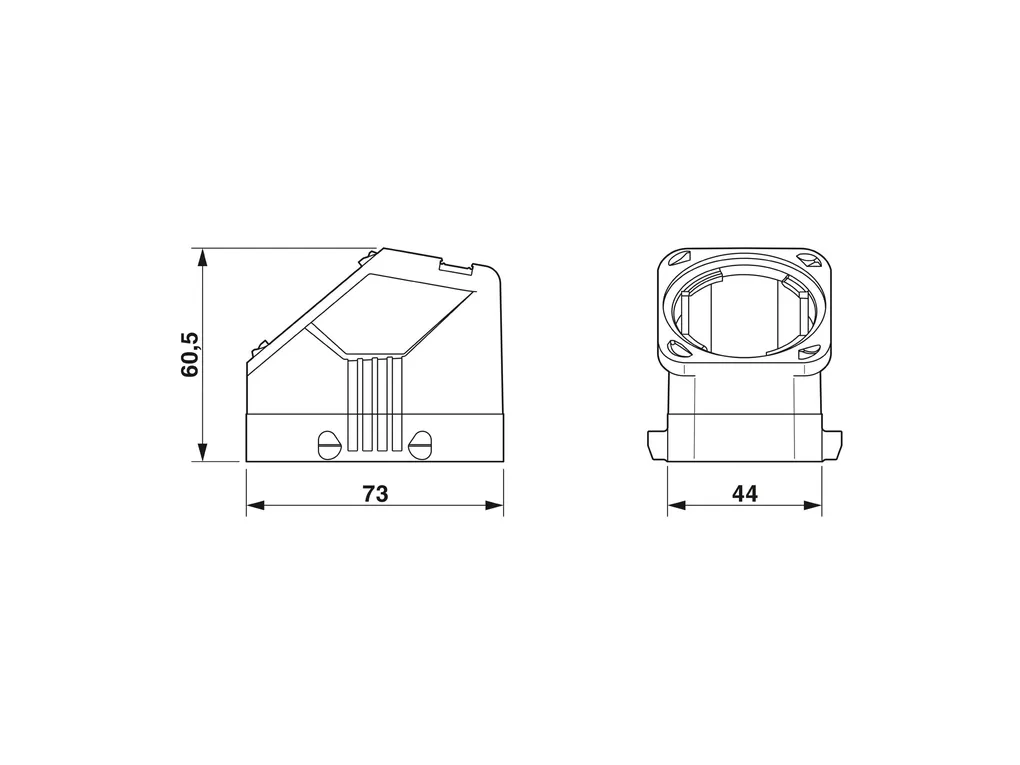

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/72582649139c84489b9380f50617143c/-S204x204-FJPG Width: 44 mm Height: 60.5 mm Length: 73 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) Impact strength: IK09 Housing material: PA |
| Mechanical properties | Mechanical data Locking type: Pin |
| Mounting | Assembly instructions: The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in four sizes. It facilitates the creation of a straight or a side cable outlet. The EVO screw connection is mounted with the aid of, for example, a pipe wrench |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (ULÃ50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
