1406531 PHOENIX CONTACT - Technology Bsa

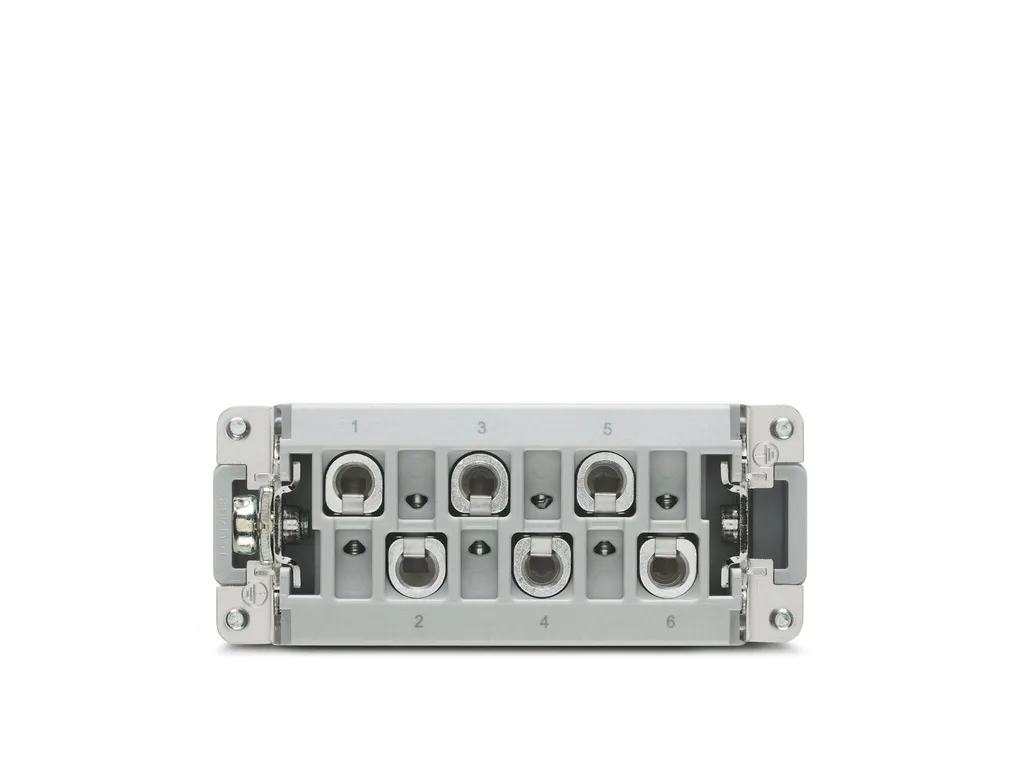

HC-HS06-I-UT-M - Contact insert

Contact insert, number of positions: 6+PE, size: B16, number of connections per position: 1, Pin, Screw connection, 400 V/690 V, 41 A, 0.5 mm²...6 mm², application: Power

Product Code: 1406531 Copia - Copy

Partner cod.: 1406531 Copia - Copy

PHOENIX CONTACT

Notes	General: For HEAVYCON housing B16 and B32 Connectors may be operated only when there is no load/voltage.
Mounting	Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required
Product properties	Type: B16 B32 Product type: Contact insert with a fixed no. of positions Number of positions: 6 Connection profile: 6+PE Contact numbering: 1 - 6 Application: Power Number of connections per position: 1 Contact material type: turned Series: HC-HS Insulation characteristics Overvoltage category: III Degree of pollution: 3
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/779e395a3af3734ab20af108a47af05f/-S204x204-FJPG Width: 34 mm Height: 34 mm Length: 84.5 mm Drill hole distance, horizontal: 77.5 mm Drill hole distance, vertical: 27 mm Mechanical characteristics Contact diameter: 3.5 mm
Connection data	Connection technology Connection technology: Screw connection Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.5 mm² ... 6 mm² (power contacts) Connection cross section AWG: 20 ... 10 Tightening torque: 0.8 Nm ... 1.2 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) 1.2 Nm Stripping length of the individual wire: 10 mm
Electrical properties	Rated voltage (III/3): 400 V (Conductor-PE) 690 V (Conductor-Conductor) Rated voltage for power contacts: 400/690 V Rated surge voltage: 6 kV (power contacts) Rated current: 41 A (power contacts) SCCR: 5 kA (UL 2237)
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Material specifications	Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts)
Standards and regulations	Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
