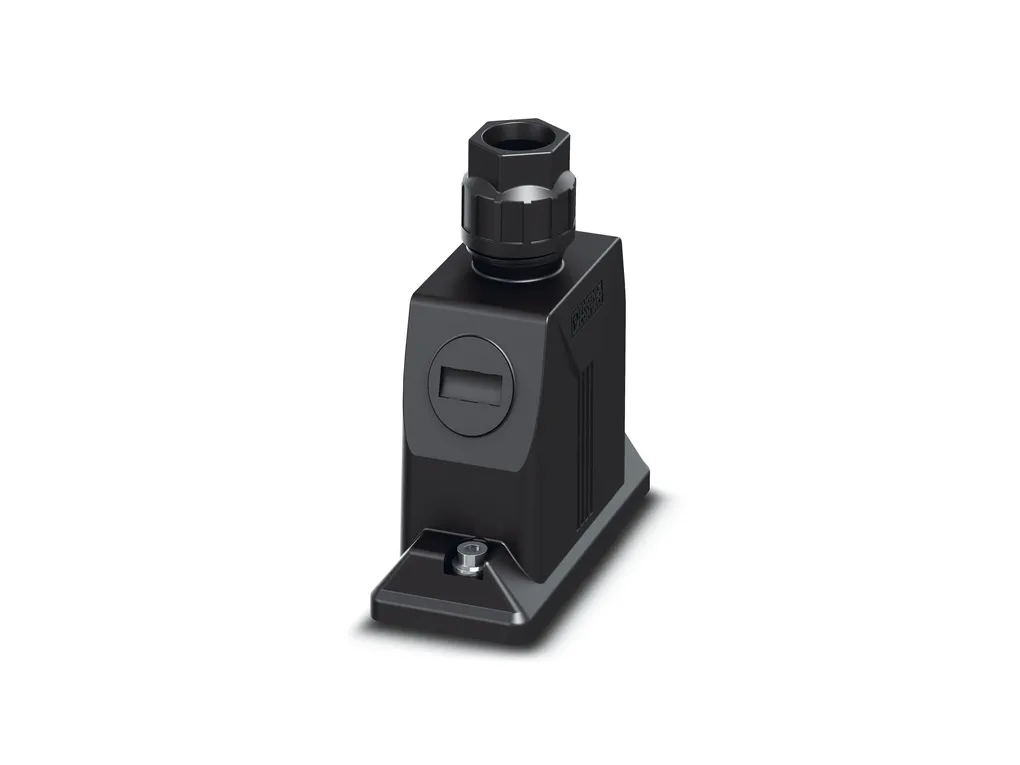

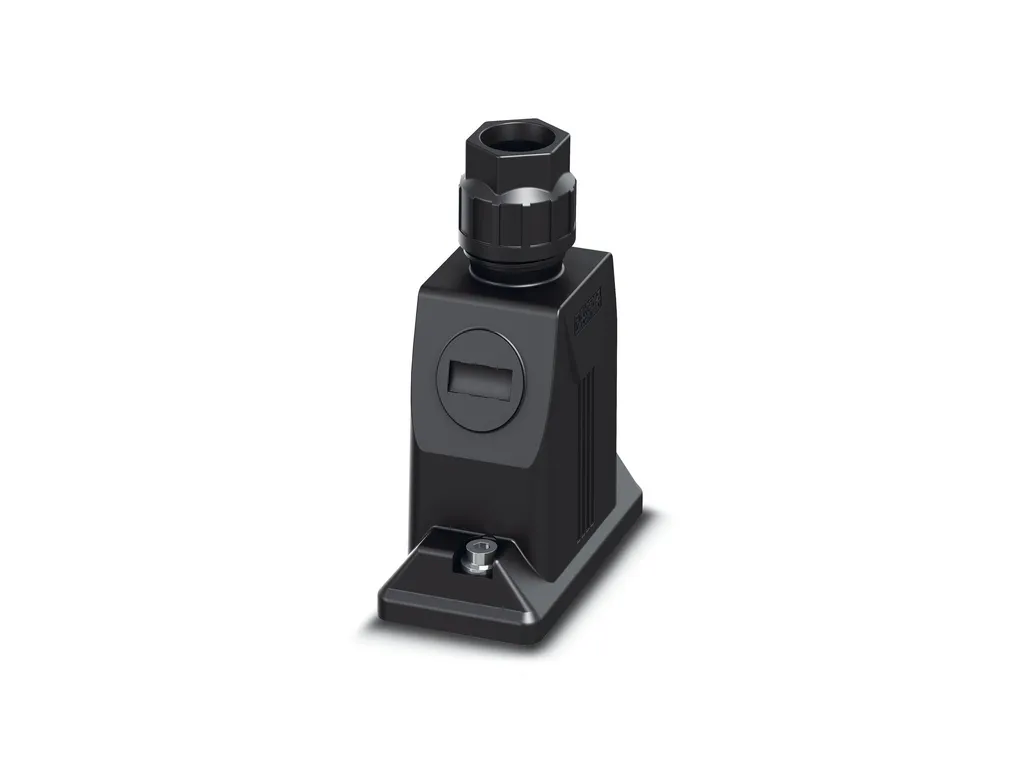

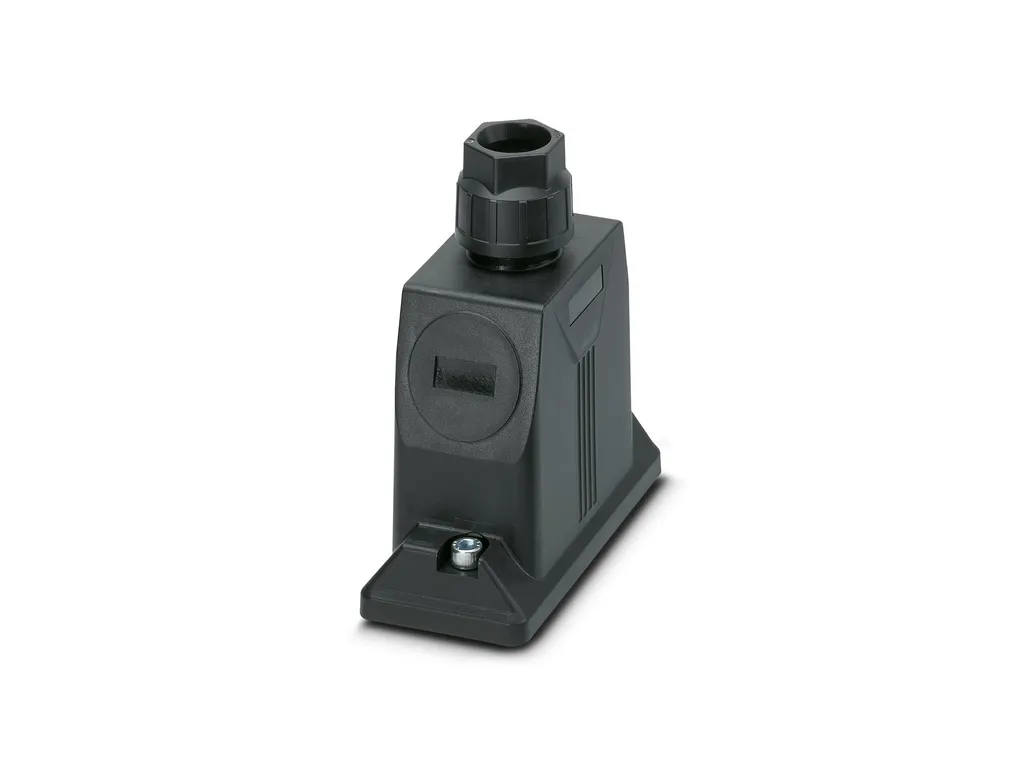

| Notes | General: For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K, HV06-I-PR, HV 6-E...C |
| Product properties | Type: B16 Product type: Housing with screw locking Application: Standard No. of cable outlets: 1 Type of the screw connection: M32 Fixing screws: M6 (screw head: 5 mm Allen screw) Housing type: Sleeve housing Shielded: no Cable outlet: straight Pg screw connection: with |
| Connection data | External cable diameter: 11 mm ... 21 mm Tightening torque: 3 Nm ... 5 Nm (for M6 mounting screws on the sleeve housing) |

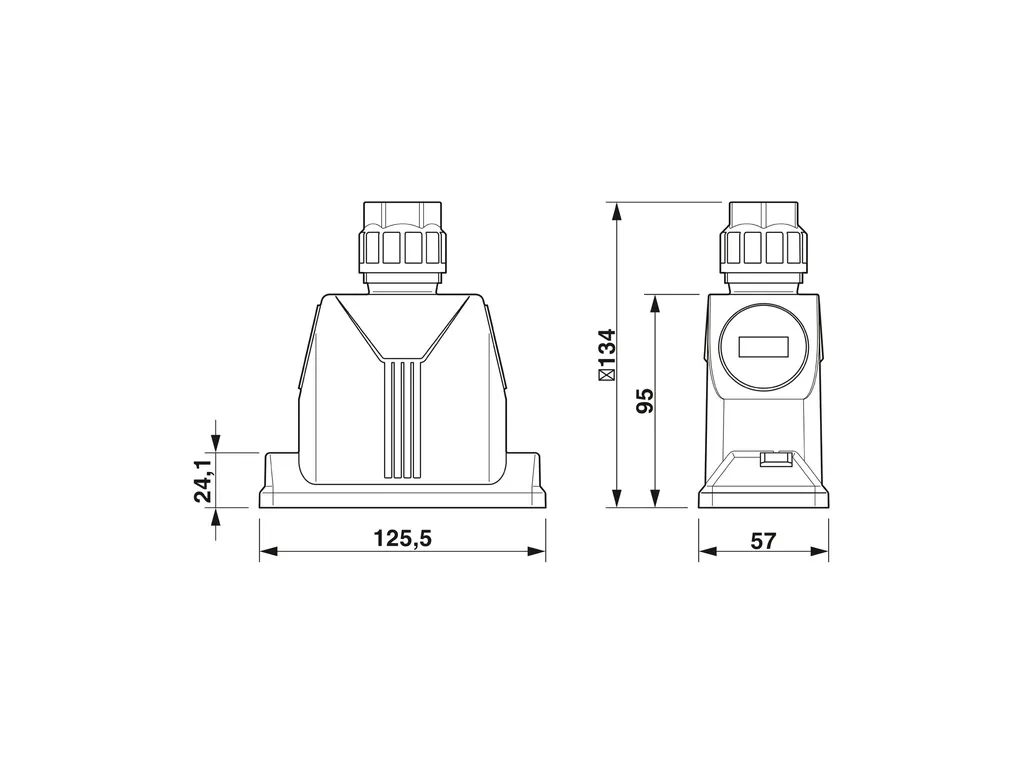

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9d8aabd704f9d64db922cde6c59e496f/-S204x204-FJPG Width: 57 mm Height: 95 mm Length: 126 mm Wrench size, union nut: 30 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 86 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: V0 (Housing) Seal material Profile gasket: NBR Seal material Cable seal: NBR Locking latch material: Stainless steel Material of locking screw: Stainless steel Impact strength: IK08 Housing material: PA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Impact strength: IK08 Ambient temperature (operation): -40°C ... 100°C |
| Mechanical properties | Mechanical data Type of the screw connection: M32 Locking type: Screw |
| Cable/line | External cable diameter (Cable 1): 11 mm ... 21 mm Tightening torque, union nut: 7.50 Nm |
| Mounting | Assembly instructions: M6 locking screw, with 5 mm Allen screw head Fixing screws: M6 (screw head: 5 mm Allen screw) |
