SAC-4P-10,0-PVC/M12FS SH - Sensor/actuator cable

Sensor/actuator cable, 4-position (Advanced Shielding Technology), free cable end, on Socket straight M12, coding: A, cable length: 10 m

Product Code: 1402338 Copia - Copy

Partner cod.: 1402338 Copia - Copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator cable Application: Standard Number of positions: 4 No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB
Electrical properties	Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 48 V AC 60 V DC Nominal current I_N: 4 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Signaling	Status display: no Status display present: No
Connection data	Conductor connection Tightening torque: 0.4 Nm (M12 connector)

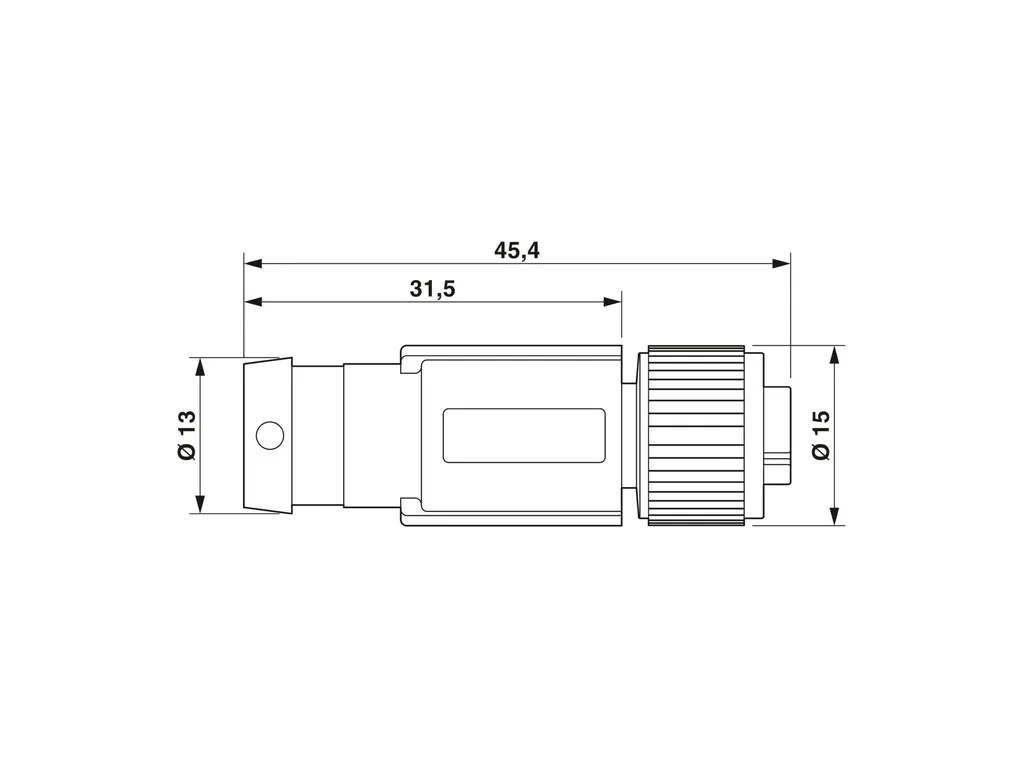

Connector	Connection 1 Type: free cable end Connection 2 Type: Socket straight M12 Number of positions: 4 Coding type: A
Cable/line	Cable length: 10 m
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket)
Standards and regulations	Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
