| Notes | General: Protective cover for supporting base element with single locking latch |
| Product properties | Type: B6 Product type: Protective cover Housing type: Protective cover Seal present: no |

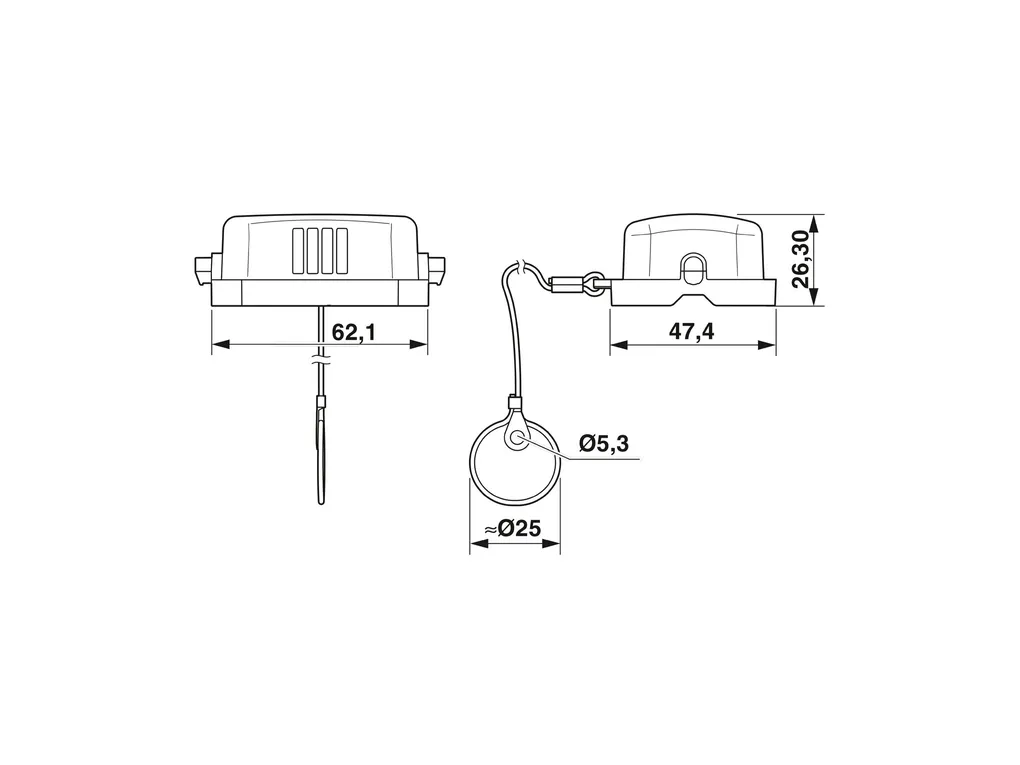

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1e7e02ff44730147b093eb728efdf5b8/-S204x204-FJPG Width: 47.4 mm Height: 26.3 mm Length: 71.5 mm Diameter: 40 mm |
| Material specifications | Material: PC Flammability rating according to UL 94: V0 Material, protective cover: PC |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Ambient temperature (operation): -40°C ... 125°C Resistance to UV radiation: yes |
| Standards and regulations | Resistance to UV radiation: yes |
| Mounting | Assembly instructions: Double eyelet for mounting on a cable / below screw head Plastic protective cover for short-term protection |
