LPT 16/ 1-10 BU - PCB terminal block

PCB terminal block, nominal current: 76 A, nominal cross section: 16 mm², number of rows: 1, number of positions per row: 1, product range: LPT 16/, pitch: 10 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: blue, Pin layout: Linear pinning, Solder pin [P]: 3.6 mm, type of packaging: packed in cardboard

Product Code: 1315041 Copia - Copy

Partner cod.: 1315041 Copia - Copy

PHOENIX CONTACT

Product properties	Product line: COMBICON Terminals XL Product type: Printed circuit board terminal Product family: LPT 16/ Number of positions: 1 Pitch: 10 mm Number of rows: 1 Pin layout: Linear pinning
Electrical properties	Nominal current I_N: 76 A Degree of pollution: 3
Connection data	Connection technology Nominal cross section: 16 mm² Conductor connection Connection method: Lever Push-in connection Conductor cross section rigid: 0.75 mm² ... 16 mm² (Conductor connection with open terminal point) 1.5 mm² ... 16 mm² (Push-in connection) Single-conductor/terminal point multi-stranded: 0.75 mm² ... 16 mm² Conductor cross section flexible: 0.75 mm² ... 25 mm² Conductor cross section AWG: 18 ... 4 Conductor cross section flexible, with ferrule without plastic sleeve: 0.75 mm² ... 16 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.75 mm² ... 16 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 4 mm² ... 6 mm² Stripping length: 18 mm ... 20 mm
Mounting	Mounting type: Wave soldering Pin layout: Linear pinning
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (10 - 16 Ãµm Sn) Metal surface soldering area (top layer): Tin (10 - 16 Ãµm Sn) Material data - housing Color (Housing): blue (5015) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to ENÃ60695-2-12: 850 Glow wire ignition temperature GWIT according to ENÃ60695-2-13: 775 Temperature for the ball pressure test according to ENÃ60695-10-2: 125°C Material data Ã¢Ã¢¬Ã¢ actuating element Color (Actuating element): orange (2003) Insulating material: PA GF Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0
Notes	General: The single-position PCB terminal block can be used for voltages up to 1500ÃV (DC) and 1000ÃV (AC). The relevant device standard and the appropriate required air clearances and creepage distances should be observed following installation
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 10 mm Width [w]: 11.9 mm Height [h]: 39.6 mm Length [l]: 32 mm Installed height: 36 mm Solder pin length [P]: 3.6 mm PCB design Hole diameter: 1.7 mm
Mechanical tests	Test for conductor damage and slackening Specification: IEC 60999-1:1999-11 Result: Test passed Pull-out test Specification: IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.75 mm² / solid / > 30 N 0.75 mm² / flexible / > 30 N 16 mm² / solid / > 100 N 25 mm² / flexible / > 135 N
Electrical tests	Temperature-rise test Specification: IEC 60947-7-4:2019-01 Requirement temperature-rise test: The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. Short-time withstand current Specification: IEC 60947-7-4:2019-01 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >Ã5ÃMÃ©

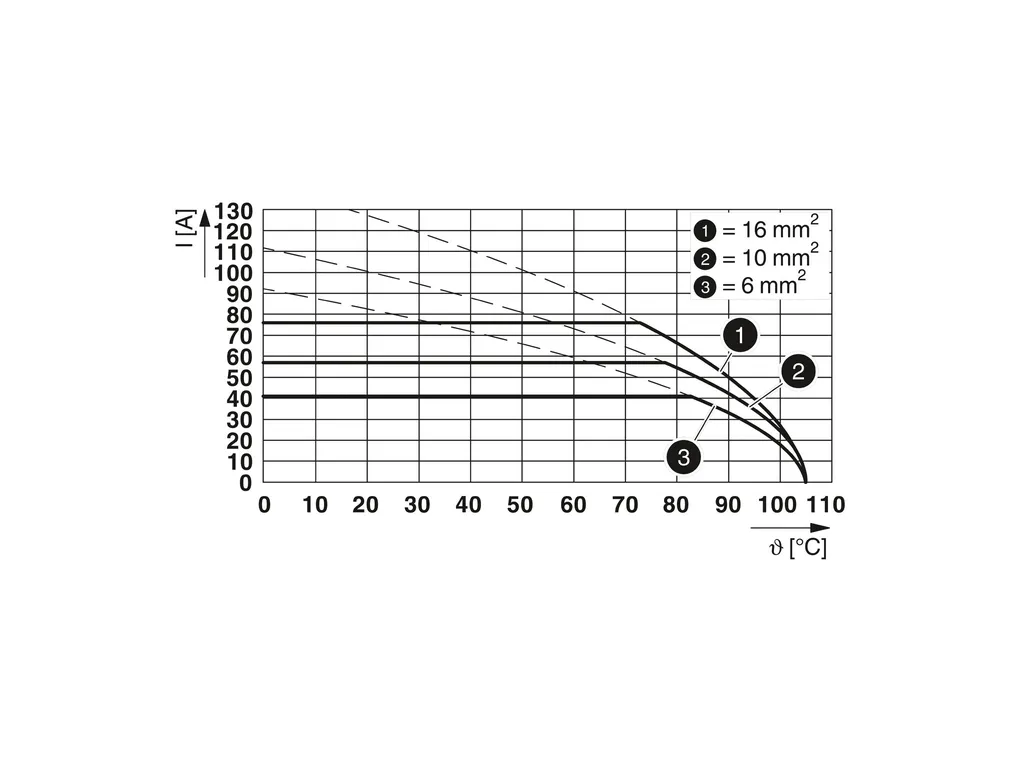

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min 50Ãm/s² (60.1ÃHzÃ...Ã150ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Glow-wire test Specification: IEC 60695-2-10:2013-04 Temperature: 850°C Time of exposure: 5 s Aging Specification: IEC 60947-7-4:2019-01 Ambient conditions Ambient temperature (operation): -40°C ... 105°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Packaging specifications	Type of packaging: packed in cardboard
