PRC 20/3-C2-FT25-MS2,5 - Device connector front mounting

Device connector front mounting, Range of articles: PRC 20, color: black, number of positions: 3, min. conductor cross section: 0.5 mm², max. conductor cross section: 2.5 mm², rated voltage: 400 V, rated current: 20 A, Connection method: Screw connection, Contact connection type: Pin, Setting option for release: 1. with a tool or 2. by hand, scope: DC

Product Code: 1313302 Copia - Copy

Partner cod.: 1313302 Copia - Copy

PHOENIX CONTACT

Notes	Order information:: Setting option for release: 1. with a tool or 2. by hand Note on application: For assembly notes, please refer to the packing slip

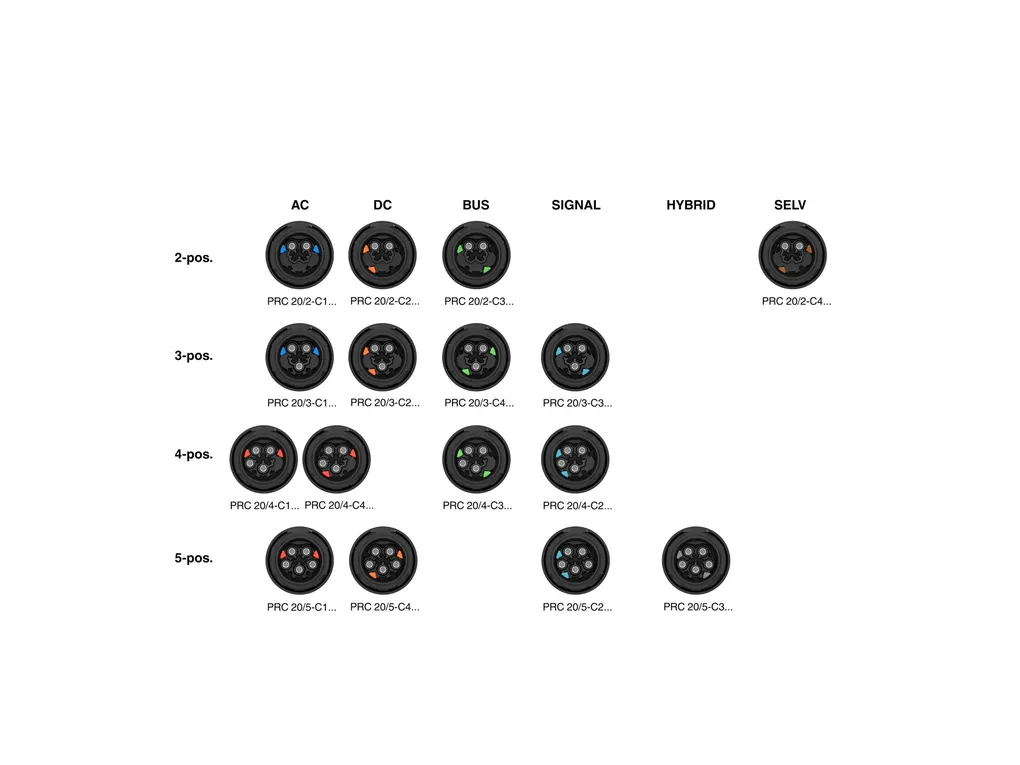

Product properties	Product type: Panel feed-through Product family: PRC 20 Area of application: DC Number of positions: 3 Connection profile: 2+PE Coding: 3-C2 Data management status Article revision: 03 Insulation characteristics Protection class: II
Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/169544/full/b1500?format=jpg Width: 34 mm Height: 38.4 mm Length: 53.7 mm
Electrical properties	Nominal voltage ATD: 400 V (III/2.00) in accordance with IEC 61984 400 V AC (III/2.00) in accordance with IEC 61535 600 V AC / DC (III/2.00) in accordance with UL 2238 / UL 2237 500 V DC (III/2.00) in accordance with IEC 61535 Rated current: 20 A (With 2.5 mm² conductor cross section in accordance with IEC 61535)
Material specifications	Color: black Flammability rating according to UL 94: V0
Cable/line	Single wire, cross section: 0.5 mm² 2.5 mm² Stripping length of the individual wire: 10 mm (Lay PE conductor 8 mm leading) Halogen-free: yes
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2 m / 2 h) IP69 Category of shock impact: IK08 (-25 °C) Ambient temperature (operation): -40 °C ... 85 °C (observe derating) Ambient temperature (storage/transport): -40 °C ... 70 °C Ambient temperature (assembly): -5 °C ... 85 °C
