PRC 20/5-C3-FC-FS2,5 6-14 - Coupler connector

Coupler connector, Range of articles: PRC 20, color: black, number of positions: 5, min. conductor cross section: 0.5 mm², max. conductor cross section: 2.5 mm², rated voltage: 400 V, rated current: 20 A, Connection method: Screw connection, Contact connection type: Socket, Setting option for release: 1. with a tool or 2. by hand, scope: HYBRID

Product Code: 1308665 Copia - Copy

Partner cod.: 1308665 Copia - Copy

PHOENIX CONTACT

Notes	Order information:: Setting option for release: 1. with a tool or 2. by hand Note on application: For assembly notes, please refer to the packing slip
Product properties	Product type: Installation connector Product family: PRC 20 Area of application: HYBRID Number of positions: 5 Connection profile: 4+PE Coding: 5-C3 Data management status Article revision: 04 Insulation characteristics Protection class: II
Electrical properties	Nominal voltage ATD: 400 V (III/2.00) in accordance with IEC 61984 400 V AC (III/2.00) in accordance with IEC 61535 600 V AC / DC (III/2.00) in accordance with UL 2238 / UL 2237 500 V DC (III/2.00) in accordance with IEC 61535 Rated current: 20 A (With 2.5 mm² conductor cross section in accordance with IEC 61535)
Dimensions	Width: 28.5 mm Height: 28.5 mm Length: 80.4 mm
Material specifications	Color: black Material: EPDM (Cable seal) EPDM (Housing seal) PPE (Housing) PPE (Contact carriers) PPE (Cable gland) CuZn (Contact material, Pb < 0.1) Flammability rating according to UL 94: V0
Cable/line	Single wire, cross section: 0.5 mm² 2.5 mm² Stripping length of the individual wire: 10 mm (Lay PE conductor 8 mm leading) Halogen-free: yes

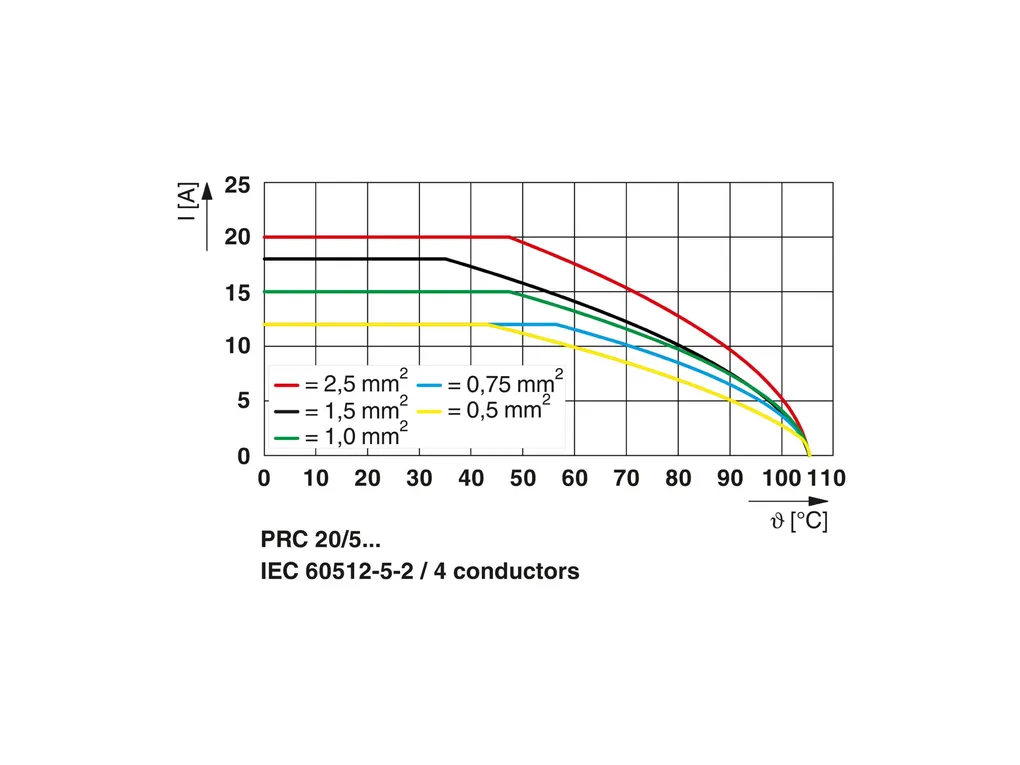

Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2 m / 2 h) IP69 Category of shock impact: IK08 (-25 °C) Ambient temperature (operation): -40 °C ... 85 °C (observe derating) Ambient temperature (storage/transport): -40 °C ... 75 °C Ambient temperature (assembly): -5 °C ... 85 °C
