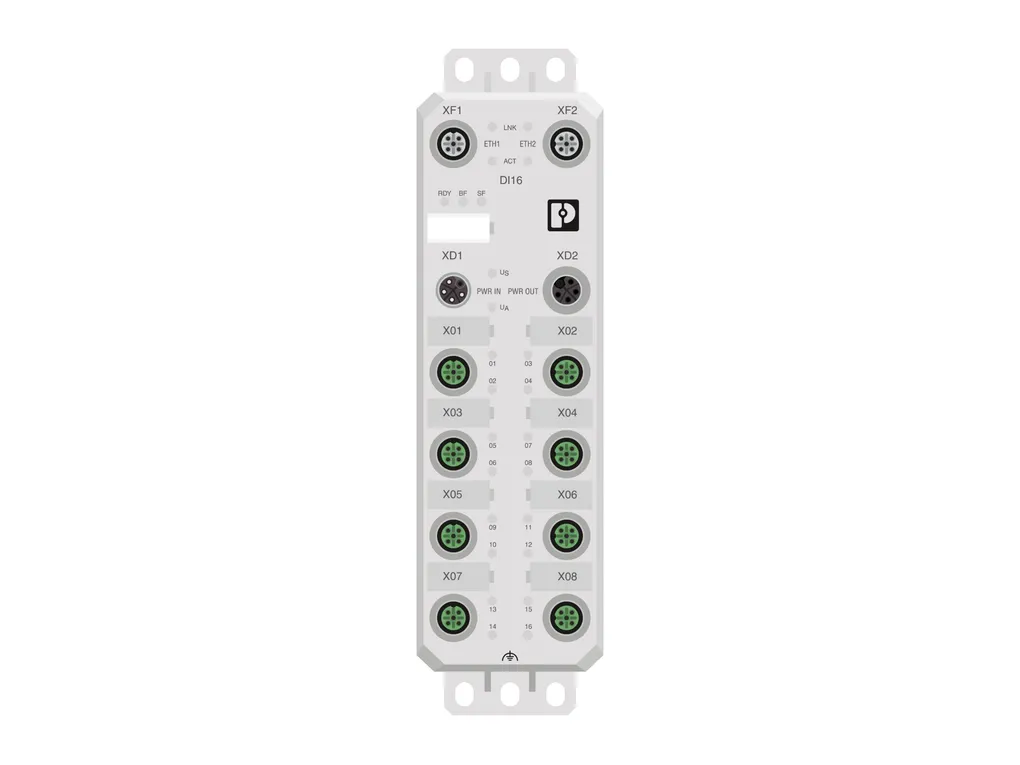

AXL E PN DI16 M12 6M-L - Digital module

Axioline E, Digital input device, PROFINET, M12 connector (D-coded), Digital inputs: 16, 24 V DC, connection technology: 4-conductor, degree of protection: IP65/IP67/IP69

Product Code: 1300834 Copia - Copy

Partner cod.: 1300834 Copia - Copy

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/39804/full/b1500?format=jpg Width: 60 mm Height: 212 mm Depth: 30.2 mm
Notes	Note on application Note on application: Only for industrial use
Material specifications	Housing material: Zinc die-cast
Interfaces	PROFINET Number of interfaces: 2 Connection method: M12 connector (D-coded) Note on the connection method: Push-pull fast connection according to IEC 61076-2-010 or screw connection according to IEC 61076-2-101 Number of positions: 4 Transmission speed: 100 Mbps (with auto negotiation) System-specific protocols: PROFINET protocols LLDP PROFINET protocols MRP client PROFINET protocols DCP PROFINET protocols DCE/RPC Protocols supported: HTTP SNMP v1
System properties	PROFINET Device function: PROFINET device Update rate: 1 ms Conformance Class: C (IRT switch) Supported functions: FSU < 600 ms I&M functions Device ID: 0183_hex Vendor ID: 00B0_hex
Input data	Digital: Input name: Digital inputs Description of the input: EN 61131-2 types 1 and 3 Number of inputs: 16 Cable length: max. 30 m (to the sensor) Connection method: M12 connector (A-coded) Note on the connection method: Push-pull fast connection according to IEC 61076-2-010 or screw connection according to IEC 61076-2-101 Connection technology: 4-conductor Input voltage range "0" signal: 0 V ... 5 V DC Input voltage range "1" signal: 11 V DC ... 30 V DC Nominal input voltage U_IN: 24 V DC Nominal input current at U_IN: typ. 2.5 mA Sensor current per channel: max. 2 A (from U_S) Total sensor current: max. 2 A (per device) Input filter time: 3000 Ãµs 1000 Ãµs (Default) < 100 Ãµs (Filter disabled) Protective circuit: Reverse polarity protection; yes Short-circuit protection; yes Overload protection; yes
Product properties	Product type: I/O component Product family: Axioline E Type: Stand-Alone Data management status Article revision: 00 Insulation characteristics Pollution degree: 2 (IEC 60664-1, EN 60664-1)
Electrical properties	Supply: Sensors Designation: Supply of the logic and sensors (U_S) Connection method: M12 connector (L-coded) Note on the connection method: Screw connection in accordance with IEC 61076-2-111 Number of positions: 4 Supply voltage: 24 V DC Supply voltage range: 18 V DC ... 30 V DC (including all tolerances, including ripple) Current consumption: typ. 65 mA max. 16 A Protection: max. 16 A Supply: Actuators Designation: Supply of actuators (U_A) for additional devices Connection method: M12 connector (L-coded) Note on the connection method: Screw connection in accordance with IEC 61076-2-111 Number of positions: 4 Supply voltage: 24 V DC (Nominal voltage) Supply voltage range: 18 V DC ... 30 V DC (including all tolerances, including ripple) Current consumption: typ. 4 mA max. 16 A Protection: max. 16 A Electrical isolation/isolation of the voltage ranges Test voltage: 24 V supply (logic and sensor supply U_S) / Ethernet interface 1: 1500 V AC, 50 Hz, 1 min. Test voltage: 24 V supply (logic and sensor supply U_S) / Ethernet interface 2: 1500 V AC, 50 Hz, 1 min. Test voltage: 24 V supply (logic and sensor supply U_S) / functional ground: 660 V AC, 50 Hz, 1 min. Test voltage: Ethernet interface 1 / functional ground: 1500 V AC, 50 Hz, 1 min. Test voltage: Ethernet interface 2 / functional ground: 1500 V AC, 50 Hz, 1 min. Test voltage: Ethernet interface 1 / Ethernet interface 2: 1500 V AC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply U_A) / 24 V supply (logic and sensor supply U_S): 660 V AC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply U_A) / Ethernet interface 1: 1500 V AC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply U_A) / Ethernet interface 2: 1500 V AC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply U_A) / functional ground: 660 V AC, 50 Hz, 1 min.
Connection data	Connection method: M12 connector Tightening torque: 0.4 Nm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25 °C ... 70 °C Degree of protection: IP65/IP67/IP69 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m above sea level) Ambient temperature (storage/transport): -25 °C ... 85 °C Permissible humidity (operation): 5 % ... 95 % Permissible humidity (storage/transport): 5 % ... 95 %
Standards and regulations	Protection class: III (IEC 61140, EN 61140, VDE 0140-1)
