| Product properties | Product type: Antenna Radiation characteristics: Omnidirectional Gain: 1.5 dBi (1.7ÃGHzÃ...Ã2.0ÃGHz) 2 dBi (2.0ÃGHzÃ...Ã2.7ÃGHz) 1.5 dBi (2.7ÃGHzÃ...Ã4.2ÃGHz) 2.5 dBi (4.9ÃGHzÃ...Ã5.9ÃGHz) 3 dBi (5.9ÃGHzÃ...Ã7.1ÃGHz) Polarization: Linear vertical |
| Electrical properties | Frequency band: 2.4 GHz 5 GHz 6 GHz Frequency range: 1.7 GHz ... 7.1 GHz Impedance: 50 é Maximum capacity: 120.00 W |

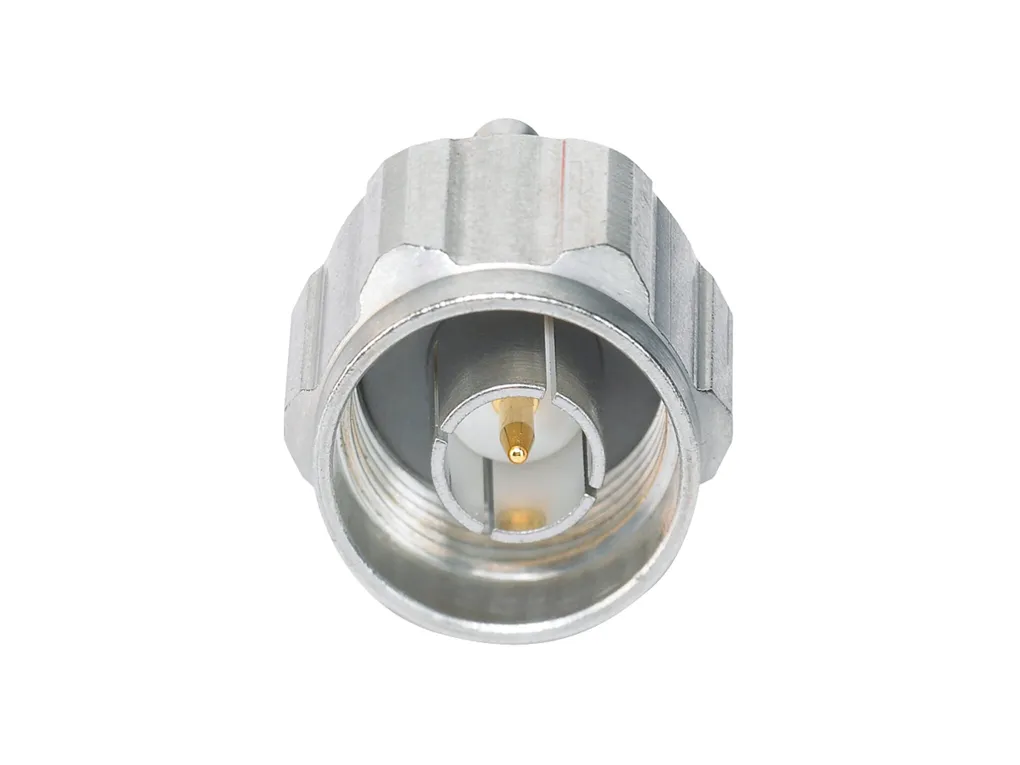

| Connection data | Connection technology Connection method: N (male) |
| Dimensions | Length: 55 mm Diameter: 22 mm |
| Material specifications | Material: ASA, Acrylic ester styrene-acrylonitrile Flammability rating according to UL 94: HB |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP68/IP69K Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | Electronic devices in rail vehicles Shock (operation): In accordance with ENÃ61373 (categoryÃ1, classÃB) Vibration (operation): In accordance with ENÃ61373 (categoryÃ1, classÃB) |
| Standards and regulations | Standards/specifications: ENÃ45545-2 ENÃ50155 Note: Fire protection on railway vehicles Railway application |
| Mounting | Mounting type: Control cabinet Assembly instructions: Accessories required Outdoors and indoors Connection method: N (male) |
