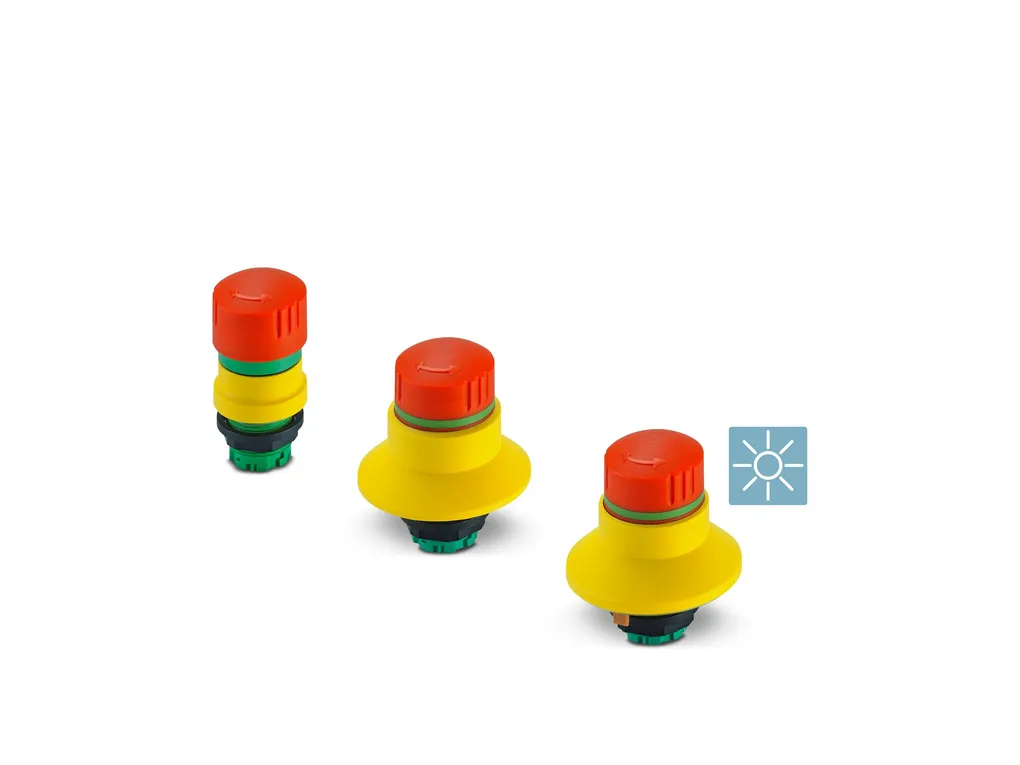

| Product properties | Product type: Actuator Product family: Modular emergency stop switches |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2c41918d96bd234b84b8035eef49d949/-S204x204-FJPG Depth: 60.9 mm Diameter: 55 mm |
| Material specifications | Flammability rating according to UL 94: V2 Housing material: PA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 (with professional installation in the appropriate installation space) Ambient temperature (operation): -30°C ... 65°C Ambient temperature (storage/transport): -50°C ... 85°C Maximum altitude: max. 2000 m (Above sea level) Shock: 15gÃ/Ã11Ãms, in accordance with IEC 60068-2-27 Vibration (operation): 10ÃHzÃ...Ã500ÃHz, 0.35Ãmm amplitude, 5g, in accordance with IEC 60068-2-6 |
| Mounting | Mounting type: Panel mount Assembly instructions: Mounting nut torque: max. 2.5ÃNm Mounting position: any Mounting hole diameter: 22.30 mm |
