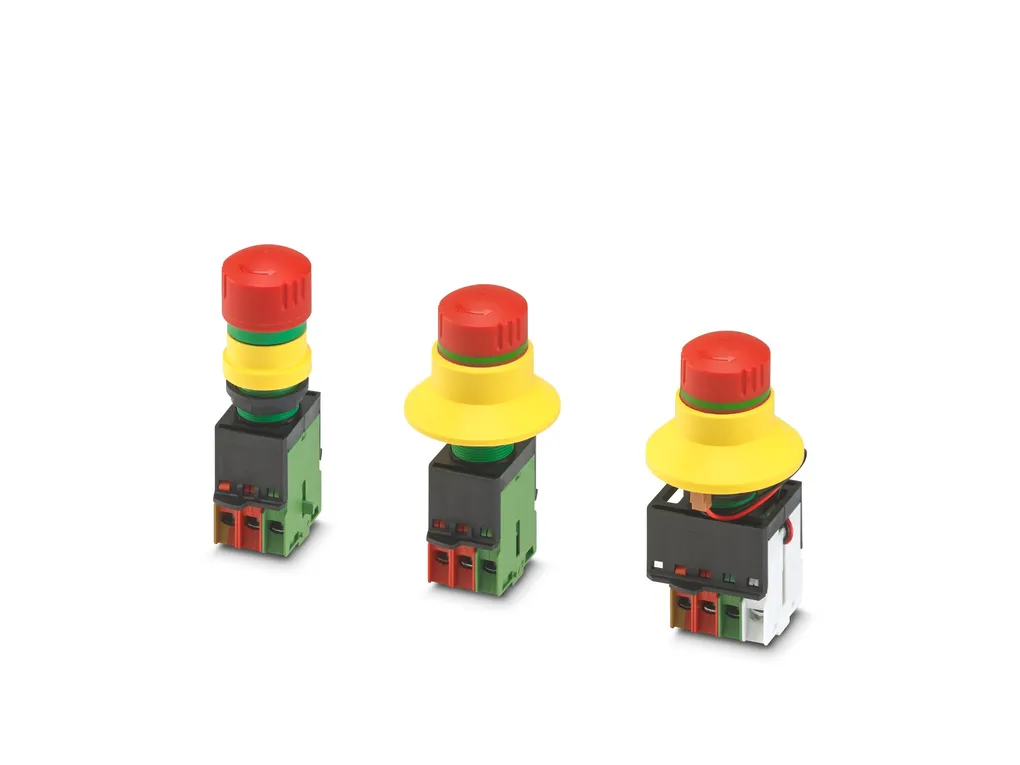

| Product properties | Product type: Contact module Product family: Modular emergency stop switches Application: Safe shutdown Insulation characteristics Protection class: II Insulation characteristicsââ¬Ã¢¹ Overvoltage category: III Pollution degree: 3 |
| Electrical properties | Rated surge voltage: 4 kV |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/03bec4c8ae359d46836957dd19ef63a5/-S204x204-FJPG Width: 9.1 mm Height: 34.8 mm Depth: 44.6 mm |
| Material specifications | Flammability rating according to UL 94: V0 Housing material: PA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -30°C ... 70°C (in conjunction with lighting moduleÃmax.Ã65°C) Ambient temperature (storage/transport): -50°C ... 85°C Maximum altitude: max. 2000 m (Above sea level) Shock: 15gÃ/Ã11Ãms, in accordance with IEC 60068-2-27 Vibration (operation): 10ÃHzÃ...Ã500ÃHz, 0.35Ãmm amplitude, 5g, in accordance with IEC 60068-2-6 |
| Mounting | Mounting type: Plug-in mounting Mounting position: any Connection method: Screw connection |
