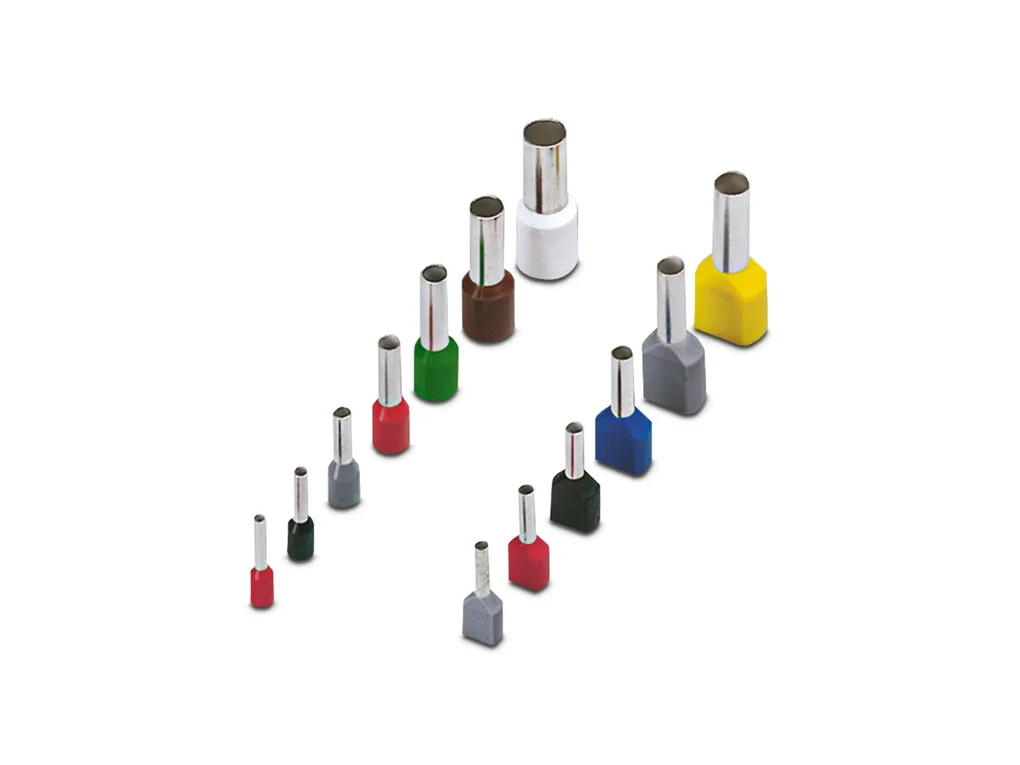

| Product properties | Product type: Cable end sleeve Conductor category: stranded conductors, class 2, 5, 6 / B, C, K, M |
| Connection data | Conductor connection Conductor cross section flexible max.: 10 mm² Conductor cross section AWG max.: 8 Stripping length: 19 mm |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0e65c80f1003a04db2cd649137785dec/-S204x204-FJPG Sleeve length: 14 mm Maximum stripping length: 19 mm Ferrule diameter: 6.5 mm Sleeve wall thickness: 0.2 mm Insulating collar thickness: 0.4 mm Inner dimensions of the insulating collar: 7.2 mm |
| Material specifications | Color: brown Material: CU-DHP Flammability rating according to UL 94: HB Coating: tin-plated (galvanic) Components: free from silicone and halogen |
| Mechanical properties | Technical data Sleeve length: 14 mm |
| Environmental and real-life conditions | Ambient conditions Permanent temperature: 105°C (-40ðC no load / 0ðC dynamic load) Short-term temperature: 120°C |
| Standards and regulations | Design according to standard: DINÃ46228-4 |
