Available

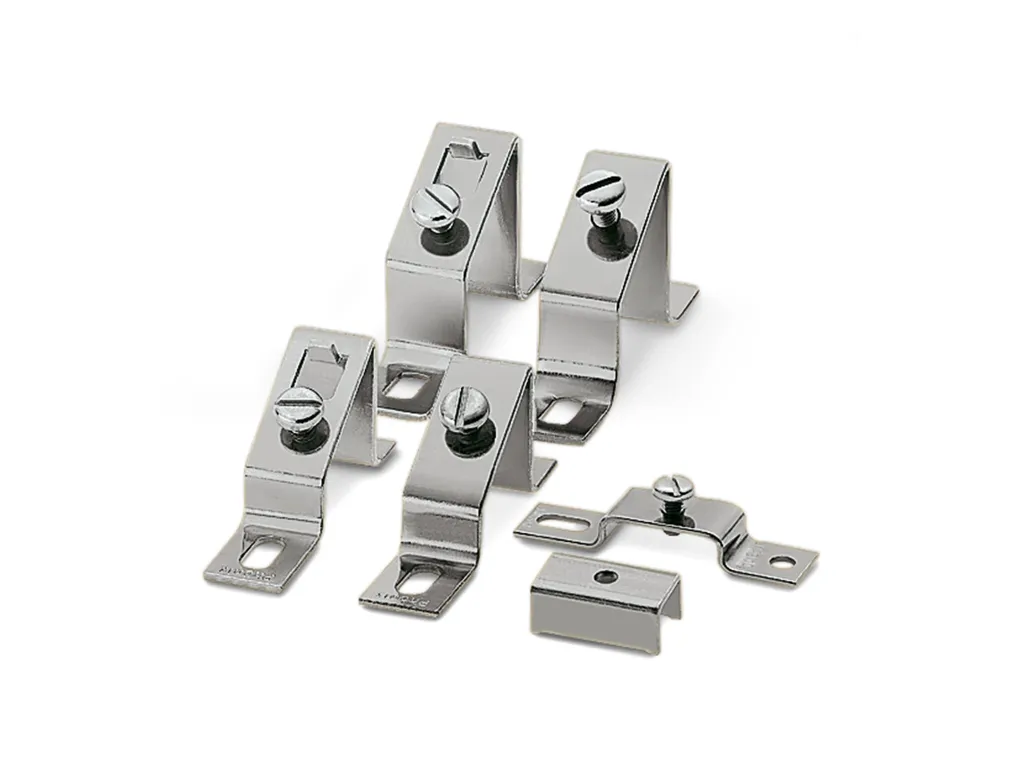

BG/S - Angled brackets

Angled brackets with M 6 screw, for fixing DIN rails at an angle of 30°, height: 35.4 mm

Product Code: 1201086 Copia - Copy

Partner cod.: 1201086 Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: Mounting material
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/315655fb3645764ea122a3173c6449f3/-S204x204-FJPG Width: 19.7 mm Height: 87 mm Depth: 35.4 mm Length: 87 mm
Material specifications	Color: silver Material: Steel
Mounting	Mounting type: screws

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Technical_drawing_10198.pdf
