PHOENIX CONTACT 1163114
PHOENIX CONTACT 1163114
PHOENIX CONTACTNot available

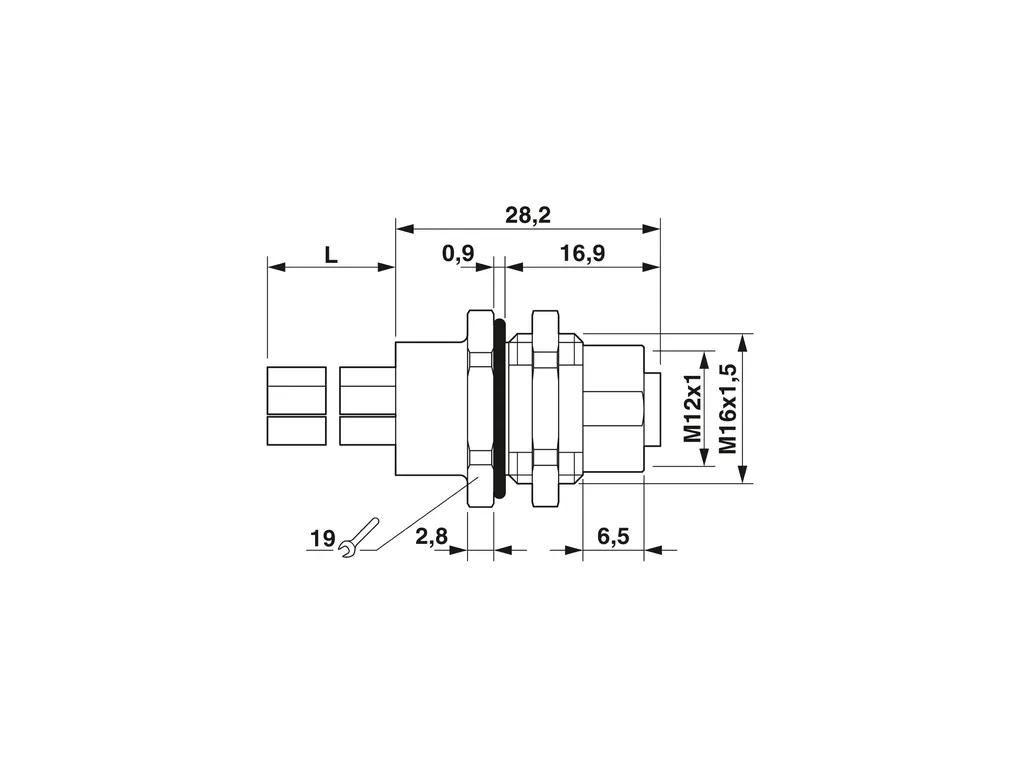

SACC-DSI-M12FSL-4FE-M16XL/1,5 - Device connector, rear mounting

Device connector, rear mounting, Power, 5-position, Socket, straight, M12, coding: L, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 1.5 m, 2.50 mm2, PEX litz wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238580
Product Code: 1163114
Partner cod.: 1163114
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
FE not connected to metal parts that can be touched, no protective function
Lock nut is included in the scope of delivery
Contact connection method: Crimp connection
MountingMounting type: Rear mounting
Assembly instructions: Tightening limitation
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Power
Number of positions: 5
No. of cable outlets: 1
Shielded: no
Coding: L
Thread type: M12
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA
Material for screw connection: Zinc die-cast, nickel-plated
Electrical propertiesRated voltage in acc. with IEC 61076-2-101: 63 V
Rated surge voltage: 1.5 kV
1.5 kV AC/DC
Nominal voltage UN: 63 VÂDC
Nominal current IN: 16 A
Test voltage: 1.5 kV
Test voltage Core/Core: 6 kV
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Socket
Conductor cross section: 2.5 mm²
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Coding: L
Connection 2
Head design: free cable end
Cable/lineCable length: 1.5 m
Cable type: PEX litz wire
Signal type/category: Power
Single wire, color: brown 1, white 2, blue 3, black 4, gray FE
Cable cross section: 2.5 mm²
AWG signal line: 14
Test voltage Core/Core: 6 kV
Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation)
-25°C ... 105°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
-25°C ... 105°C (Cable, flexible installation)
-40°C ... 105°C (cable, fixed installation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-111
Note: In line with
