LPT 16/ 6-10,0-ZB - PCB terminal block

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: LPT 16/, pitch: 10 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: green, Pin layout: Zigzag pinning W, Solder pin [P]: 3.6 mm, type of packaging: packed in cardboard

Product Code: 1119815

Partner cod.: 1119815

PHOENIX CONTACT

Product properties	Product line: COMBICON Terminals XL Product type: Printed circuit board terminal Product family: LPT 16/ Number of positions: 6 Pitch: 10 mm Number of connections: 6 Number of rows: 1 Number of potentials: 6 Pin layout: Zigzag pinning W
Electrical properties	Nominal current I_N: 76 A Nominal voltage U_N: 1000 V Degree of pollution: 3 Rated voltage (III/3): 1000 V Rated surge voltage (III/3): 8 kV Rated voltage (III/2): 1000 V Rated surge voltage (III/2): 8 kV Rated voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV
Connection data	Connection technology Nominal cross section: 16 mm² Conductor connection Connection method: Lever Push-in connection Conductor cross section rigid: 0.75 mm² ... 16 mm² (Conductor connection with open terminal point) 1.5 mm² ... 16 mm² (Push-in connection) Single-conductor/terminal point multi-stranded: 0.75 mm² ... 16 mm² Conductor cross section flexible: 0.75 mm² ... 25 mm² Conductor cross section AWG: 18 ... 4 Conductor cross section flexible, with ferrule without plastic sleeve: 0.75 mm² ... 16 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.75 mm² ... 16 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 4 mm² ... 6 mm² Stripping length: 18 mm ... 20 mm
Mounting	Mounting type: Wave soldering Pin layout: Zigzag pinning W
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (10 - 16 Ãµm Sn) Metal surface soldering area (top layer): Tin (10 - 16 Ãµm Sn) Material data - housing Color (Housing): green (6021) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to ENÃ60695-2-12: 850 Glow wire ignition temperature GWIT according to ENÃ60695-2-13: 775 Temperature for the ball pressure test according to ENÃ60695-10-2: 125°C Material data Ã¢Ã¢¬Ã¢ actuating element Color (Actuating element): orange (2003) Insulating material: PA GF Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 10 mm Width [w]: 61.9 mm Height [h]: 39.6 mm Length [l]: 32 mm Installed height: 36 mm Solder pin length [P]: 3.6 mm PCB design Hole diameter: 1.7 mm
Mechanical tests	Test for conductor damage and slackening Specification: IEC 60999-1:1999-11 Result: Test passed Pull-out test Specification: IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.75 mm² / solid / > 30 N 0.75 mm² / flexible / > 30 N 16 mm² / solid / > 100 N 25 mm² / flexible / > 135 N
Electrical tests	Temperature-rise test Specification: IEC 60947-7-4:2019-01 Requirement temperature-rise test: The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. Short-time withstand current Specification: IEC 60947-7-4:2019-01 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >Ã5ÃMÃ© Air clearances and creepage distances \| Specification: IEC 60947-7-4:2019-01 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 1000 V Rated surge voltage (III/3): 8 kV minimum clearance value - non-homogenous field (III/3): 8 mm minimum creepage distance (III/3): 12.5 mm Rated insulation voltage (III/2): 1000 V Rated surge voltage (III/2): 8 kV minimum clearance value - non-homogenous field (III/2): 8 mm minimum creepage distance (III/2): 8 mm Rated insulation voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV minimum clearance value - non-homogenous field (II/2): 5.5 mm minimum creepage distance (II/2): 5.5 mm

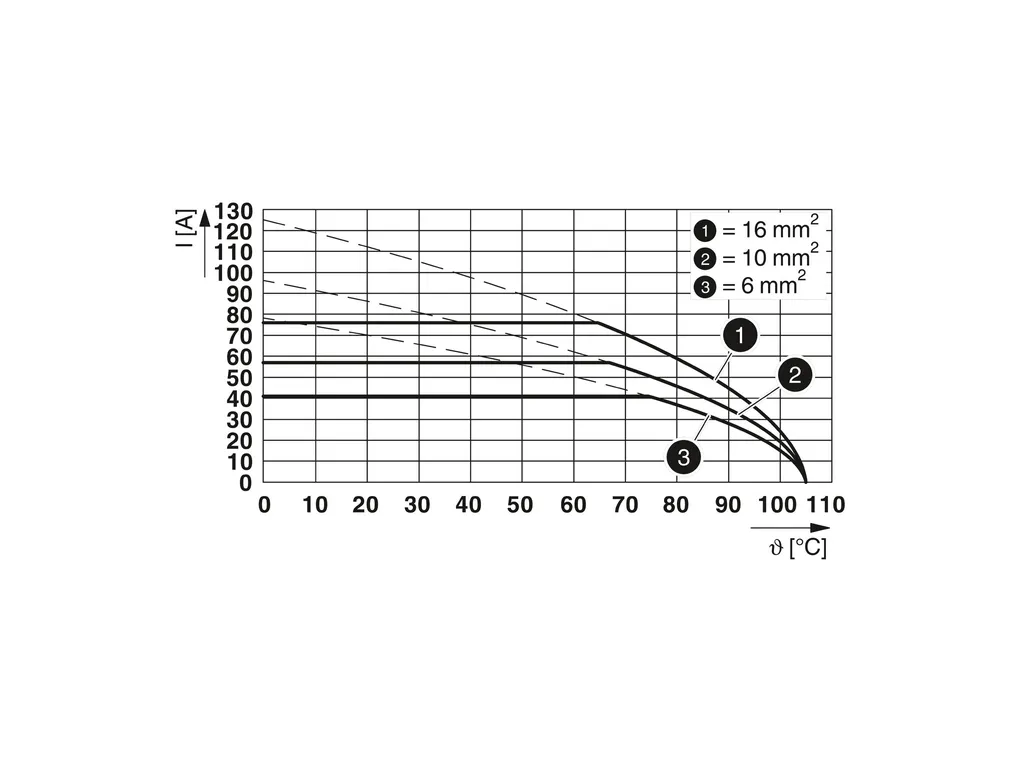

Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1Ãoctave/min 50Ãm/s² (60.1ÃHzÃ...Ã150ÃHz) Amplitude: 0.35Ãmm (10ÃHzÃ...Ã60.1ÃHz) Test duration per axis: 2.5 h Glow-wire test Specification: IEC 60695-2-10:2013-04 Temperature: 850°C Time of exposure: 5 s Aging Specification: IEC 60947-7-4:2019-01 Ambient conditions Ambient temperature (operation): -40°C ... 105°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C
Packaging specifications	Type of packaging: packed in cardboard
