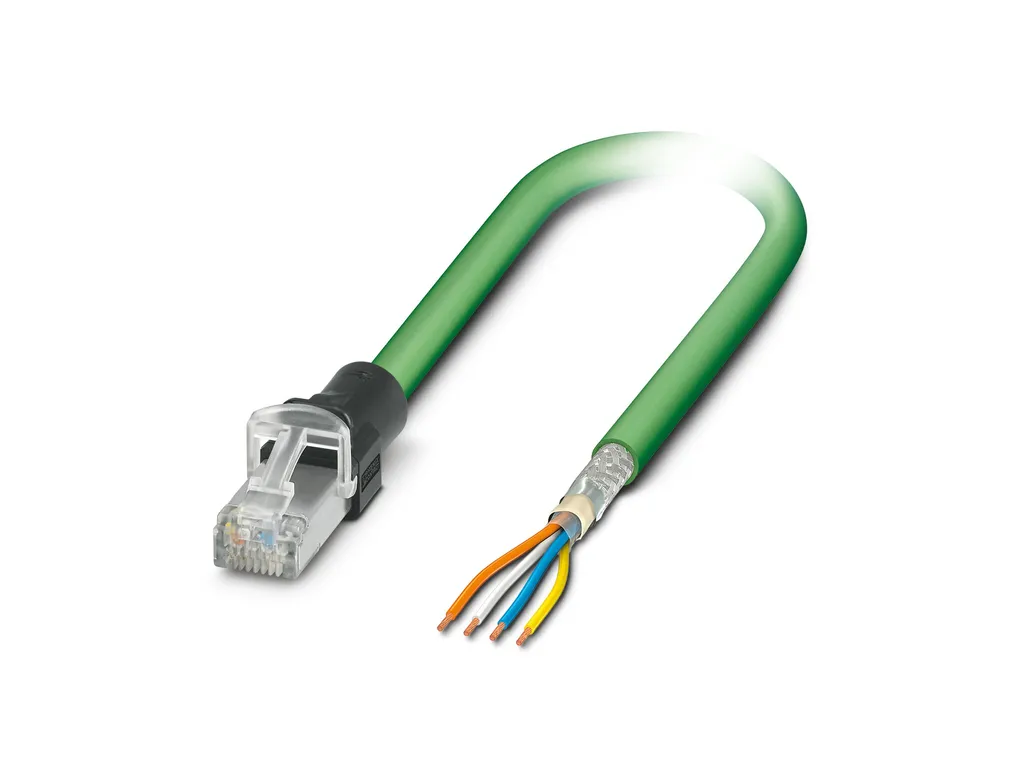

| Product properties | Product type: Data cable preassembled Sensor type: PROFINET Number of positions: 4 Shielded: yes Cable outlet: straight Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/2): 72 V Rated current: 1.75 A Insulation resistance: > 1 Té Contact resistance: < 20 mé Transmission characteristics (category): CAT5 Transmission speed: 100 Mbps |
| Mechanical properties | Mechanical data Insertion force per signal contact: 50.00 N Extraction force per signal contact: 30 N |
| Material specifications | Flammability rating according to UL 94: V2 Contact material: CuSn6 Contact surface material: Ni/Au Contact carrier material: PC Housing material: PP |
| Dimensions | Width: 13.8 mm Height: 14.8 mm Length: 44.2 mm |
| Connection data | Connection technology Connection method: Pierce connection Conductor connection Connection method: Pierce connection |
| Connector | Connection 1 Type: Plug straight RJ45 Shielded: yes Handle color: black Insertion/withdrawal cycles: ââ°¥ 750 750 Degree of protection: IP20 Number of positions: 4 Connection 2 Type: free cable end |
| Cable/line | Cable length: 1.00 m PROFINET PVC stranded CAT5Ã[93B] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9641ad6bfe7a694da352f4faa5bb90c4/-S204x204-FJPG Shielded: yes UL AWM Style: 21694 Cable weight: 67 kg/km Cable type: PROFINET PVC stranded CAT5 Short symbol: 2YY(ST)CY Cable type (abbreviation): 93B Signal type/category: PROFINET CAT5 (IEC 11801), 100 Mbps EtherCATî CAT5 (IEC 11801), 100 Mbps Cable structure: 1x4xAWG22/7, SF/TQ External cable diameter: 6.5 mm ñ0.2Ãmm Outer sheath, material: PVC External sheath, color: green RAL 6018 Thickness, outer sheath: approx. 0.9 mm Material, inner sheath: PVC Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 7x 0.25 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² Material wire insulation: PE Wire diameter incl. insulation: 1.55 mm Single wire, color: white, yellow, blue, orange Overall twist: Star quad Shielding: Aluminum-coated foil, tinned copper braided shield Optical shield covering: 85 % Nominal voltage, cable: 600 V Test voltage Core/Core: 2000 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 2000 V (50ÃHz, 1Ãmin.) Cable insulation resistance: ââ°¥ 500 Mé*km Coupling resistance: ââ°¤ 20.00 mé/m (at 10 MHz) Wave impedance: 100 é ñ15Ãé (at 100 MHz) Loop resistance: ââ°¤ 120.00 é/km Signal runtime: 5.3 ns/m Signal speed: 0.66 c Minimum bending radius, fixed installation: 3 x D Minimum bending radius, flexible installation: 7 x D Damping: 2.1 dB (with 1 MHz) 4 dB (at 4 Ãà Hz) 6.3 dB (at 10 MHz) 8 dB (at 16 MHz) 9 dB (at 20ÃÃà Hz) 11.4 dB (at 31.25ÃÃà Hz) 16.5 dB (at 62.5ÃÃà Hz) 21.3 dB (at 100 MHz) Near end crosstalk attenuation (NEXT): 80 dB (with 1 MHz) 76 dB (at 4 Ãà Hz) 70 dB (at 10 MHz) 65 dB (at 16 MHz) 63 dB (at 20ÃÃà Hz) 60 dB (at 31.25ÃÃà Hz) 55 dB (at 62.5ÃÃà Hz) 50 dB (at 100 MHz) Resistance to oil: Resistant to oil to a limited extent Flame resistance: according to ULÃ1685 (CSA FT 4) Other resistance: UV resistant According to ULÃ1581, Section 1200 Ambient temperature (operation): -40°C ... 70°C (Cable, flexible installation) -40°C ... 70°C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C (RJ45 connector) Ambient temperature (storage/transport): -40°C ... 85°C (RJ45 connector) |
| Standards and regulations | Standards/specifications: IEC 60603-7 |
