| Product properties | Type: Male Product type: Replacement plug Product family: TERMITRAB complete Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 24 VÃDC 24 VÃAC |
| Connection data | Connection method: pluggable |

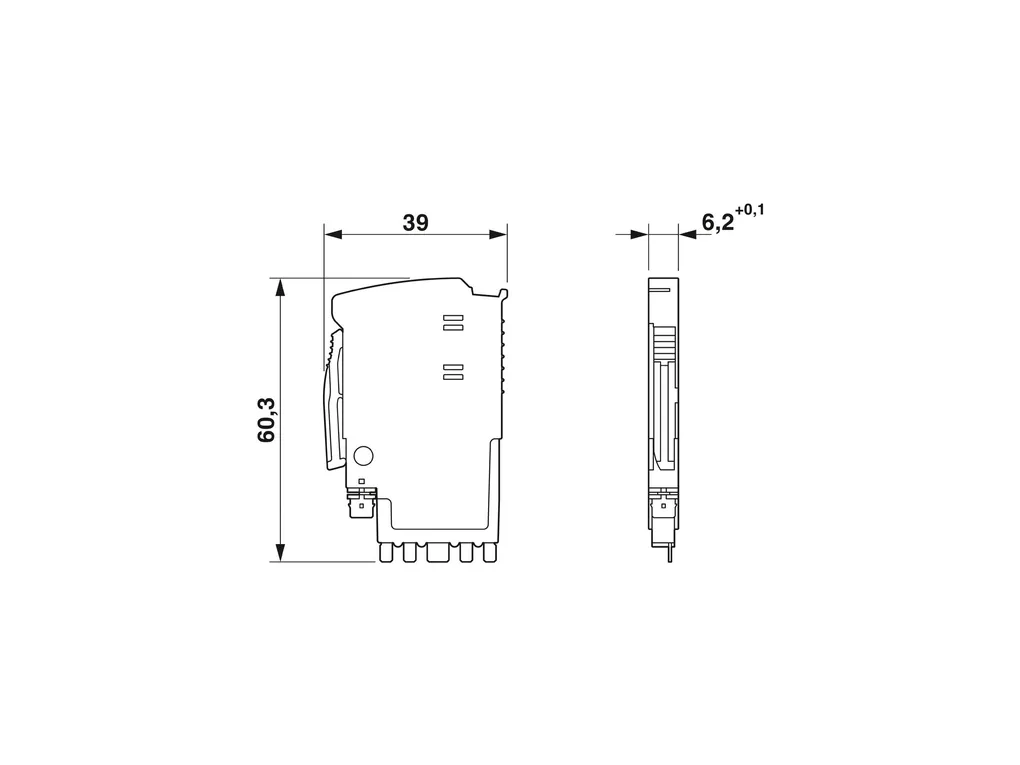

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/72506de348af114582e6e234e5697d3c/-S204x204-FJPG Width: 6.2 mm +0.1Ãmm Height: 39 mm Depth: 60.3 mm |
| Material specifications | Flammability rating according to UL 94: V-0 Insulating material: PBT Housing material: PBT |
| Protective circuit | Direction of action: Line-Line & Line-Earth Ground Maximum continuous voltage UC: 36 VÃDC 30 VÃAC Rated current: 2.5 A (60°CÃfor insulated systems) Surge protection fault message: optical |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 4000 m (amsl) Permissible humidity (operation): 5 % ... 95 % |
| Standards and regulations | Standards/specifications: IEC 61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 EN 61643-21 Standards/specifications: ENÃ61643-21 Note: 2001 + A1:2009 + A2:2013 |
| Mounting | Mounting type: on base element |
