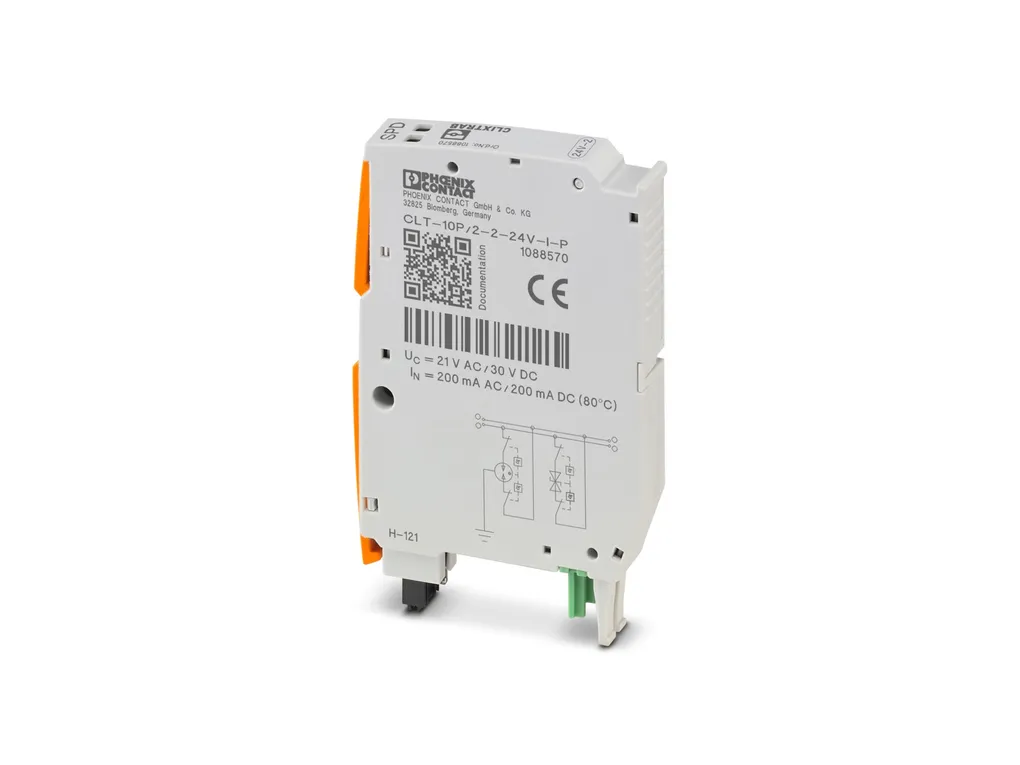

| Product properties | IEC test classification: C1 C2 C3 D1 Type: DIN rail module, two-section, divisible Product type: Surge protection for MCR technology Product family: CLIXTRAB Insulation characteristics Overvoltage category: III Pollution degree: 3 |
| Electrical properties | Nominal voltage UN: 24 VÃDC |
| Connection data | Connection method: pluggable |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/817dc5e597a32e48ba12687425ec0495/-S204x204-FJPG Width: 10.3 mm Height: 53.25 mm Depth: 81.9 mm |
| Material specifications | Flammability rating according to UL 94: V-0 Insulating material: PA 6.6+GV 20 % Housing material: PA 6.6+GV 20Ã% |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Direction of action: Line-Line & Line-Earth Ground Maximum continuous voltage UC: 30 VÃDC 21 VÃAC Rated current: 200 mA (80ðC) Operating effective current IC at UC: ââ°¤ 5 õA Residual current IPE: ââ°¤ 1 õA Total discharge current Itotal (8/20)Ãõs: 10 kA Voltage protection level Up (line-line): ââ°¤ 60 V (C1 - 700 V/350 A) ââ°¤ 95 V (C3 - 100ÃA) Voltage protection level Up (line-earth): ââ°¤ 900 V (C1 - 2ÃkV / 1ÃkA) ââ°¤ 900 V (C2 - 10 kV / 5 kA) ââ°¤ 1050 V (C3 - 100ÃA) Response time tA (line-line): ââ°¤ 1 ns Response time tA (line-earth): ââ°¤ 100 ns Input attenuation aE, sym.: typ. 0.3 dB (ââ°¤Ã8,5ÃMHz / 150Ãé) Input attenuation aE, asym.: typ. 0.3 dB (ââ°¤Ã14,5ÃMHz / 150Ãé) Cut-off frequency fg (3ÃdB), sym. in 150Ãé system: typ. 60 MHz Cut-off frequency fg (3ÃdB), asym. (signal ground) in 150Ãé system: typ. 60 MHz Capacity (Core-Core): typ. 45 pF Capacity (line-signalground): typ. 30 pF Surge protection fault message: optical Max. required back-up fuse: 200 mA (T) Impulse durability (line-line): C1 - 700ÃV / 350ÃA C3 - 100ÃA Impulse durability (line-earth): C1 - 2ÃkV / 1ÃkA C2 ââ¬Ã¢ 10 kV / 5 kA C3 - 100ÃA D1 - 1,25ÃkA Pulse reset time (line-earth): ââ°¤ 200Ãms |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 5g (Half-sine / 11 ms / 3x ñX, ñY, ñZ) 10g (Half-sine / 8Ãms / 3x ñX, ñY, ñZ) 5g (Half-sine / 30Ãms / 3x ñX, ñY, ñZ) Vibration (operation): 0,58g (5 ... 150ÃHz / 5Ãh / X, Y, Z) 1g (5 ... 2000ÃHz / 5Ãh / X, Y, Z) |
| Standards and regulations | Standards/specifications: IEC 61643-21 ENÃ61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 2001 + A1:2009 + A2:2013 |
| Mounting | Mounting type: on base element |
