| Notes | General: for contact inserts HC-B24, BB46, D64, DD108, HV10/16, M |

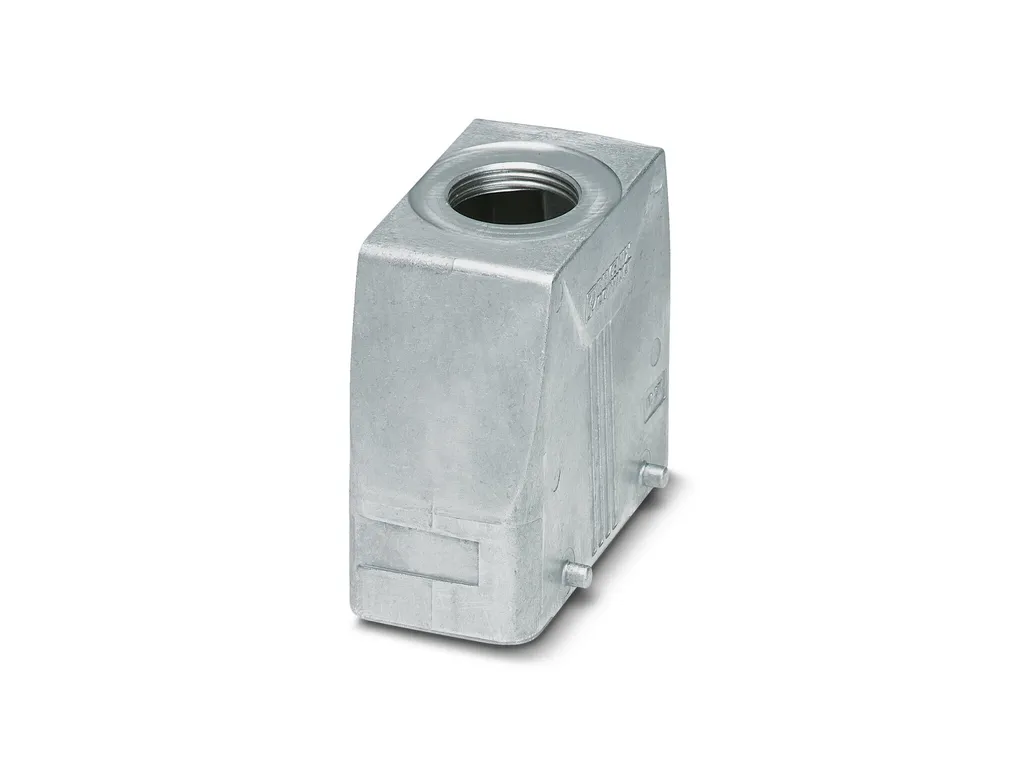

| Product properties | Type: B24 Product type: Housing with locking latch Application: Standard No. of cable outlets: 2 Type of the screw connection: 2x M25 Housing type: Box mounting bases Cable outlet: lateral Pg screw connection: none |
| Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22520/full/b250?format=jpg Width: 57 mm Height: 84.7 mm Length: 144 mm Hole diameter: 5.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) Seal material: NBR, conductive Housing surface material: uncoated Locking latch material: PA Impact strength: IK08 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Type of the screw connection: 2x M25 Locking type: Latch |
| Mounting | Assembly instructions: One opening is sealed with a plastic filler plug and can be opened using a screwdriver. |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (ULÃ50e) 4X (ULÃ50e) 12 (ULÃ50e) Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
