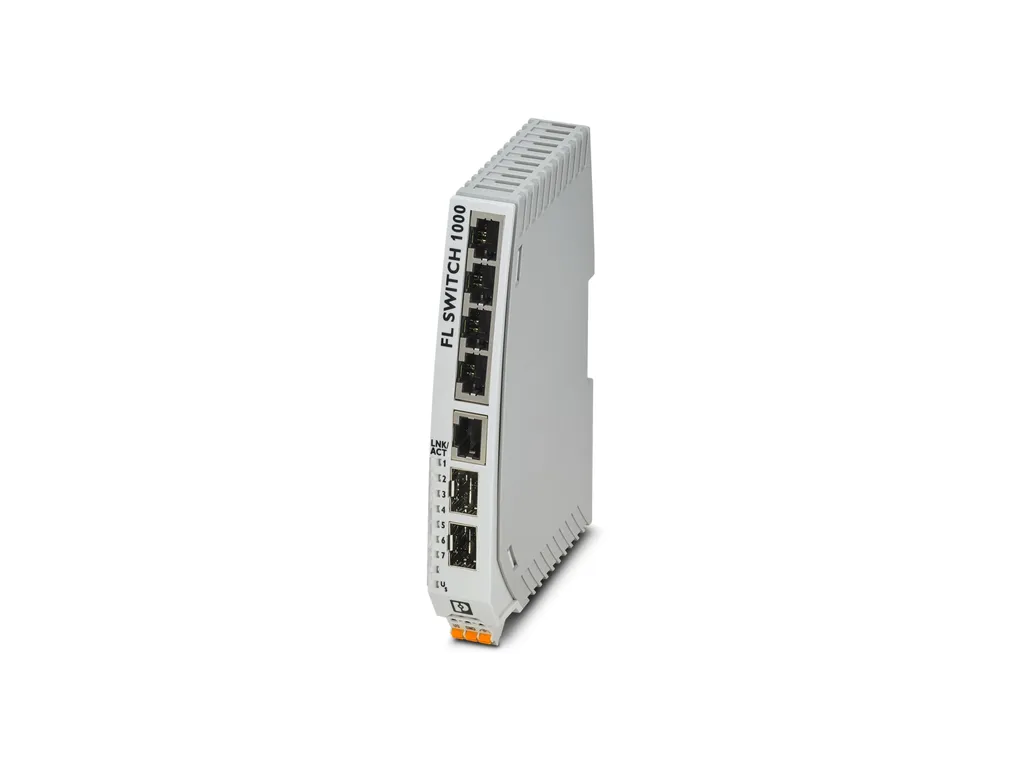

FL SWITCH 1005N - Industrial Ethernet Switch


Dimensions | Width: 22.5 mm Height: 117 mm Depth: 84 mm |
Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
Material specifications | Housing material: Polycarbonate fiber reinforced |
Mounting | Mounting type: DIN rail mounting |
Interfaces | Ethernet (RJ45) Number of interfaces: 5 Connection method: RJ45 Note on the connection method: Auto negotiation and autocrossing Transmission speed: 10/100 Mbps Transmission physics: Ethernet in RJ45 twisted pair Transmission length: 100 m (per segment) Signal LEDs: Data receive, link status No. of channels: 5 (RJ45 ports) |
Product properties | Product type: Switch Product family: Unmanaged Switch 1000 MTTF: 167.2 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) 1627 Years (SNÃ29500 standard, temperatureÃ25°C, operating cycleÃ21%) 1526 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) Switch functions Basic functions: Unmanaged switch Autonegotiation Store and Forward switching mode PROFINET conformance class: Conformance-Class A MAC address table: 2k Status and diagnostic indicators: LEDs: US, link and activity per port Additional functions: 100 BASE-TX/100BASE-FX (IEEE 802.3u) Quality of Service (QoS) prioritization (IEEE 802.1p) Energy-efficient Ethernet (IEEE 802.3az) 10Base-T (IEEE 802.3) Security functions Basic functions: Unmanaged switch Autonegotiation Store and Forward switching mode |
Electrical properties | Maximum power dissipation for nominal condition: 2.64 W Transmission medium: Copper Supply Supply voltage (DC): 24 VÃDC Supply voltage (AC): 24 VÃAC (50/60ÃHz) Supply voltage range: 9 VÃDC ... 32 VÃDC 18 VÃAC ... 30 VÃAC (50/60ÃHz) Power supply connection: Via COMBICON, max. conductor cross section 2.5 mm² Residual ripple: 3.6 VPP (within the permitted voltage range) Max. current consumption: 110 mA (at 9 V DC) Typical current consumption: 19 mA (at 24 V DC) |
Connection data | Connection technology Connection name: Power supply pluggable: yes Power supply Connection method: Push-in spring connection Conductor cross section, rigid: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 2.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² Stripping length: 10 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP30 Ambient temperature (operation): -10°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: 2000 m (maximum) Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) Shock (operation): 30g (ENÃ60068-2-27) Vibration (operation): in acc. with IEC 60068-2-6: 5g, 150 Hz Air pressure (operation): 79 kPa ... 108 kPa up to 2000Ãm above mean sea level (Without derating) Air pressure (storage/transport): 79 kPa ... 108 kPa up to 2000Ãm above mean sea level (Without derating) |
Standards and regulations | Free from substances that could impair the application of coating: In acc. with VW specification |
Approvals | Conformity/Approvals UL, USA / Canada: UL 61010-1, UL 61010-2-201, UL 62368-1 Class I, Div. 2, Groups A, B, C, D, T4 Class I, Zone 2, Group IIC, T4 FCC: Title 47 Part 15 Subpart B:2018 Class A |
EMC data | Conformance with EMC directives: EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A EN 61000-6-2 EN 61000-4-5 (surge) Criterion B EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A EN 61000-6-4 ClassÃA EN 61000-6-4 Conducted noise emission ClassÃA Noise immunity: EN 61000-6-2:2005 Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU Noise emission: EN 61000-6-4:2007Ã+ÃA1:2011 |
System properties | Functionality Basic functions: Unmanaged switch Autonegotiation Store and Forward switching mode |
Signaling | Status display: LEDs: US, link and activity per port |
