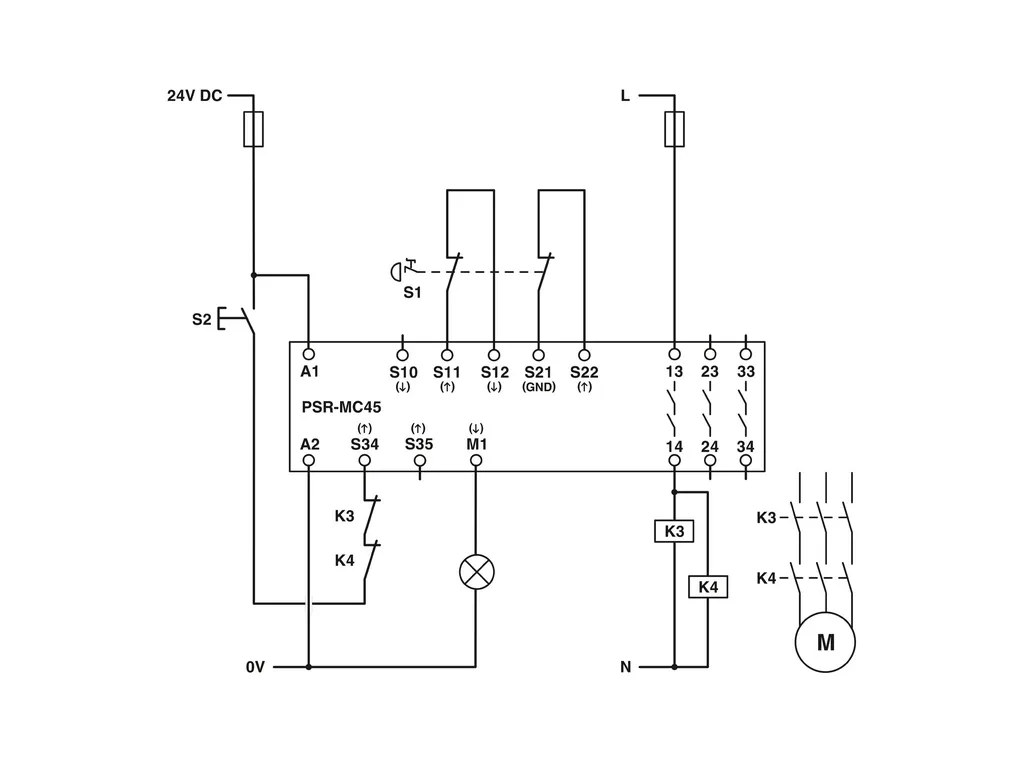

| Product properties | Product type: Safety relays Product family: PSRmini Application: Emergency stop Safety door Transponder Light grid Relay type: Electromechanical relay with force-guided contacts in accordance with IEC/ENÃ61810-3 Times Typical response time: < 100 ms (automatic start) < 100 ms (manual, monitored start) Typ. starting time with Us: < 100 ms (when controlled via A1) Typical release time: < 20 ms (on demand via the sensor circuit) < 20 ms (when controlled via A1; applicative deactivation via A1/A2 is not permitted) Restart time: < 1 s (Boot time) Recovery time: 500 ms (following demand of the safety function) |
| Electrical properties | Maximum power dissipation for nominal condition: 17.21 W (at UBÃ=Ã30ÃVÃ, IL²Ã=Ã72ÃA²) Nominal operating mode: 100% operating factor Air clearances and creepage distances between the power circuits Rated insulation voltage: 250 VÃAC Rated surge voltage/insulation: Basic insulation 4ÃkV between all current paths Basic insulation 4ÃkV between all current paths and housing Supply Designation: A1/A2 Rated control circuit supply voltage US: 19.2 VÃDC ... 30 VÃDC 24 VÃDC -20Ã%Ã/Ã+25Ã% (provide external protection) Rated control supply current IS: typ. 75 mA Power consumption at US: typ. 1.8 W Inrush current: typ. 2.2 A (ÃâtÃ=Ã300Ãõs at Us) Filter time: 1 ms (at A1 in the event of voltage dips at Us) Protective circuit: Serial protection against polarity reversal Suppressor diode 33ÃV |
| Input data | Digital: Sensor circuit (S10, S12, S22) Description of the input: safety-related sensor inputs NPN (S10, S12),ÃPNPÃ(S22) Number of inputs: 3 Input voltage range "0" signal: 0 V ... 5 V (S10, S12) Input voltage range "1" signal: 19.2 V ... 30 V Input current range "0" signal: 0 mA ... 2 mA (S10, S12) Inrush current: < 5 mA (Typically with US at S10/S12, ÃâtÃ=Ã500Ãõs) > -5 mA (typ. with US at S22, ÃâtÃ=Ã500Ãõs) Filter time: max. 3 ms (Test pulse width of low test pulses) > 1 s (Test pulse rate for low test pulse) Where test pulse widthÃ<Ã1Ãms: test pulse rateÃ=Ã5ÃxÃtest pulse width max. 1 ms (Test pulse width, high test pulse) > 100 ms (Test pulse rate, high test pulse) Unless test pulses are safety-related, they should be disabled. Concurrence: âÃà ¾ Max. permissible overall conductor resistance: 150 é Protective circuit: Suppressor diode 38.6ÃV Current consumption: < 4 mA (typically with US at S10/S12) > -15 mA (typically with US at S22/0ÃV) Digital: Start circuit (S34, S35) Description of the input: non-safety-related NPN Number of inputs: 2 Input voltage range "1" signal: 19.2 VÃDC ... 30 VÃDC Inrush current: < 10 mA (typically with US, ÃâtÃ=Ã500Ãõs) Max. permissible overall conductor resistance: 150 é Protective circuit: Suppressor diode 38.6ÃV Current consumption: 2.5 mA (Typically with US at S34) 1 mA (Typically with US at S35) |
| Output data | Relay: Enabling current paths (13/14, 23/24, 33/34) Output description: 2 N/O contacts each in series, safety-related, floating Number of outputs: 3 Contact switching type: 3 enabling current paths Contact material: AgSnO2 Switching voltage: min. 5 V AC/DC max. 250 V AC/DC (Observe the load curve) Switching capacity: min. 50 mW Inrush current: min. 10 mA AC/DC max. 6 A Switching capacity in accordance with IEC 60947-5-1: 5 A (24ÃV (DC13)) 5 A (250ÃV (AC15)) Limiting continuous current: 6 A Sq. Total current: 72 A2 (observe derating) Switching frequency: 0.5 Hz Mechanical service life: 10x 106 cycles Output fuse: 6 A gL/gG Signal: M1 Output description: PNP non-safety-related Number of outputs: 1 Voltage: approx. 23 VÃDC (UsÃ-Ã1ÃV) Current: max. 100 mA Maximum inrush current: 1 A (ÃâtÃ=Ã5Ãms at Us) Switching frequency: 0.5 Hz (ohmic) Protective circuit: 33 V suppressor diode Short-circuit protection: Yes |
| Connection data | Connection technology pluggable: yes Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6) Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6) Conductor cross-section AWG: 24 ... 16 Stripping length: 8 mm |
| Signaling | Status display: 2 x green LEDs Operating voltage display: 1 x green LED |
| Dimensions | Width: 22.5 mm Height: 117.4 mm Depth: 114.5 mm |
| Material specifications | Housing material: Polyamide |
| Characteristics | Safety data Stop category: 0 Safety data: ENÃISOÃ13849 Category: 4 Performance level (PL): e (5ÃAÃDC13; 8760Ãswitching cycles/year or 5ÃAÃAC15; 2190Ãswitching cycles/year) Safety data: IEC 61508 - High demand Safety Integrity Level (SIL): 3 Safety data: IEC 61508 - Low demand Safety Integrity Level (SIL): 3 Safety data: ENÃIEC 62061 Safety Integrity Level (SIL): 3 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Min. degree of protection of inst. location: IP54 Ambient temperature (operation): -40°C ... 60°C (observe derating) Ambient temperature (storage/transport): -40°C ... 85°C Maximum altitude: ââ°¤ 2000 m (Above sea level) Max. permissible humidity (storage/transport): 75 % (on average, 85% infrequently, non-condensing) Max. permissible relative humidity (operation): 75 % (on average, 85% infrequently, non-condensing) Shock: 15g for ÃâtÃ=Ã11Ãms (continuous shock: 10g for ÃâtÃ=Ã16Ãms) Vibration (operation): 10ÃHzÃ...Ã150ÃHz, 2g |
| Approvals | CE Identification: CE-compliant |
| Standards and regulations | Air clearances and creepage distances between the power circuits Standards/regulations: ENÃ60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: See derating curve Mounting position: vertical or horizontal Connection method: Push-in connection |
