1079548 PHOENIX CONTACT - Technology Bsa

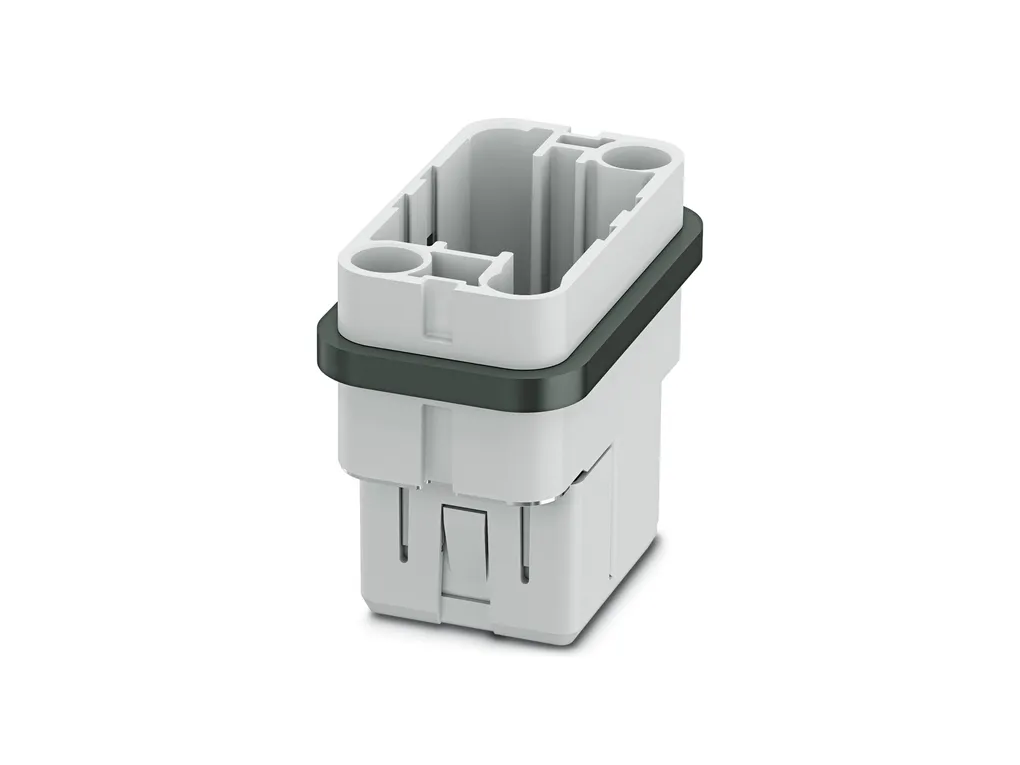

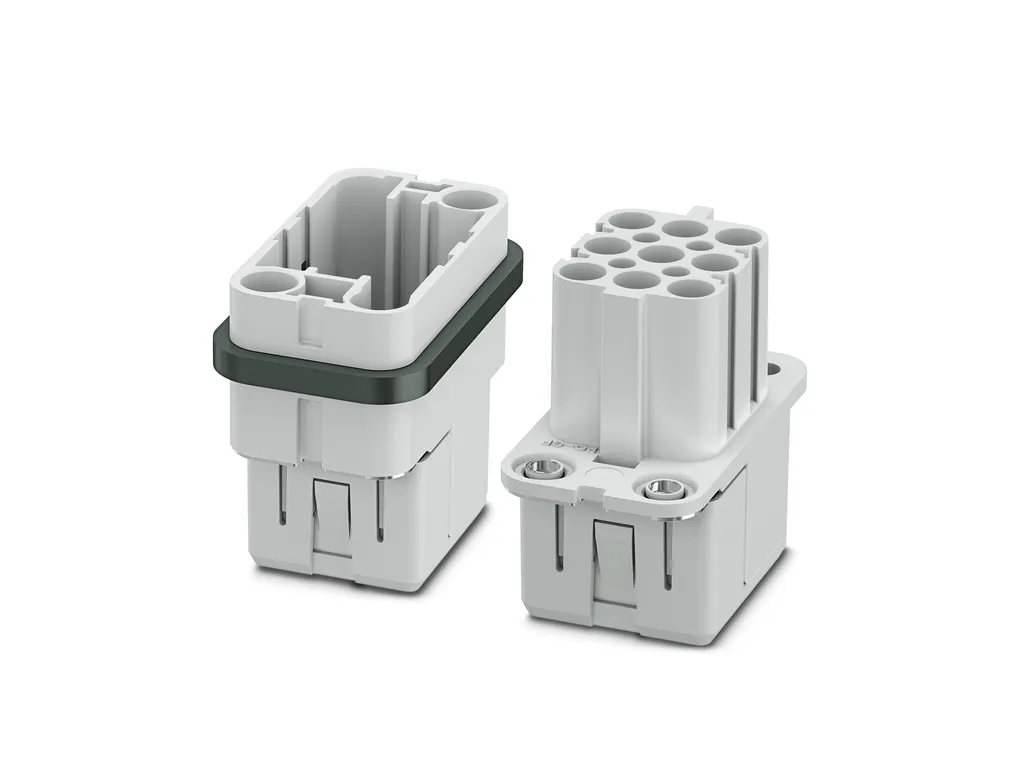

HC-COM-Q08-I-CT-M - Contact insert

Contact insert, number of positions: 8+PE, size: COM, power contacts: 8, control contacts: 0, number of connections per position: 1, Pin, Crimp connection, 320 V, 16 A, 0.5 mm²...4 mm², application: Power

Product Code: 1079548 Copia - Copy

Partner cod.: 1079548 Copia - Copy

PHOENIX CONTACT

Notes	General: Connectors may be operated only when there is no load/voltage.
Mounting	Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required
Product properties	Type: COM Product type: Contact insert with a fixed no. of positions Number of positions: 8 Connection profile: 8+PE Contact numbering: 1 - 8 Application: Power Number of connections per position: 1 No. of power contacts: 8 No. of control contacts: 0 Contact material type: turned Series: HC-COM Insulation characteristics Overvoltage category: III Degree of pollution: 3
Dimensions	Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22504/full/b250?format=jpg Width: 25.6 mm Height: 48.05 mm Length: 45 mm Mechanical characteristics Contact diameter: 2.5 mm
Connection data	Connection technology Connection technology: Crimp connection Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.5 mm² ... 4 mm² Connection cross section AWG: 20 ... 12 Stripping length of the individual wire: 7.5 mm (Power)
Electrical properties	Rated voltage (III/2) contacts: 500 V Rated voltage (III/3): 320 V Rated voltage for power contacts: 500 Rated surge voltage: 6 kV Rated current: 16 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Material specifications	Flammability rating according to UL 94: V0 Seal material Profile gasket: NBR Contact material: Copper alloy Contact surface material: Ag (alternatively Au) Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts)
Standards and regulations	Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
