| Notes | General: Refer to the data sheet for the range in the download area. |
| Product properties | Product type: Filler plug Product family: EH...F-FP Type: Filler plug for unoccupied terminal points (flat design) Housing type: DIN rail housing Ventilation openings present: yes Housing series: EH |

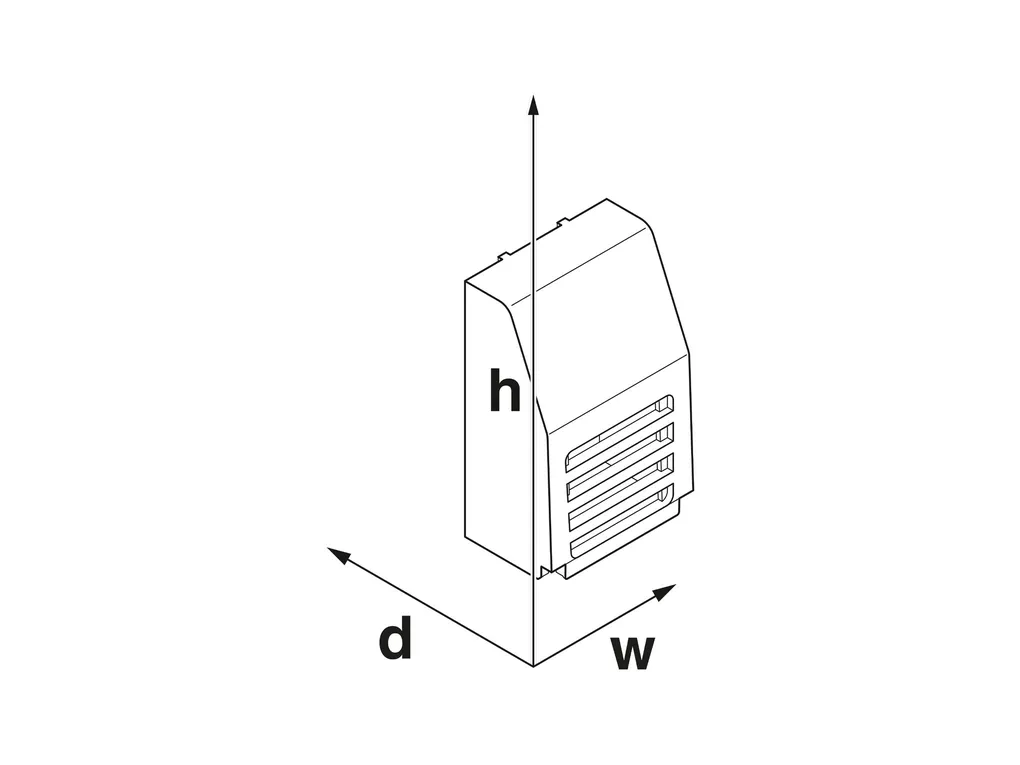

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e2af21d47c98474f940377478681e45a/-S204x204-FJPG Width: 16.3 mm Height: 33.39 mm Depth: 13.67 mm |
| Material specifications | Color: black (9005) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: ABS-PC |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 80°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 80°C Relative humidity (storage/transport): 95 % |
| PCB data | Type of PCB mount: Slot |
| Mounting | Mounting type: Latching with upper housing part Mounting position: Vertical (horizontal DIN rail) |
